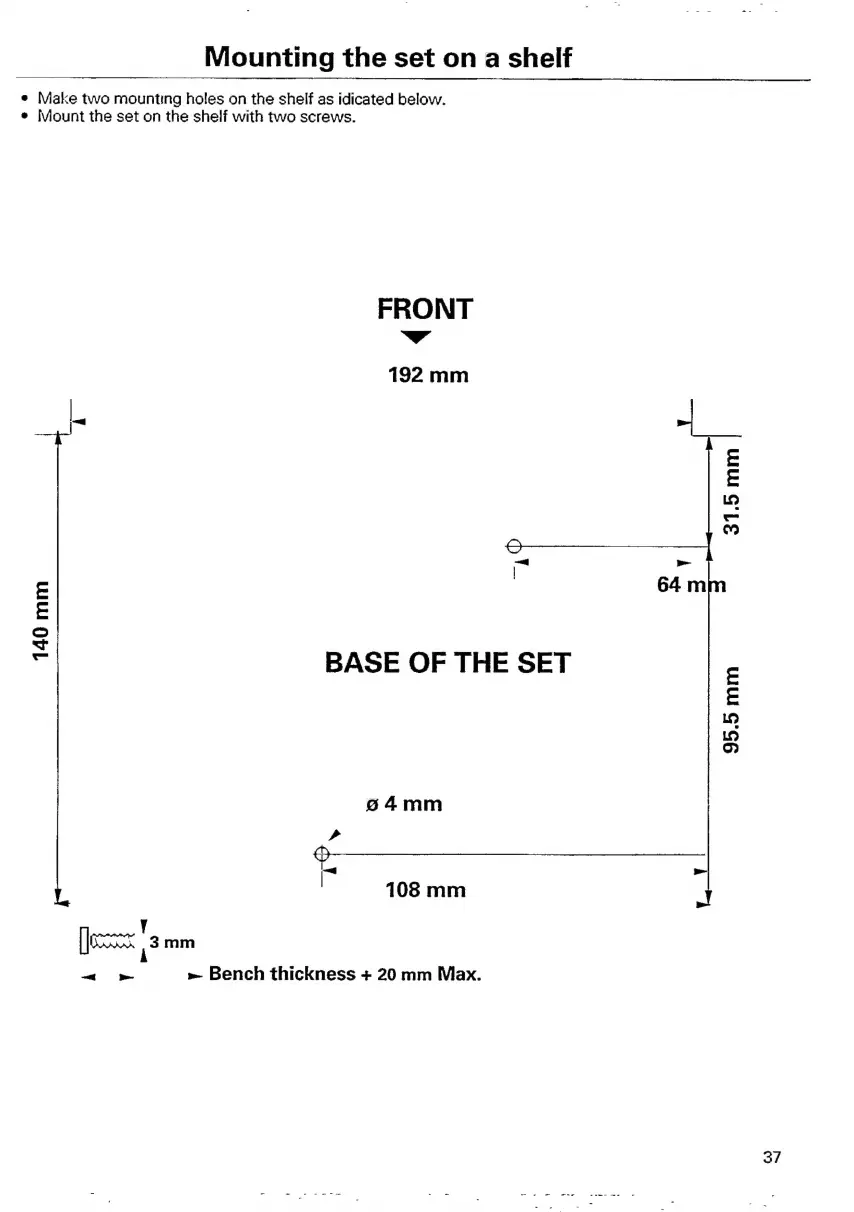

Mounting the set on a shelf
e Make two mounting holes on the shelf as idicated below.
e Mount the set on the shelf with two screws.
FRONT
Y
192 mm
E
E
=
= BASE OF THE SET
o 4 mm
^
T
| 108 mm
[los E mm
— — » Bench thickness + 20 mm Max.
37
