Philips AX3200 - Exploded View; Mechanical Partslist

5 - 1 5 - 1
402
403
404
406
407
409
411
408
412
413
414
419
418
417
416
421
422
423
screw 1.7x10 CR
plastite (6x)
screw 1.4x3
plastite ( 11x)
401
424

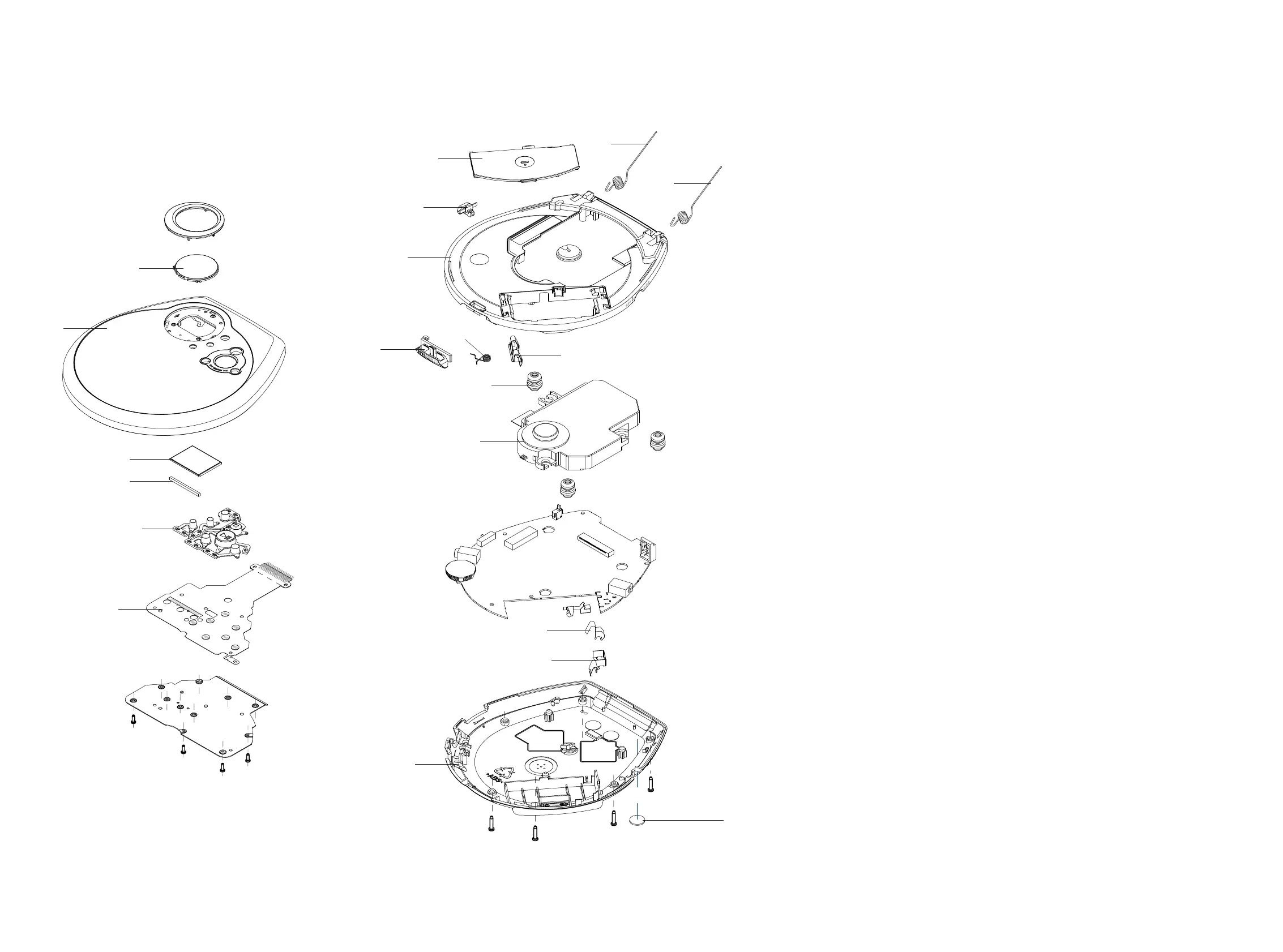

EXPLODED VIEW DIAGRAM - CABINET MECHANICAL PARTSLIST - CABINET
401 3140 117 66771 LCD LENS-PRT
402 3140 117 639 8 1 CD-DOOR ASSY-1
403 3140 110 5168 0 LCD PANEL
404 3140 114 468 31 ZEBRASTRIP
406 3140 117 6678 1 KNOB SET-PNT
407 3140 113 33020 KEY BOARD ASSY
408 3103 307 9 9 670 DOOR-BATTERY-LAC
409 3140 111 01371 CD-DOOR-SPRING-LEFT
411 3140 111 0138 1 CD-DOOR-SPRING-RIGHT
412 3103 304 69 570 SLIDER-RESUME
413 3103 304 69 540 COVER-BOTTOM
414 3103 304 69 58 0 SLIDER-OPEN
416 3103 301 06500 SPRING-SLIDER-OPEN-2
417 3103 301 4518 0 SPRING-BATTERY-SHORT-2
418 3103 304 69 59 0 SUSPENSION
419 3103 309 0548 0 CD DA23ZPH
421 3103 301 45410 SPRING-BATTERY-MINUS
422 3103 301 45420 SPRING-BATTERY-PLUS
423 3103 307 9 9 620 BOTTOM-ASSY-1
424 48 22 462 418 19 RUBBER FOOT
9 08 2 100 00615 HEADPHONE HE205/77
3103 304 70250 BELT CLIP
Note: Only these parts mentioned in the list are
normal service parts.
