Philips AX3217 - Exploded View Diagram - Cabinet; Mechanical Parts List - Cabinet

5 - 1 5 - 1
402
403
404
406
407
409
411
408
412
413
414
419
418
417
416
421
426
422
423
screw 1.7x10 CR
plastite (6x)
screw 1.4x3
plastite ( 11x)
401
424

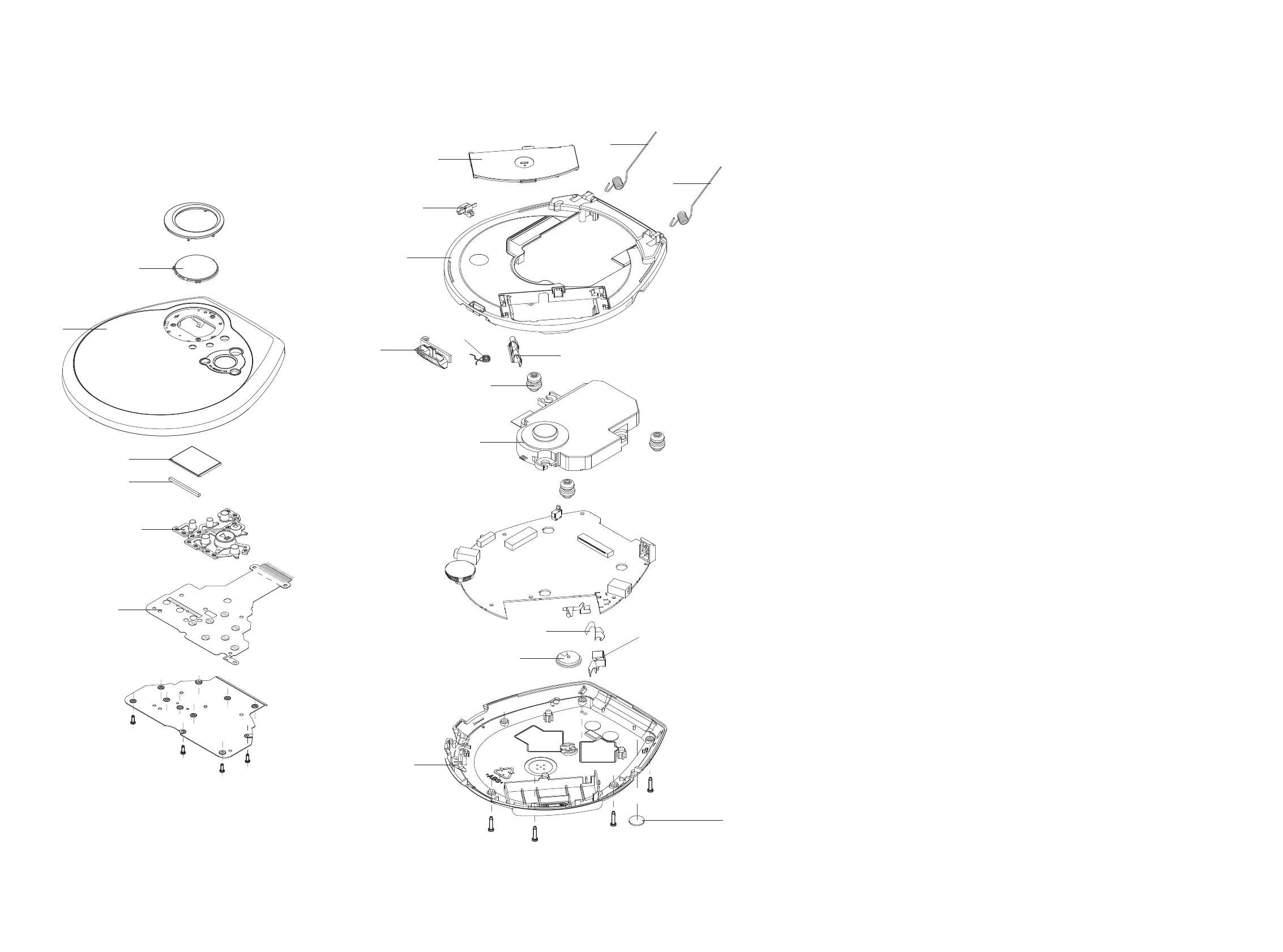

EXPLODED VIEW DIAGRAM - CABINET MECHANICAL PARTSLIST - CABINET
401 3140 117 66771 LCD LENS-PRT
402 3140 117 68151 CD-DOOR ASSY AX3200/00C
402 3140 117 63981 CD-DOOR ASSY AX3200/00Z
402 3140 117 68151 CD-DOOR ASSY AX3201/00C/01/05Z/10/16
402 3140 117 64471 CD-DOOR ASSY AX3202/00C
402 3140 117 68151 CD-DOOR ASSY AX3205/10/16
402 3140 117 64471 CD-DOOR ASSY AX3211/17
402
402
402
402
402
402
402
402
3140 117 66871 CD-DOOR ASSY AX3212/17
403 3140 110 51680 LCD PANEL
404 3140 114 46831 ZEBRASTRIP
406 3140 117 66781 KNOB SET-PNT
407 3140 113 33020 KEY BOARD ASSY
408 3103 307 99670 DOOR-BATTERY-LAC
409 3140 111 01371 CD-DOOR-SPRING-LEFT
411 3140 111 01381 CD-DOOR-SPRING-RIGHT
412 3103 304 69570 SLIDER-RESUME
413 3103 307 99611 CABINET-ASSY-1
413 3103 307 99711 CABINET-ASSY-2
3103 304 69540 COVER-BOTTOM
414 3103 304 69580 SLIDER-OPEN
416 3103 301 06500 SPRING-SLIDER-OPEN-2
417 3103 301 45180 SPRING-BATTERY-SHORT-2
418 3103 304 69590 SUSPENSION
419 3103 309 05480 CD DA23ZPH
421 3103 301 45410 SPRING-BATTERY-MINUS
422 3103 301 45420 SPRING-BATTERY-PLUS
423 3103 307 99620 BOTTOM-ASSY-1
424
426
4822 462 41819 RUBBER FOOT
Note: Only these parts mentioned in the list are
normal service parts.
3140 117 69191
CD-DOOR ASSY AX3217/17
3140 117 69201
CD-DOOR ASSY AX3218/17
3140 117 69211 CD-DOOR ASSY AX3219/17
3140 117 70721 CD-DOOR ASSY AX3221/17
3140 117 70731 CD-DOOR ASSY AX3222/17
3140 117 70741 CD-DOOR ASSY AX3223/17
3140 117 70751 CD-DOOR ASSY AX3224/17
