Philips AX3300 - Exploded View; Mechanical Partslist

5 - 1 5 - 1
418
408
413
411
421
419
414
416
417
screw 1.7x9 CR
plastite (3x)
screw 1.7x6 CR
plastite (2x)
407
401
403
404
402
406
409
410
412
422
screw 1.4x2.5
plastite ( 10x)

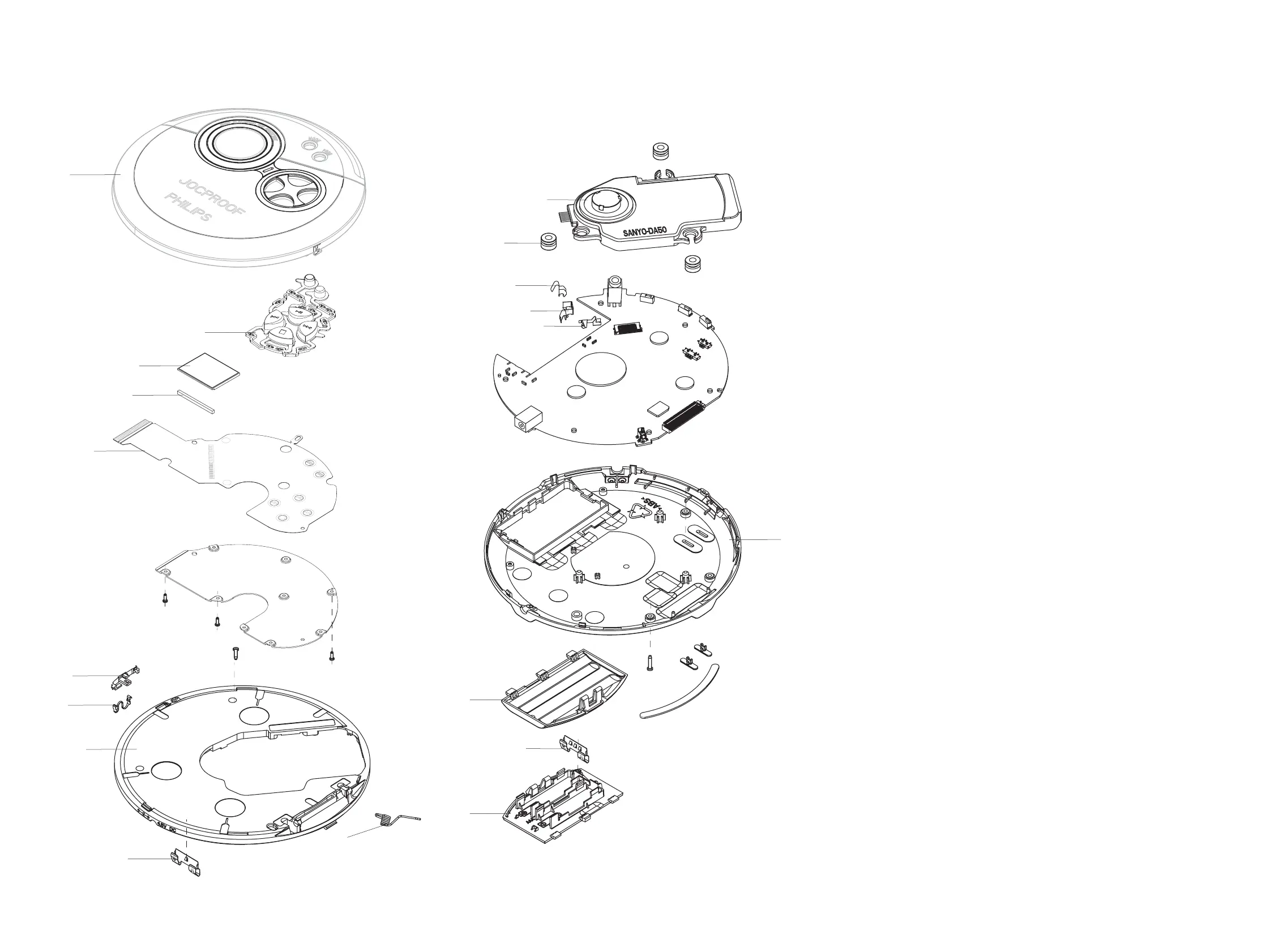

EXPLODED VIEW DIAGRAM
401 3140 117 72271 CD DOOR ASSY AX3301/AX3306 (silver)
401 3140 117 70181 CD DOOR ASSY AX3300/AX3303/AX3305/AX3311(blue)
401 3140 117 72351 CD DOOR ASSY AX3312 (red)
401 3140 117 72371 CD DOOR ASSY AX3315 (purple)
402 3140 117 70171 KEY SET PNT
403 3140 110 52011 LCD
404 3140 114 62241 ZEBRA STRIP
406 3140 113 33461 MEMBRANE-ETERNITY
407 3140 117 71921 SLIDER-DOOR-OPEN
408 3140 111 22611 SPRING-SLIDER-OPEN
409 3140 117 71901 MIDDLE-CABINET-ASSY
410 3140 111 22621 SPRING BATTERY-SET +/-
411 3140 111 23231 CD DOOR SPRING
412 2422 549 45374 CD DRIVE DA50
413 3140 114 61761 DAMPER
414 3140 111 22581 SPRING BATTERY, -VE
416 3140 111 22571 SPRING BATTERY, +VE
417 3140 111 22600 SPRING BATTERY CHARGE
418 3140 117 71611 BOTTOM ASSY
419 3140 117 72151 DOOR-BATTERY-2A
421 3140 111 22631 SPRING BATTERY-DOOR +/-
422 3140 117 71631 DOOR-BATT-3A-ASSY
Note: Only these parts mentioned in the list are
normal service parts.
MECHANICAL PARTSLIST - CABINET
