QUICK START MISE EN SERVICE RAPIDE

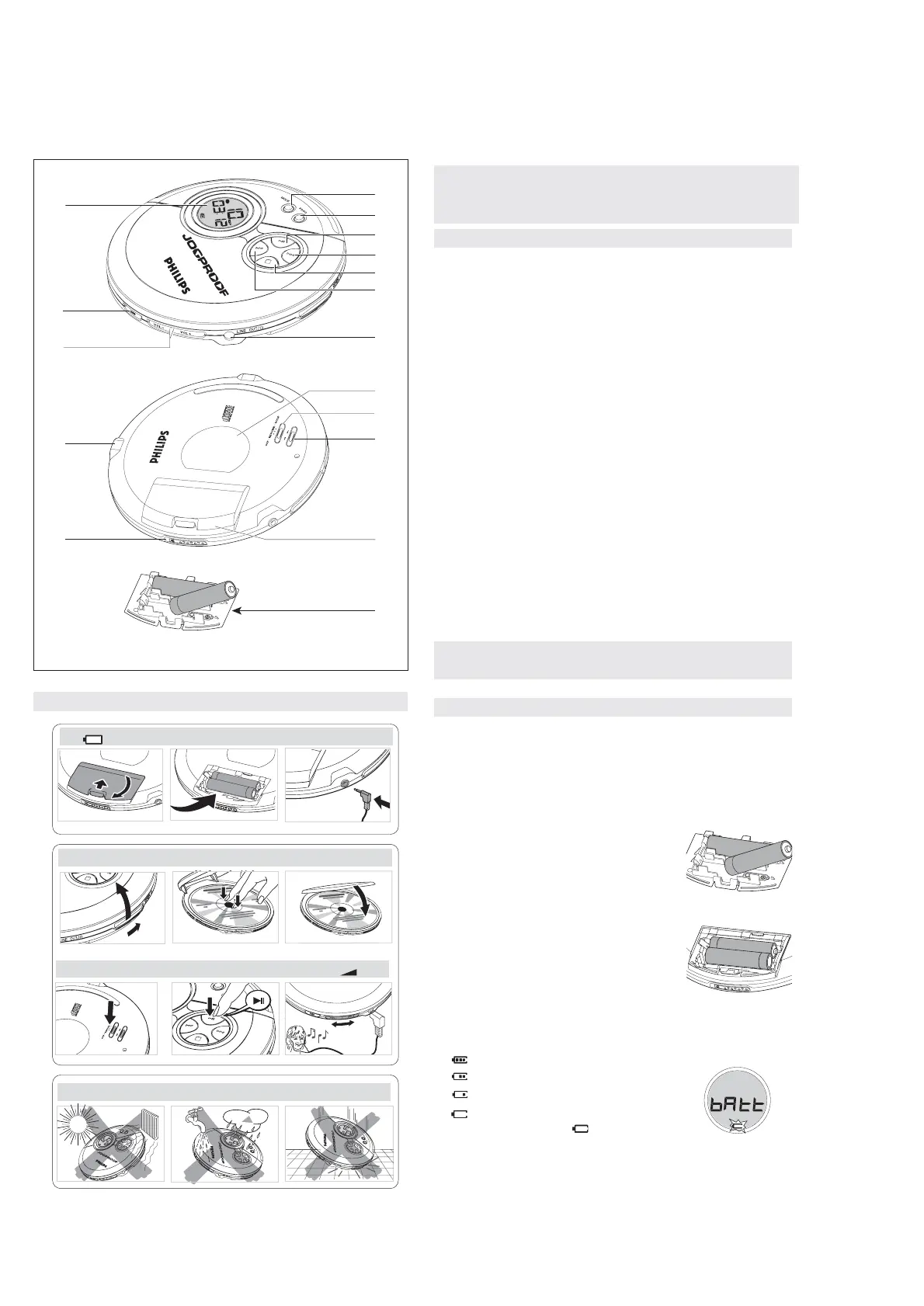

CONNECTIONS AND CONTROLS
English CONTROLS / POWER SUPPLY
C ontrols ( see figure 1 )
1 LINE OUT/p........3.5 mm headphone socket, socket to connect the player to
another audio input of an additional appliance
2 .......................skips and searches CD tracks backwards
3 9.........................stops CD play, clears a program or switches the player off
4 §
§
.......................skips and searches CD tracks forwards
5 2; ......................switches the player on, starts or pauses CD play
6 PROG...................programs tracks and reviews the program
7 MODE .................selects the different playing possibilities: shuffle,
shuffle repeat all, repeat, repeat all and SCAN
8 ............................display
9 DBB.....................switches the bass enhancement on and off. This button also
switches acoustic feedback (the beep) on/off when it is
pressed for more than 2 seconds
0 VOL
−/
−/ + +
..............adjusts the volume
! 4.5V DC...............socket for external power supply
@ OPEN 2 ..............opens the CD lid
# ESP ON /
POWER SAVE .......to select between the battery powersave mode and
Electronic Skip Protection (ESP). ESP ensures continuous
CD playback regardless of vibrations and shocks
$ OFF......................switches RESUME and HOLD off
RESUME .............stores the last position of a CD track played
HOLD...................locks all buttons
% ............................typeplate
^ ............................battery compartment
& ............................AAA battery door
This set complies with the radio interference requirements of the
European Union.
Batteries (supplied or optionally available)
For convenience, this model is designed with 2 different detachable battery
doors. This allows you to operate the player using 2 choices of battery size.
You can use the following batteries with this CD-player:
• alkaline batteries type AAA (LR03, UM4) or AA (LR6, UM3) preferably
Philips.
Notes:–
Old and new or different types of batteries should not be combined.
– Remove batteries if they are empty or if the player is not going to be used for
a long time.
Inserting AAA (LR03, UM4) or AY 3363 batteries
1 Open the AAA battery door.
2 Insert AAA batteries as shown onto the back of the
door.
3 Replace the battery-loaded AAA door back onto the
set.
Inserting AA (LR6, UM3) batteries
To double playback time, insert AA batteries into the
battery compartment and use the AA marked battery
door.
• Open the battery compartment and insert either 2
normal or alkaline batteries.
Battery indication
The approximate power level of your batteries is shown in the display.
Battery full
Battery two-thirds full
Battery one-third full
Battery dead or empty. When the batteries are
dead or empty, the symbol flashes, bAtt is
displayed, and the beep tone sounds repeatedly.
-
+
-
+
AA
SIZE
LR6 / UM3
-
+
+
L
R
03
/
AA
A
/
U
M
4
AAA (LR03, UM4)
AA (LR6, UM3)
