Philips AX7201 - Exploded View; Mechanical Partslist

MECHANICAL PARTSLIST
1 3103 308 13620 CD-DOOR ASSEMBLY
2 3103 308 13631 CABINET ASSEMBLY
3 3103 301 06710 SPRING-OPEN CD DOOR
5 3103 308 13641 BOTTOM ASSEMBLY
8 3103 304 73581 SUSPENSION
1001.2 3103 301 46091 SPRING-BATTERY-PLUS
1001.3 3103 301 46081 SPRING-BATTERY-MINUS
1101 3103 309 05440 CD-DRIVE KSM1000
8001 3103 308 93080 FLEXFOIL CABLE, 14P, 83mm AD
5-1 5-1
EV AX7201, 021105
2
3
8
1
1101
8001
3x
1001.2
1001.3
KSM1000
M1.7x6
4x
Pl. 1.7x6
4x
501
Screw Hinge
2x
5
+
-
open
resume
502
506
507
504
503
508
509
511
512

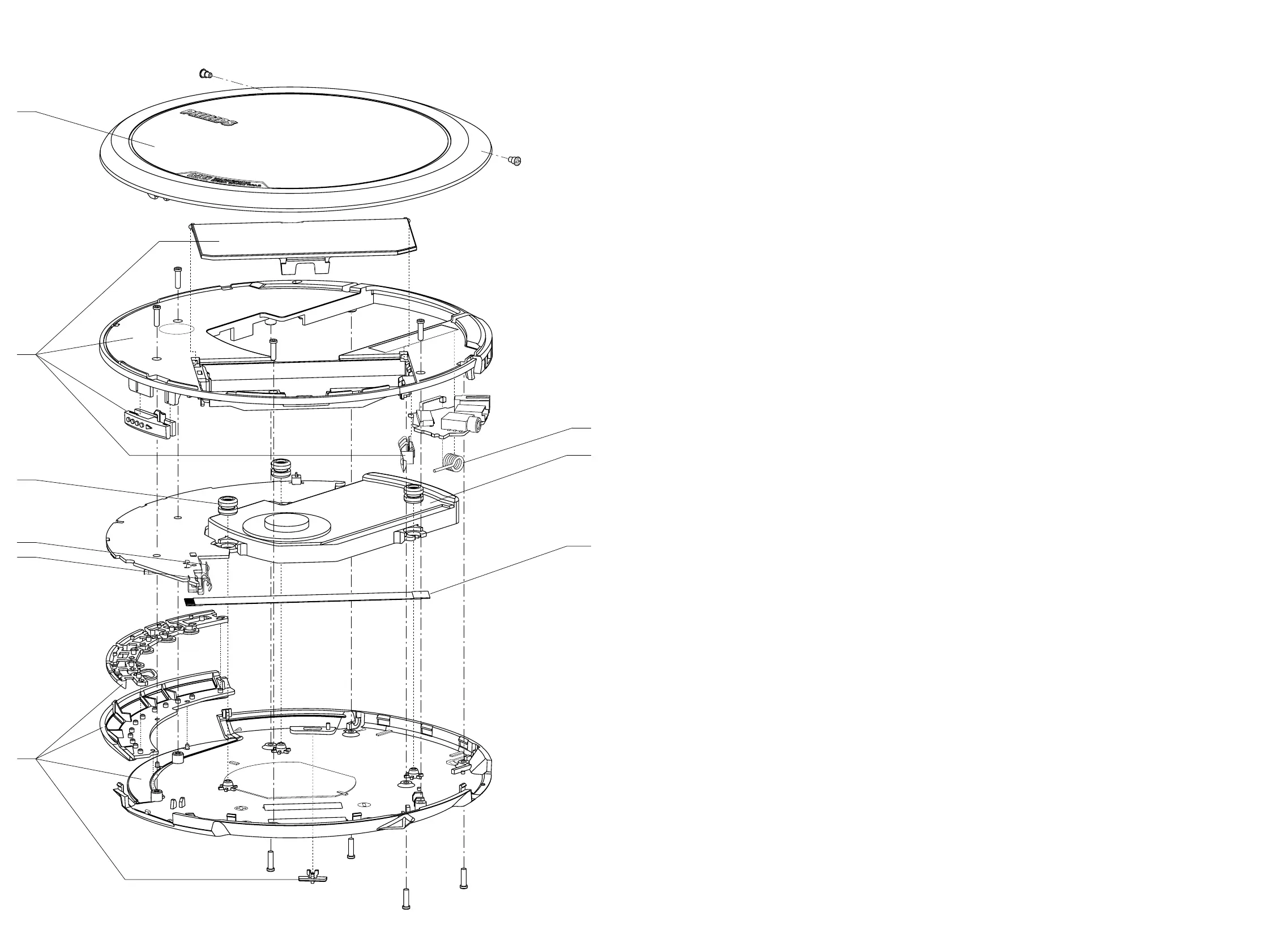

EXPLODED VIEW
