Philips AZ 2048 - Disassembly Diagram

A2
A1 (x9)
B3(x3)
C4 (x2)
C5 (x4)
D6 (x4)
E7 (x6)

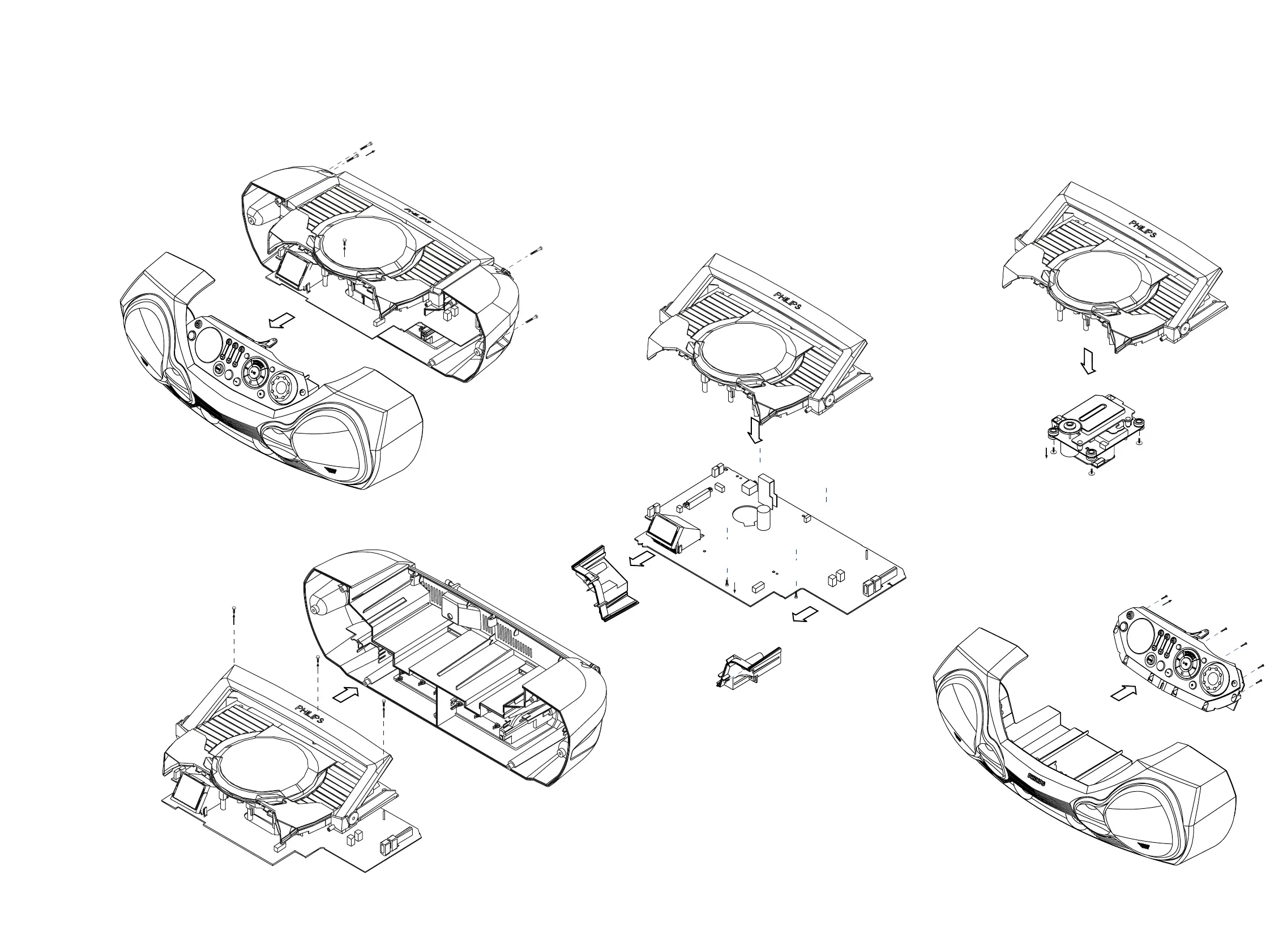

A. REMOVE FRONT CABINET ASSEMBLY
- REMOVE SCREWS A1 (3X20) 9 PCS.
- REMOVE SCREW A2 (3X10) 1 PC
(INSIDE CD DOOR)
E. REMOVE CD PANEL-FRONT ASSEMBLY
- REMOVE SCREWS E7 (2.5X10) 6 PCS.

B. REMOVE BACK CABINET ASSEMBLY.
- REMOVE SCREWS B3 (3X10) 3 PCS. 
C. REMOVE COMBI BOARD ASSEMBLY
- REMOVE SCREWS C4 (3X10) 2 PCS.
- REMOVE FIXING BRACKETS
- REMOVE SCREWS C5 (3X10) 4 PCS.
D. REMOVE DECK MECHANISM 
- REMOVE SCREWS D6 (2.5X10) 4 PCS.
- REMOVE CD DECK
4 - 14 - 1
DISASSEMBLY DIAGRAM
