Philips AZ 2048 - Mechanical Partslist

12 - 1 12 - 1
6
@
@
4
4
3
3
6
6
(2x)
#
4
9
6
SCREW LIST :
M2x6
T2 x 8
T2 x 10
T2.5 x 10
T3 x 8
T3 x 10
T3 x 12
T3 x 16
T3 x 20
T3 x 32
C P/W 2.5 x 10
T P/W 3 x 10
T P/W 3 x 16
1
2
3
4
5
6
7
8
9
0
!
@
#
(4x)
(4x)
(9x)
1011
1005
! (4x)
! (2x)
!
(4x)
(4x)
(5x)
(13x)
(6x)
401
402
1007
1008
1009
1010
1404
1006
403
502
503
407
426
427
424
423
422
421
419
416
417
414
408
408
409 (x2)
411
418
413
412
404

406



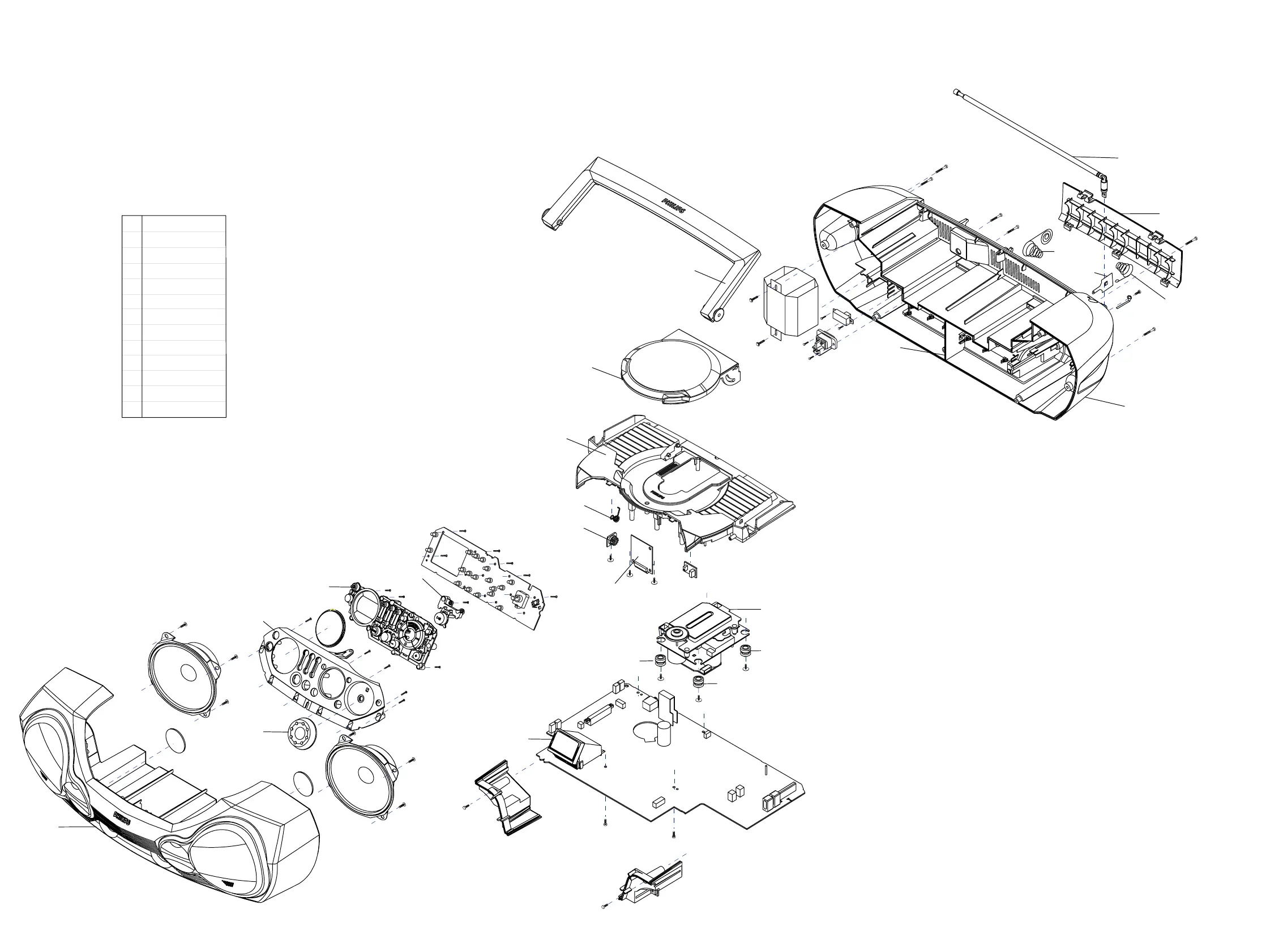

EXPLODED VIEW DIAGRAM - CABINET
MECHANICAL PARTSLIST - CABINET
401 3140 117 63260 FRONT CABINET-GRILL ASSY
402 3140 117 62470 CD PANEL-FRONT ASS'Y
403 3140 114 39850 KNOB-VOLUME
404 3140 114 41440 WINDOW KEYSETS
406 3140 114 44150 CD PLAY KEY
407 3140 114 41840 BRACKET-LCD
408 4822 529 10387 DAMPER - RUBBER (40 DEG)
409 4822 529 10386 DAMPER - RUBBER (30 DEG)
411 3103 309 05410 CD MCD2-SC ASSY
413 4822 529 10322 DAMPER ASSY
414 3140 111 01260 SPRING-CD DOOR
416 3140 117 62480 TOP CABINET ASS'Y
417 3140 114 41460 DOOR-CD
418 3140 114 44290 HANDLE
419 3140 114 39890 COVER BASS
421 3140 117 62490 REAR CABINET ASS'Y (-/00)
421 3140 117 62650 REAR CABINET ASS'Y (-/01)
422 3140 111 01140 SPRING-COMPRESSION(-)
423 3140 111 21320 CONTACT PLATE
424 4822 492 51733 SPRING
426 3140 114 41420 DOOR-BATTERY
427 3140 118 71810 TELESCOPIC AERIAL
412 3103 308 66770 PBAS MP3CD2002 TXT
Note
:
Only these parts mentioned in the list are
normal service parts.
