Philips AZ1010 Service Manual

3-2
CS 49 111

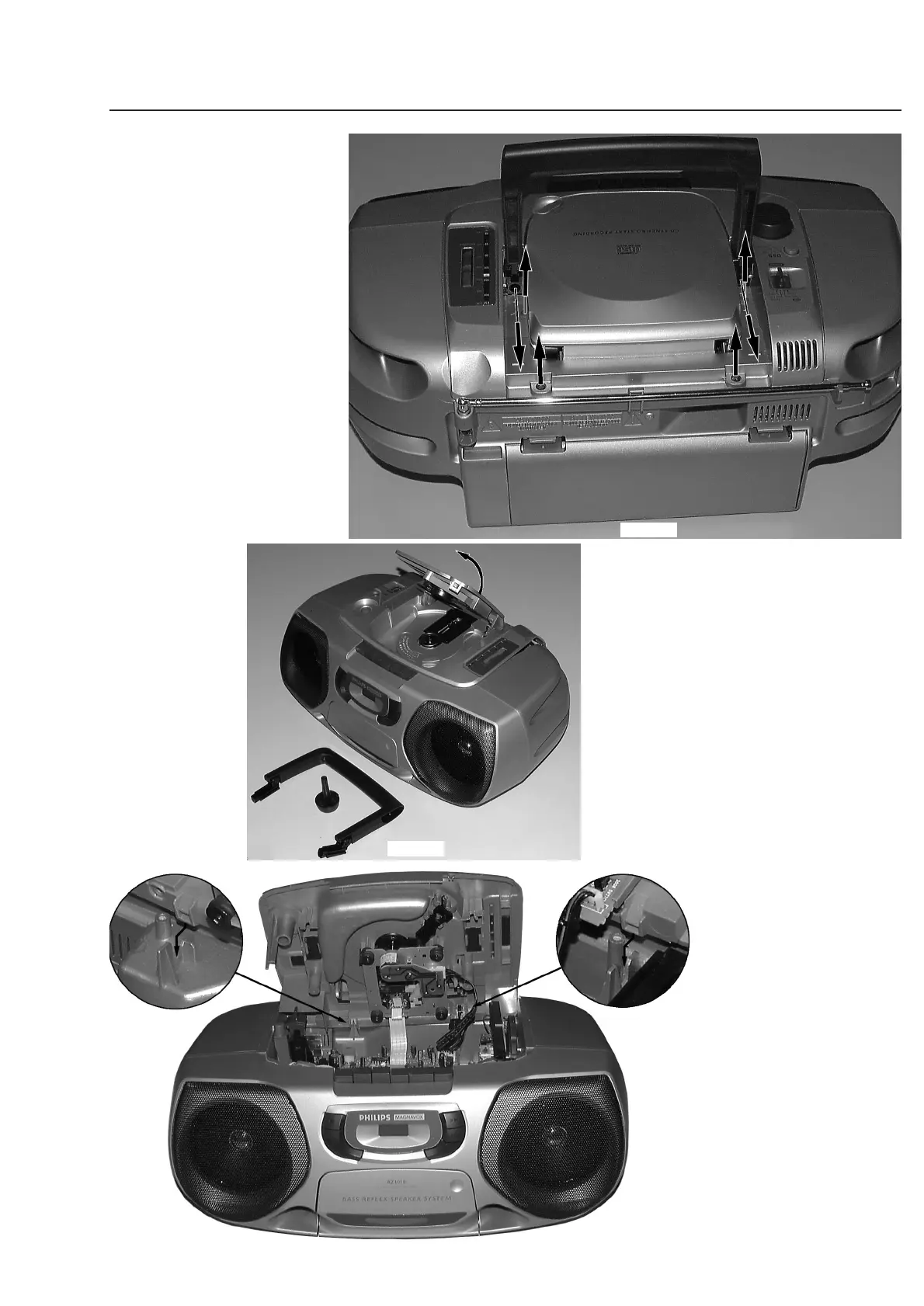

picture 5
picture 6
picture 7
• Loosen 6 screws as shown in
picture 5.
• Remove handle by pulling it
backwards.
• Pull volume knob off.
• Pull Top cabinet on rear side up first.
• Move it backwards to release lugs on front
side.
• Pull Top cabinet up.
Attention: Take care of flex wire to CD drive!
• Put top cabinet in rest position as shown in
picture 7.
DISMANTLING INSTRUCTIONS
Dismantling the Top Cabinet
