Philips AZ1010 Service Manual

3-3
CS 49 112
• Loosen 9 screws as shown in picture 10.
• Plug cables to front-board, tape transport and transformer off.
• Pull front- and rear cabinet apart.
DISMANTLING INSTRUCTIONS
Separation Front - Rear Cabinet
• Dismantle top cabinet as described page before.
• Remove cassette door as described in chapter 3-1.
• Loosen 4 screws as shown in picture 8.
• Put ornamental cover away.
• Fetch tape transport through cassette compartment out as
shown in picture 9.
For service position see chapter
SERVICE HINTS.
Dismantling of the Tape Transport

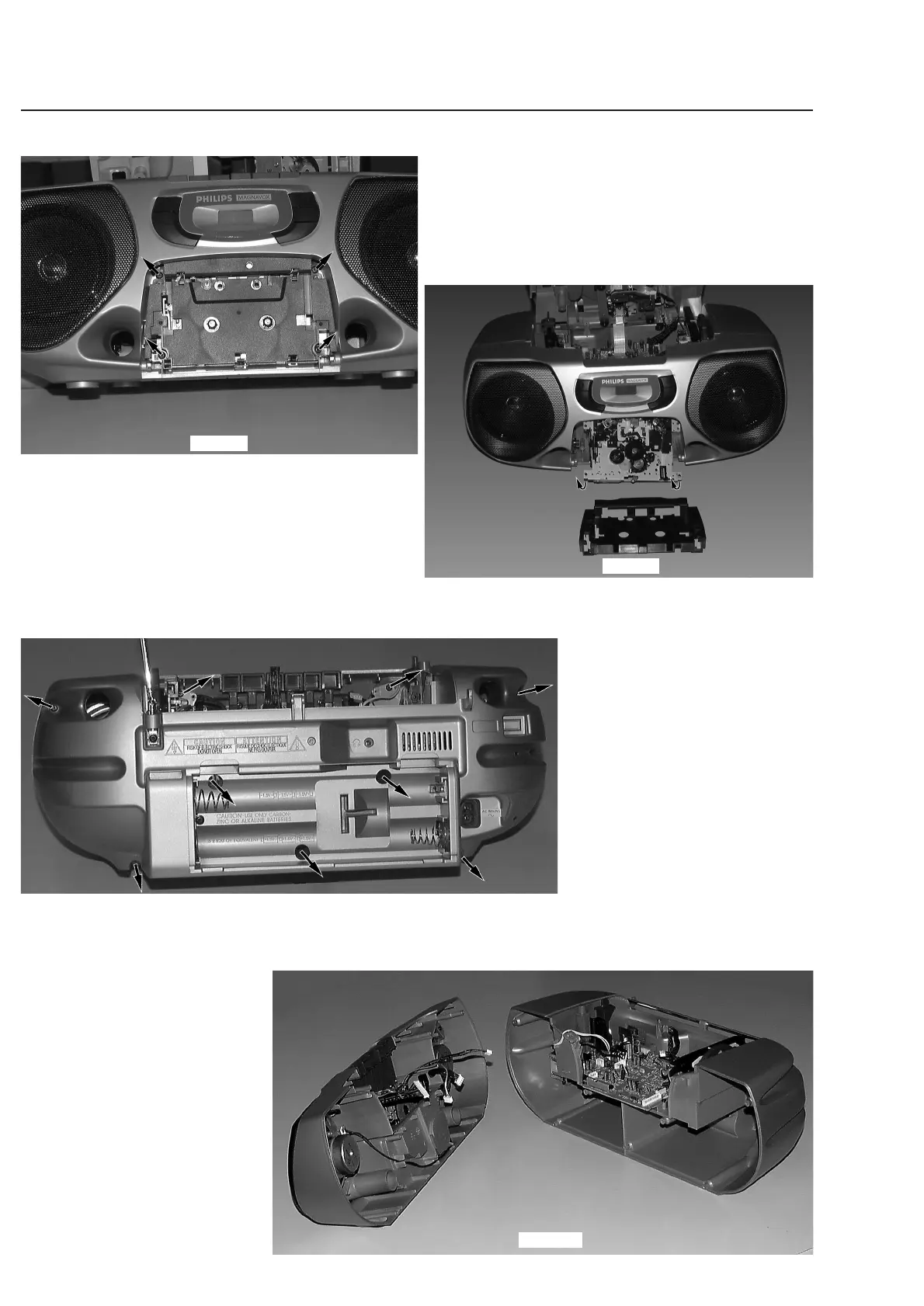

picture 9
picture 10
picture 11
picture 8
