Philips AZ1065 - Disassembly Instructions; Cabinet Assembly Removal

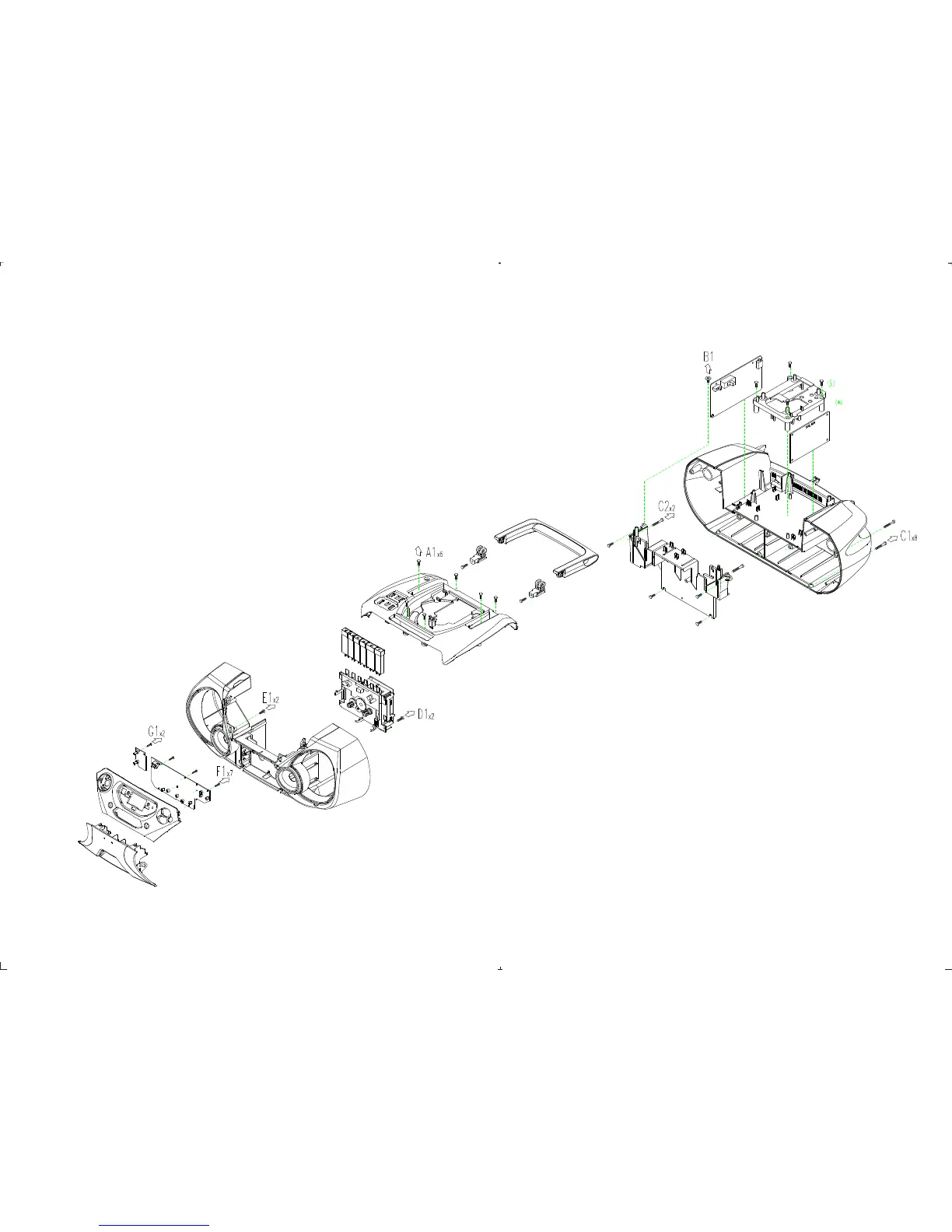

DISASSEMBLY DIAGRM
4-1 4-1
PCS 107 119
A. To remove Top Cabinet Assy
B. To remove AF Board
C. To remove Rear Cabinet
D. To remove Tape Deck
E. To remove Front Panel Assy
F. To remove Front Board
G. To remove Volume Board
