Philips AZ5155/01 - Disassembly Diagram - Cabinet Components; Removal of Cabinet Parts

4 - 14 - 1
D1
x4
x9
A1
A2
x2
A3
x2
x4
B1
x2
C1
x3
E1
x2
E2
x4
F1
G1
x4
H1
x4
H2
x5
x2
I1
F2

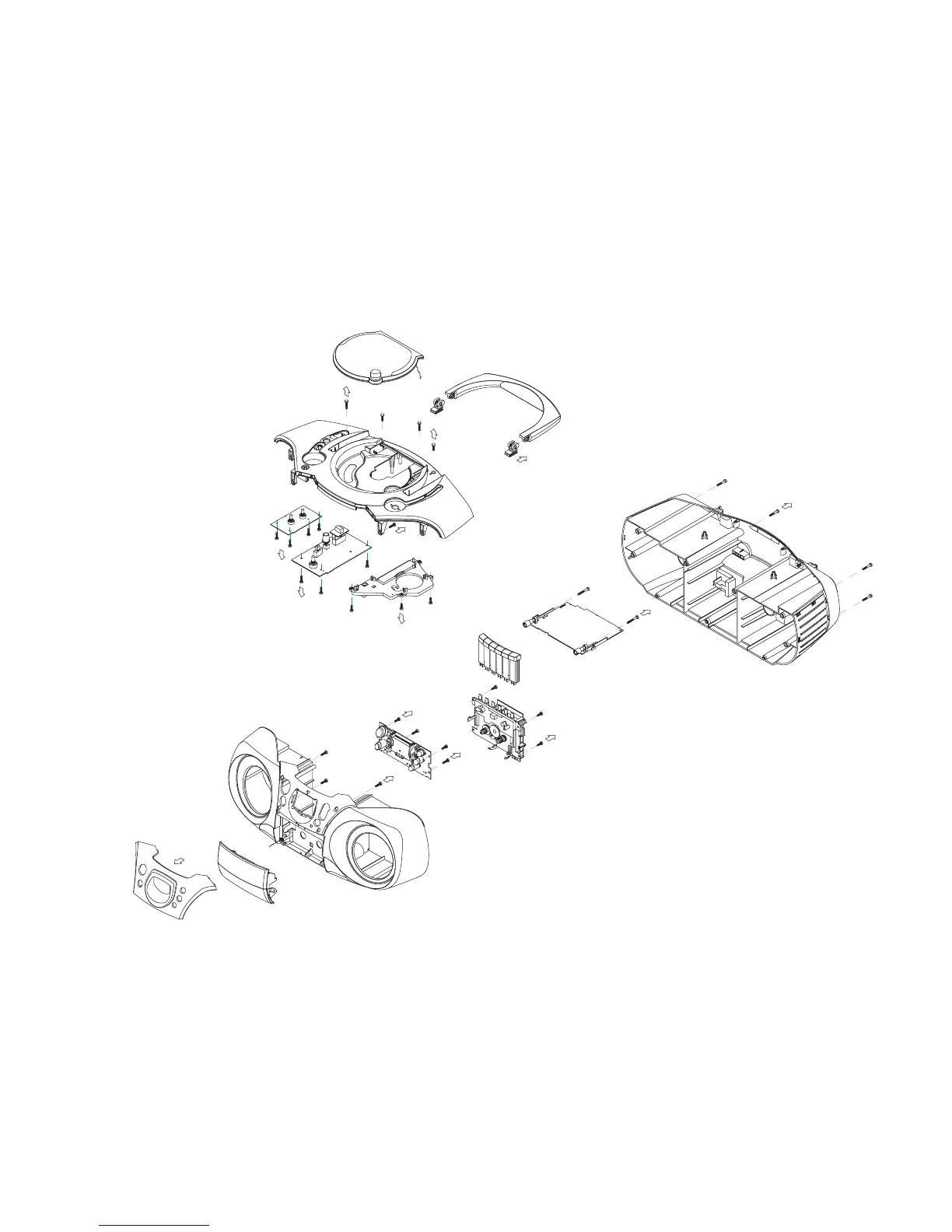

DISASSEMBLY DIAGRAM
A.Remove Front Cabinet Assembly
B.Remove Top Cabinet
C.Remove AF Board
D.Remove Tape Deck
E.Remove Front Board
F. Remove LCD Panel
G.Remove Tuner Board
H.Remove Control Board
I. Remove Handle
