Philips AZ5155/01 - Mechanical Parts List - Cabinet; Detailed Cabinet Mechanical Parts

11 - 211- 2
10
(9x)
8
11
3
(2x)
6
6
(2x)
6
(2x)
502
457
458
459
461
462
451
454
456

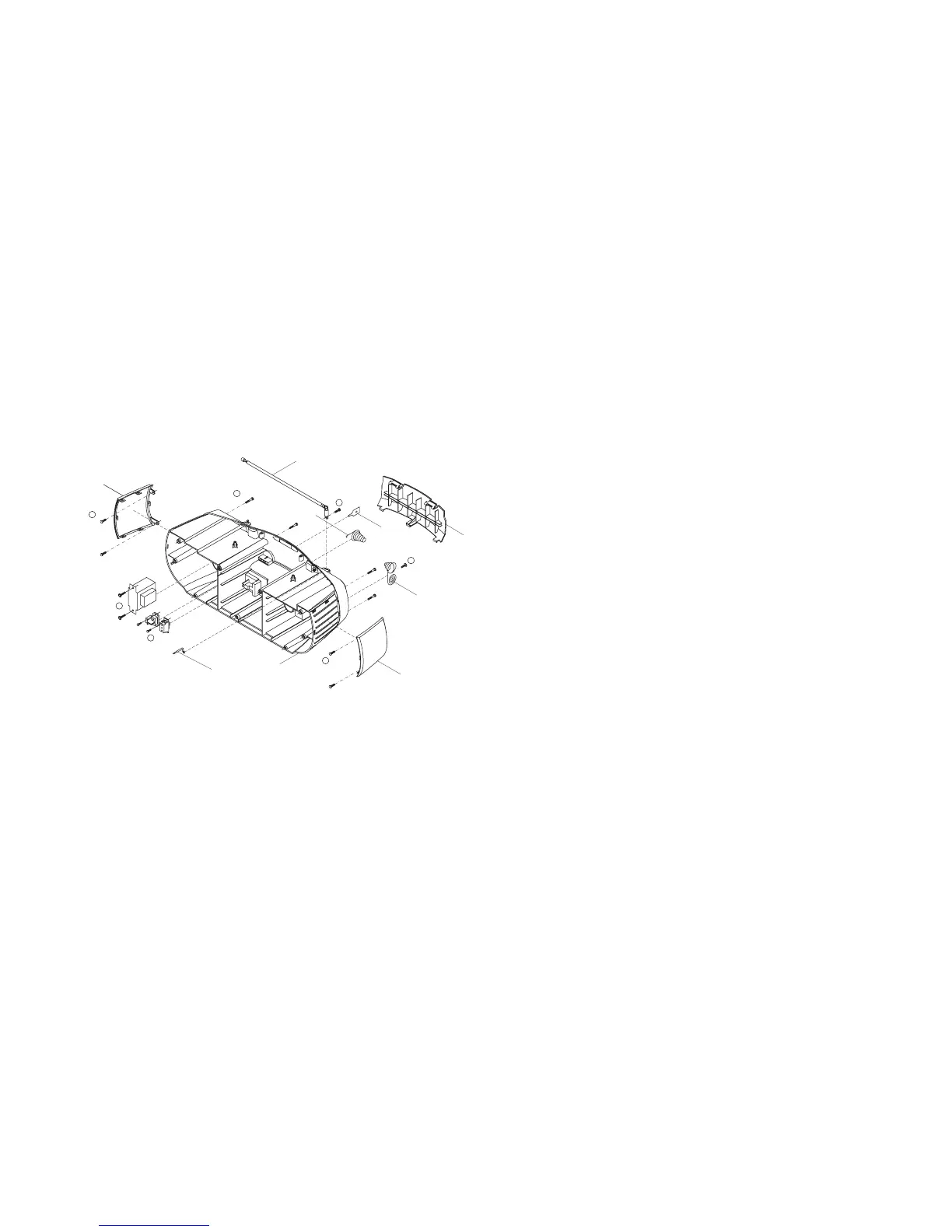

EXPLODED VIEW DAIGARM - CABINET
401 9965 000 20742 CASS LENS
402 9965 000 20741 DOOR CASS
408 9965 000 20738 BUTTON SET-PLAY
409 9965 000 14240 TAPE DECK TK20FX-V682-001
411 9965 000 20737 CASS KNOB SET
414 9965 000 20731 SPRING-CASS DOOR
417 9965 000 20739 BUTTON SET-MODE
418 9965 000 20740 LCD BKT
419 9965 000 08506 REC SPRING
420 3140 114 20430 BRACKET ECO-MTF-SD
421 9965 000 20540 DAMPER RUBBER 30JIS BLK
422 9965 000 20735 TCP11TK2-P CD MECH.(THOMSON)
426 9965 000 20744 FUNCTION KNOB
427 9965 000 20746 IS KNOB
428 9965 000 20747 DBB KNOB
429 9965 000 20745 VOL KNOB
430 9965 000 20750 KARAOKAE VOL KNOB
431 9965 000 20748 TUN.KNOB
433 9965 000 20736 CD DOOR
434 9965 000 20541 DAMPER RUBBER 40JIS GREY
443 4822 529 10322 DAMPER ASSY
449 9965 000 20730 SPRING-CD
452 9965 000 20729 HANDLE BKT
453 9965 000 20749 HANDLE
454 9965 000 20733 BATTERY SPRING(+)
456 9965 000 20732 SWIVEL ANTENNA
459 9965 000 20734 BATTERY SPRING(+-)
461 9965 000 08510 COMP.SPRING (-)
462 9965 000 20743 DOOR BATT.
9965 000 14258 REMOTE BATT. DOOR
Note: Only these parts mentioned in the list are
normal service parts.
MECHANICAL PARTSLIST - CABINET
