Philips AZ7261 - Connections and Controls

DISPLAY
............................. Window for showing the different playing modes, tracks and times
§ .........................................Button for selecting the next music track or, if held down, for searching forward for a particular
passage on the CD
∞ .........................................Button for selecting the previous music track or, if held down, for searching·backward for a
particular passage on the CD
VOLUME .............................Control for adjusting the volume at the headphone output
RESUME/HOLD ..................Switch for activating the RESUME function (resuming CD play) and/or
HOLD (blocking all buttons) function
MODE
0 ..............................Button for selecting the different playing modes:
SHUFFLE
→ SHUFFLE REPEAT ALL → REPEAT 1 → REPEAT ALL → SCAN → off
PROG ....................................Button for storing tracks in a program and for reviewing the program
DBB.....................................Dynamic Bass Boost: Button for boosting the bass response
STOP 9................................Button for stopping CD play, deleting various settings, switching off the CD player and activating
charging.
OPEN...................................Slide control for opening the lid of the CD player
2;.........................................Button for starting and pausing CD play
p / CD OUT..........................Headphone and remote control socket (3.5mm)
4.5 V DC ..............................Socket for external power supply
Battery compartment.........for inserting batteries
1-2
CS 46 160

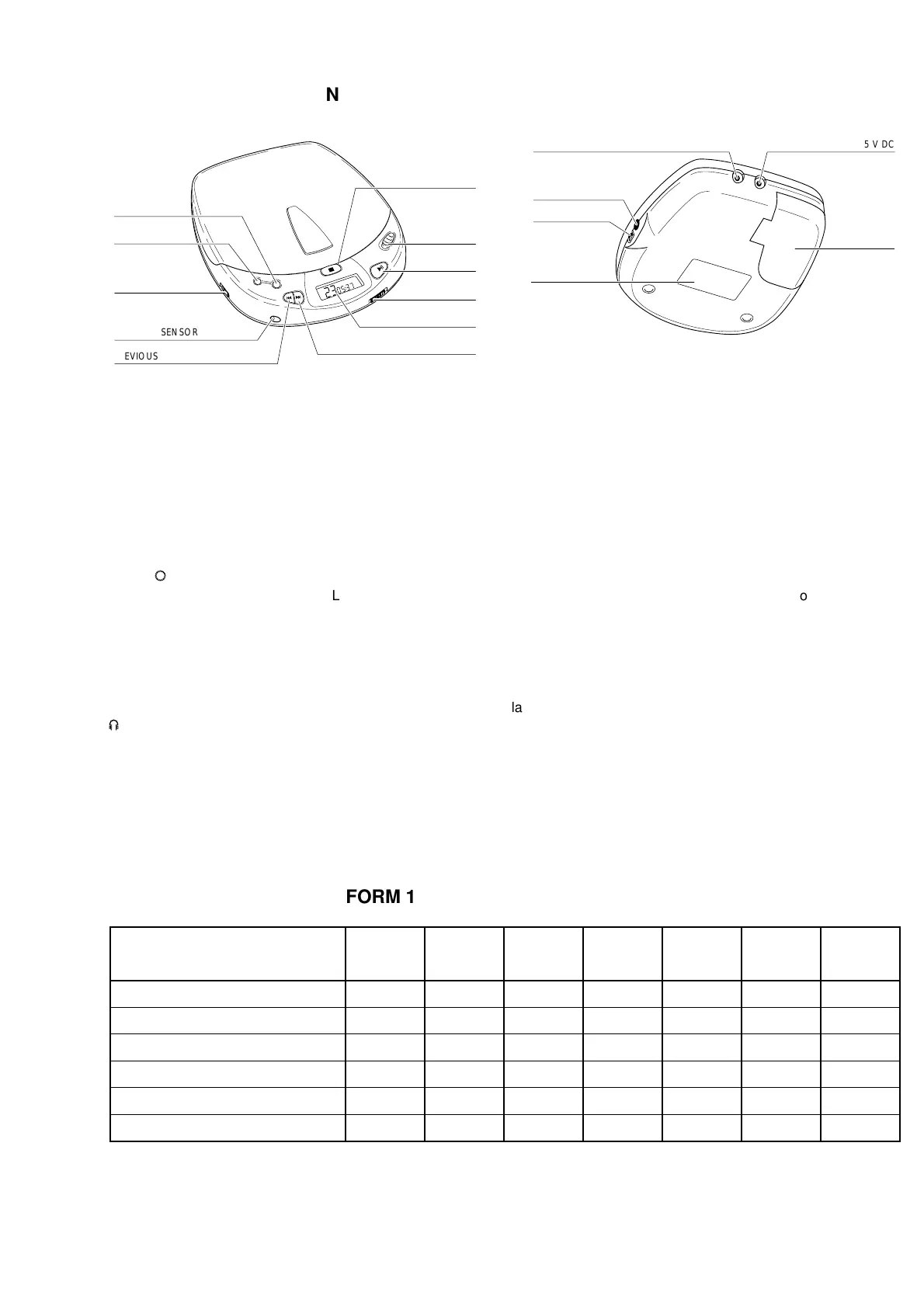

CONNECTIONS AND CONTROLS
PROGRAM
MODE
RESUME / HOLD
PREVIOUS
LINE OUTPUT
HEADPH. / REMOTE
BATTERIES
4,5 V DC
NEXT
DISPLAY
DBB
PLAY / PAUSE
OPEN
STOP
INFRARED SENSOR
VOLUME
TYPEPLATE
PROGRAM
MODE
RESUME / HOLD
PREVIOUS
LINE OUTPUT
HEADPH. / REMOTE
BATTERIES
4,5 V DC
NEXT
DISPLAY
DBB
PLAY / PAUSE
OPEN
STOP
INFRARED SENSOR
VOLUME
TYPEPLATE
RESUME FUNCTION
DYNAMIC BASS BOOST
RECHARGE FUNCTION NiCd
CORD REMOTE CONTROL PREPARED
IR-REMOTE CONTROL PREPARED
LINE OUTPUT
