Philips B Line 243B9 User Manual

9

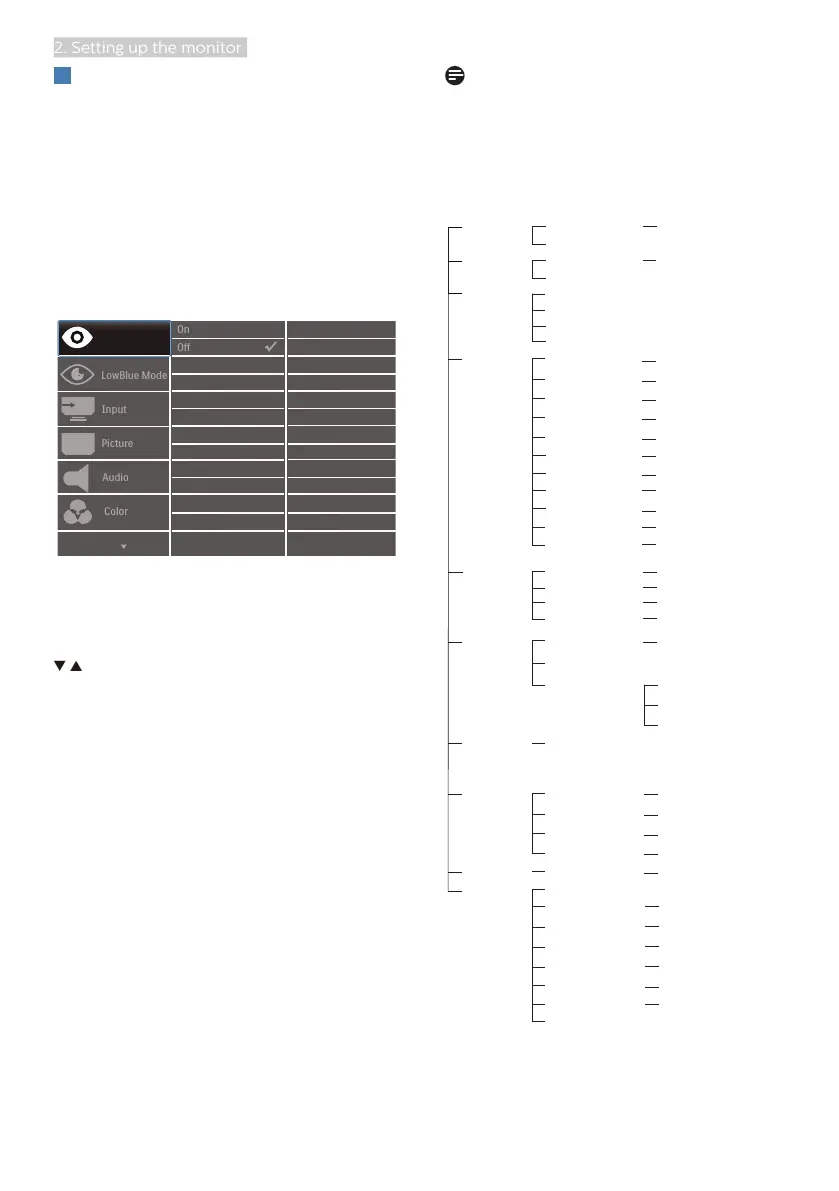

2. Setting up the monitor
3
Description of the On Screen Display
What is On-Screen Display (OSD)?
On-Screen Display (OSD) is a feature
in all Philips LCD monitors. It allows an
end user to adjust screen performance
or select functions of the monitors
directly through an on-screen
instruction window. A user friendly on
screen display interface is shown as
below:





 


Basic and simple instruction on the
control keys
In the OSD shown above, you can press
buttons at the front bezel of the
monitor to move the cursor, and press
OK button to confirm the choice or
change.
The OSD Menu
Below is an overall view of the structure
of the On-Screen Display. You can use
this as a reference when you want to
work your way around the different
adjustments later on.
Note
If this display has "DPS" for ECO design,
the default setting is "ON" mode: it
makes the screen looks slightly dim; for
optimum brightness, enter to the OSD
to set "DPS" to "OFF" mode.
Main menu Sub menu
Input
OSD Settings
USB Settings
Setup
Language
Color
Audio
Audio In, HDMI, DisplayPort,
USB C
DPS
(available for selective models)
On, O
Picture Format
Brightness
Contrast
Adaptive Sync
Horizontal
Vertical
Transparency
OSD Time Out
USB Standby Mode
Auto
V.Position
Phase
Clock
Resolution Notication
Reset
Information
English, Deutsch, Español, Ελληνική, Français, Italiano,
Maryar, Nederlands, Português, Português do Brasil,
Polski , Русский, Svenska, Suomi, Türkçe, Čeština,
Українська, 简体中文, 繁體中文,日本語,한국어
Color Temperature
sRGB
User Dene
VGA
HDMI 1.4
USB C
SmartResponse
SmartContrast
Gamma
Over Scan
Pixel Orbiting
H.Position
DisplayPort
Stand-Alone
Wide Screen, 4:3
0~100
0~100
0~100
0~100
On, O
O, 1, 2, 3, 4
5s, 10s, 20s, 30s, 60s
On, O
Yes, No
0~100
0~100
0~100
Native, 5000K, 6500K, 7500K,
8200K, 9300K, 11500K
Red: 0~100
Green: 0~100
Blue: 0~100
O, Fast, Faster, Fastest
On, O
On, O
1.8, 2.0, 2.2, 2.4, 2.6
0~100
0~100
On, O
On, O
Volume
Audio Source
Mute
On, O
On, O
Sharpness
0~100
LowBlue Mode
On
O
1, 2, 3, 4
PowerSensor
On
O
0, 1, 2, 3, 4

Philips B Line 243B9 Specifications

General

Haze rate	25 %
Pixel pitch	0.275 x 0.275 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	W-LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Maximum refresh rate	75 Hz
NTSC coverage (typical)	90 %
Viewable size, vertical	296.5 mm
sRGB coverage (typical)	104 %
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Viewable size, horizontal	527 mm
Digital vertical frequency	48 - 75 Hz
Digital horizontal frequency	30 - 85 kHz
Display brightness (typical)	250 cd/m²
Dynamic contrast ratio marketing name	SmartContrast
Component video sync	Separate sync, Sync-on-green (SOG)
RMS rated power	4 W
Number of speakers	2
Product color	Black
Market positioning	Business
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB Power Delivery up to	65 W
USB Type-A downstream ports quantity	4
Sustainability certificates	ENERGY STAR, RoHS, TCO, WEEE
Package type	Box
Package depth	162 mm
Package width	600 mm
Package height	476 mm
Package weight	8090 g
Cables included	AC
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	14.99 W
Power consumption (PowerSave)	12.8 W
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 30 °
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm

Weight and Dimensions

Depth (with stand)	216 mm
Width (with stand)	541 mm
Height (with stand)	522 mm
Weight (with stand)	5440 g
Depth (without stand)	63 mm
Height (without stand)	332 mm
Weight (without stand)	3830 g
