3-3

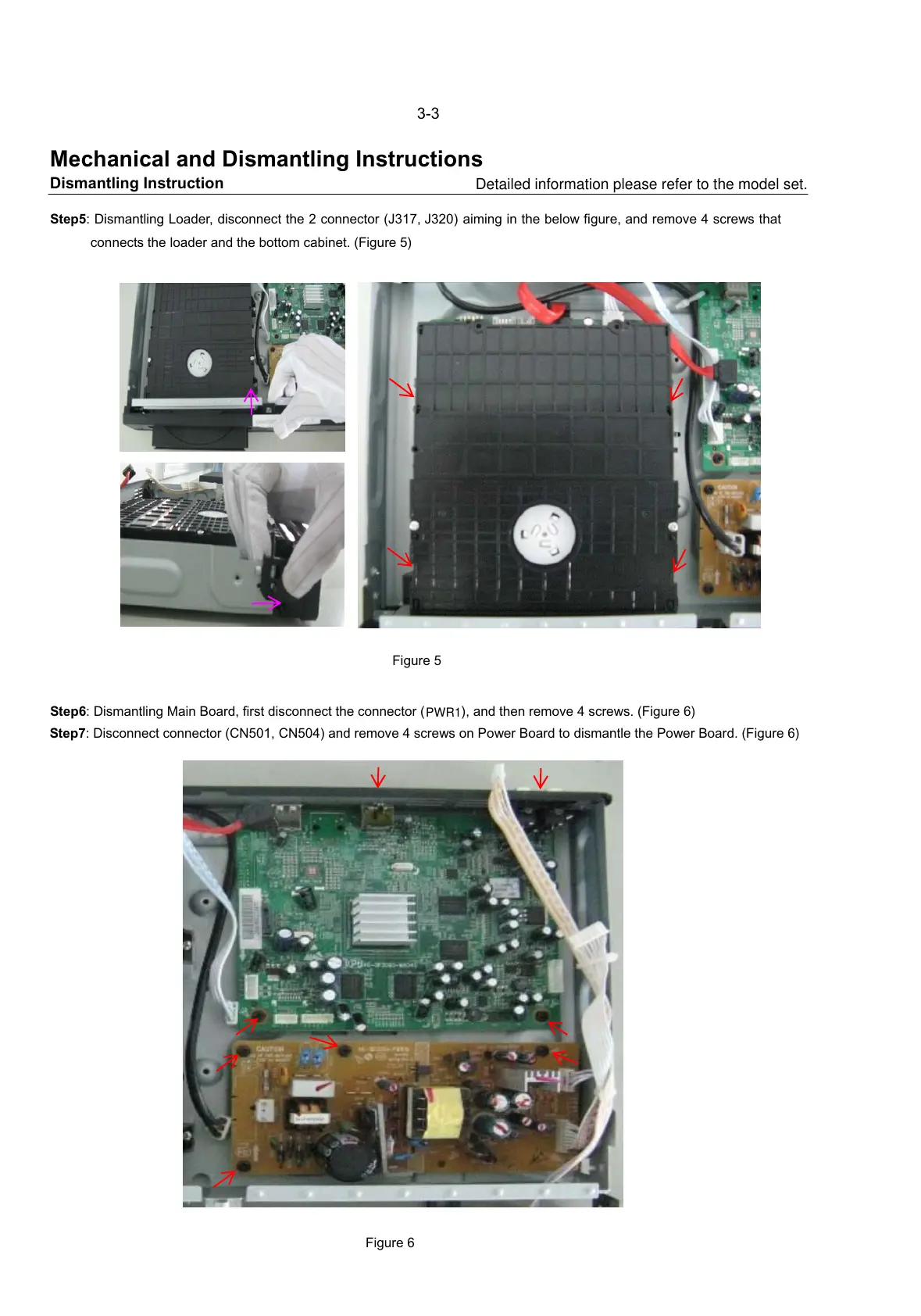

Mechanical and Dismantling Instructions
Dismantling Instruction
Figure 5
Figure 6
Detailed information please refer to the model set.
Step6: Dismantling Main Board, first disconnect the connector ( ), and then remove 4 screws. (Figure 6)
Step7: Disconnect connector (CN501, CN504) and remove 4 screws on Power Board to dismantle the Power Board. (Figure 6)
Step5: Dismantling Loader, disconnect the 2 connector (J317, J320) aiming in the below figure, and remove 4 screws that
connects the loader and the bottom cabinet. (Figure 5)
PWR1
