Mechanical and Dismantling Instructions
Dismantling Instruction

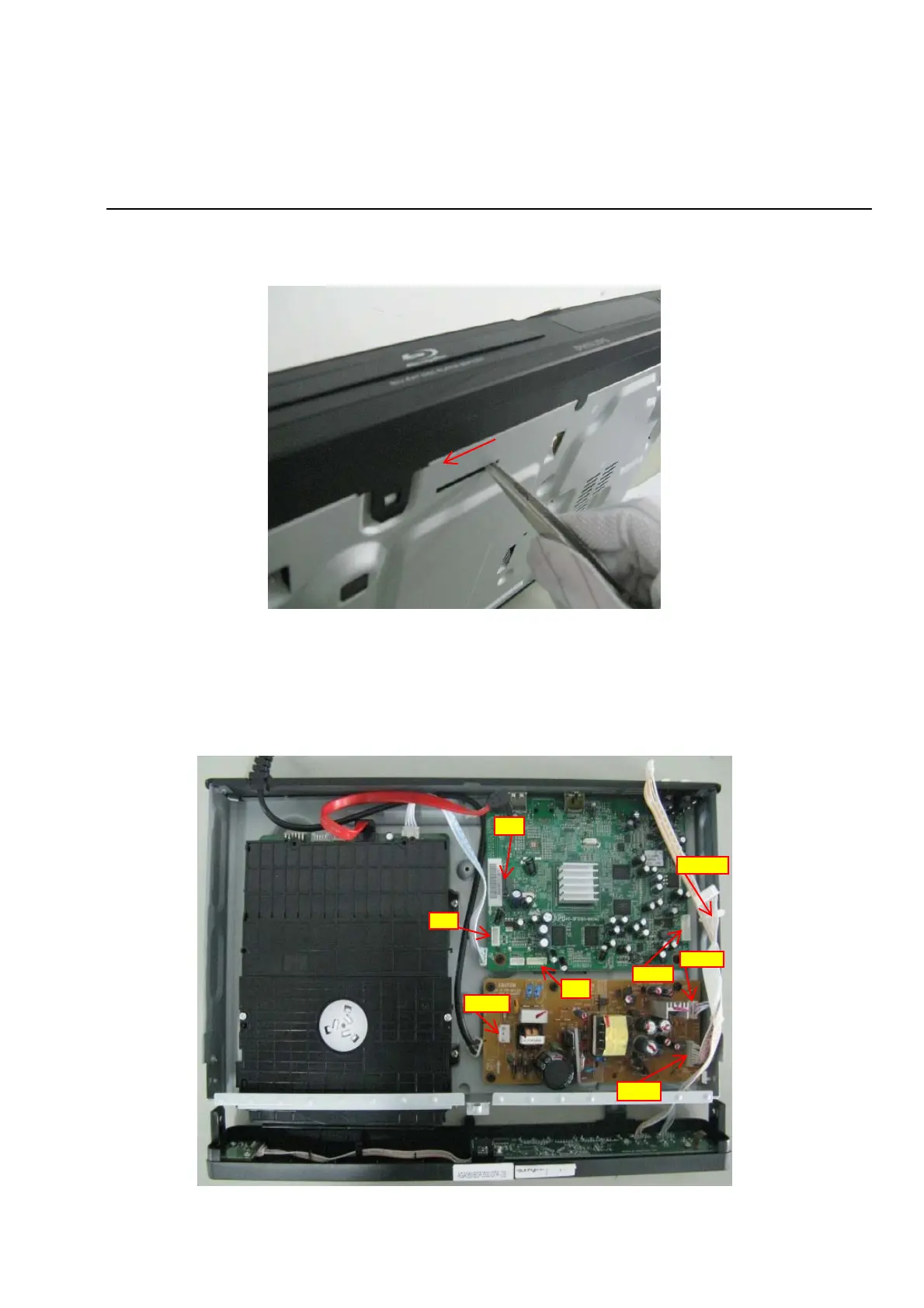

Step3: If the tray can’t open in normal way, you can make it through the instruction as below (Figure 3).
Note: Make sure to operate gently otherwise the guider would be damaged.
Figure 3
Step4: Dismantling Front Panel, disconnect the connectors (J306, CN502), need release 3 snaps of Front Panel
Figure 4
3-2
Detailed information please refer to the model set.
and 2 snaps of bottom cabinet, and cut off 2 twist tie then gently pull the Panel out from the set. (Figure 4 - Figure 6)
