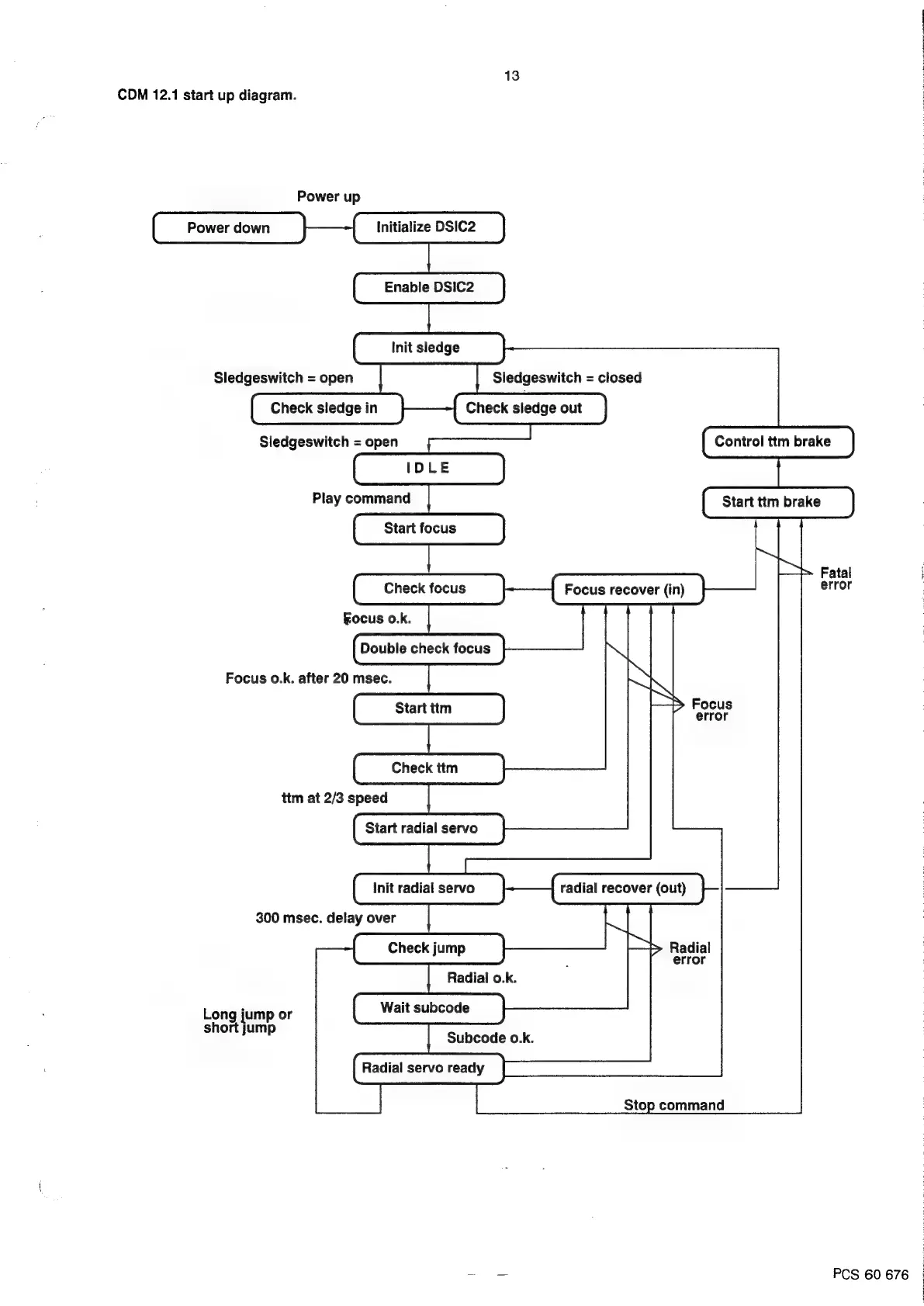

CDM 12.1 start up diagram.
Power up
initialize DSIC2
Enable DSIC2
Init sledge
Sledgeswitch = open Se Sledgeswitch = closed
Check sledge in Check sledge out
Sledgeswitch = open
Control ttm brake
Start ttm brake
IDLE
Play command
Check focus
focus 0.k.
Double check focus
Focus o.k. after 20 msec.
Start ttm
ttm at 2/3 speed
Start radial servo
Init radial servo
300 msec. delay over
Radial o.k.
Subcode o.k.
Radial servo ready
r> Radial
error
Long jump or
short jump
Stop command
= PCS 60 676
