Philips CDR770 - Digital Coaxial Connections; Digital Optical Connections

English
12

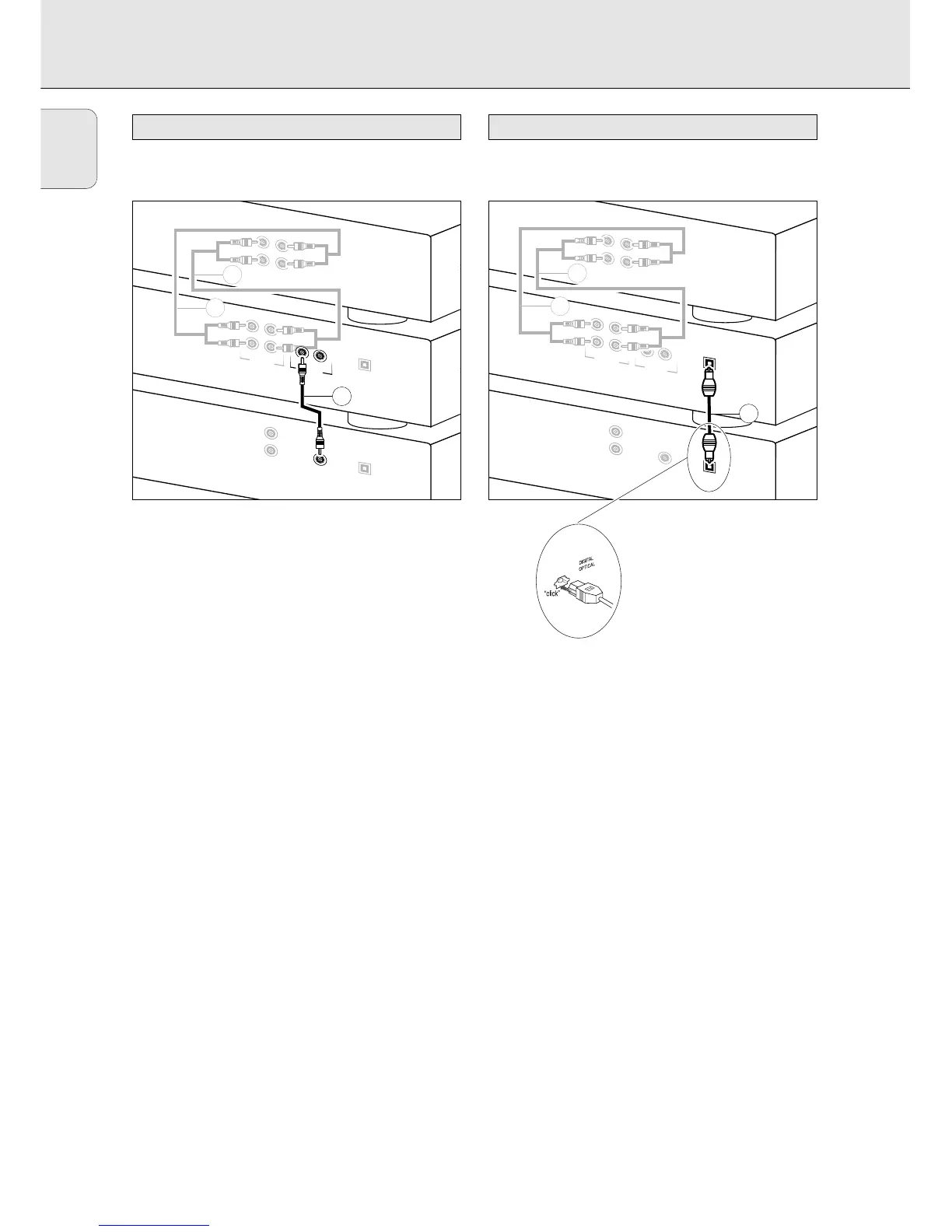

Digital coaxial connection is only required in case you wish to
record from a CD player with a digital coaxial output.
Use the digital coaxial cable supplied.
1 For recording, connect the cable 3 between the DIGITAL
IN-socket on the CD recorder and the DIGITAL OUT-socket of
a CD player.
Note: Your CD recorder is equipped with a digital coaxial
output. This output can be used for digital playback.
Digital optical connection is only required in case you wish to
record from a CD player with a digital optical output.
When connecting the Digital
Optical cable, make sure it
is fully inserted until
there is a click.
1 Remove the dust caps from the digital optical connection.
(We recommend you save the cap).
2 For recording, connect a fibre-optic cable 4 between the
digital optical input of the CD recorder and the digital-
optical output of a CD player.
Note: For playback, the digital coaxial output or analog output
should be connected to an amplifier.
OPTICAL
OUT
ANALOG
L
R
OUT
DIGITAL
OUT
CD PLAYER
OPTICAL
IN
ANALOG
IN
L
R
L
R
OUT
DIGITAL
IN
OUT
CD RECORDER
TAPE
OUT
L
R
L
R
IN
RECEIVER
1
2
4
Digital optical connections
OPTICAL
OUT
ANALOG
L
R
OUT
DIGITAL
OUT
CD PLAYER
OPTICAL
IN
ANALOG
IN
L
R
L
R
OUT
DIGITAL
IN
OUT
CD RECORDER
TAPE
OUT
L
R
L
R
IN
RECEIVER
1
2
3
Digital coaxial connections
INSTALLATION
