Philips CDR880 Service Manual

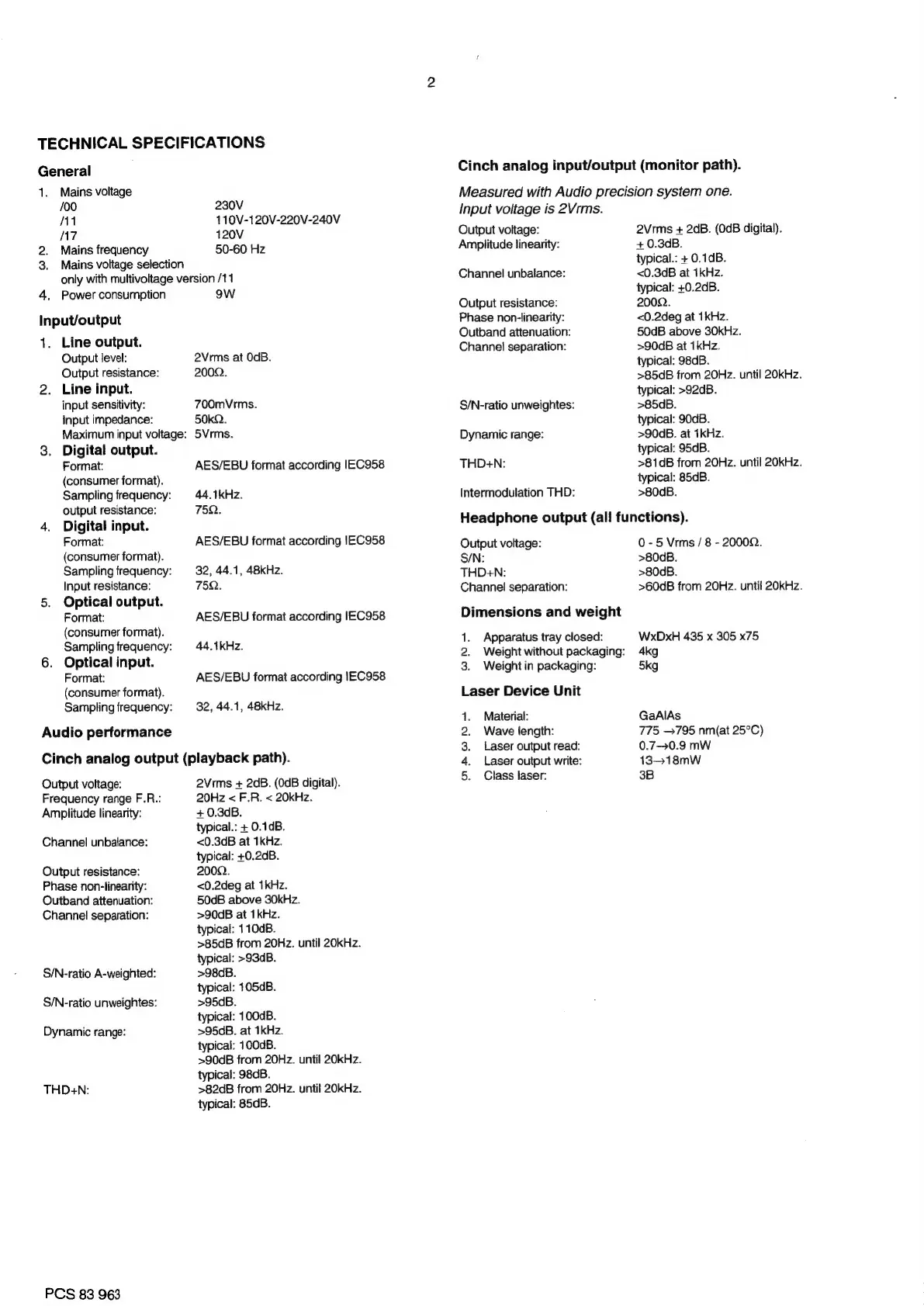

TECHNICAL SPECIFICATIONS
General
1. Mains voltage
/00
‘1
M7
2. Mains frequency
3. Mains voltage selection
230V
110V-120V-220V-240V
120V
50-60 Hz
only with multivoltage version /11
4, Power consumption
InpuVoutput
1. Line output.
Output level:
Output resistance:
2. Line input.
input sensitivity:
Input impedance:
Maximum input voltage:
3. Digital output.
Format:
(consumer format).
Sampling frequency:
output resistance:
4. Digital input.
Format:
(consumer format).
Sampling frequency:
Input resistance:
5. Optical output.
Format:
(consumer format).
Sampling frequency:
6. Optical input.
Format:
(consumer format).
Sampling frequency:
Audio performance
9W
2Vrms at OdB.
2002.
700mVrms.
50kQ.
5Vrms.
AES/EBU format according IEC958
44.1kHz.
75Q.
AES/EBU format according |EC958
32, 44.1, 48kHz.
75Q.
AES/EBU format according IEC958
44.1kHz.
AES/EBU format according IEC958
32, 44.1, 48kHz.
Cinch analog output (playback path).
Output voltage:
Frequency range F.R.:
Amplitude linearity:
Channel unbalance:
Output resistance:
Phase non-linearity:
Outband attenuation:
Channel separation:
S/N-ratio A-weighted:
S/N-ratio unweightes:
Dynamic range:
THD+N:
PCS 83 963
2Vrms + 2dB. (0dB digital).
20Hz < F.R. < 20kHz.
+ 0.3dB.
typical.: + 0.10B.
<0.3qB at 1kHz.
typical: +0.2dB.
2002.
<0.2deg at 1kHz.
50dB above 30kHz.
>90dB at 1kHz.
typical: 110dB.
>85dB from 20Hz. until 20KHz.
typical: >93dB.
>98dB.
typical: 105dB.
>95dB.
typical: 100dB.
>95cB. at 1kHz.
typical: 100dB.
>90dB from 20Hz. until 20kHz.
typical: 98d0B.
>82dB from 20Hz. until 20KHz.
typical: 85dB.
Cinch analog input/output (monitor path).
Measured with Audio precision system one.
Input voltage is 2Vrms.
Output voltage:
Amplitude linearity:
Channel unbalance:
Output resistance:
Phase non-linearity:
Outband attenuation:
Channel separation:
S/N-ratio unweightes:
Dynamic range:
THD+N:
Intermodulation THD:
2Vims + 2dB. (OdB digital).
+ 0.3qB.
typical.: + 0.1dB.
<0.3dB at 1kHz.
typical: +0.2dB.
2009.
<0.2deg at 1kHz.
50dB above 30kHz.
>90dB at 1kHz.
typical: 98dB.
>85cB from 20Hz. until 20KHz.
typical: >92dB.
>85dB.
typical: 90dB.
>90dB. at 1kHz.
typical: 95dB.
>81dB from 20Hz. until 20kKHz.
typical: 85dB.
>80cB.
Headphone output (al! functions).
Output voltage:
S/N:
THD+N:
Channel separation:
Dimensions and weight
1. Apparatus tray closed:
2. Weight without packaging:
3. Weight in packaging:
Laser Device Unit
Material:
Wave length:
Laser output read:
Laser output write:
Class laser:
gFoON>
0-5 Vrms /8 - 20002.
>80dB.
>80cB.
>60dB from 20Hz. until 20kHz.
WxDxH 435 x 305 x75
4kg
5kg
GaAlAs
775 3795 nm(at 25°C)
0.70.9 mW
13-18mW
3B

Philips CDR880 Specifications

Power

power supply	AC 230V(/00), 120V(/17), 120/230V(/11)
power consumption	15 W
line output voltage	2 Vrms

Operating Environment

operating temperature	5-35 °C

Audio Specifications

frequency response	20 Hz-20 kHz
playback S/N	105 dB
playback dynamic range	98 dB
playback total harmonic distortion	85 dB
recording S/N	90 dB
recording dynamic range	95 dB
recording total harmonic distortion	85 dB
digital coaxial output	0.5 V(pp)/75Ω
digital optical output	-20 dBm
headphones	0-5 Vrms/8-2000Ω
digital coaxial input	32-48 kHz
digital optical input	32-48 kHz
analogue input	700 mVrms/50kΩ

Weight and Dimensions

weight	4 kg
width	435 mm
depth	310 mm
height	75 mm
