9EN

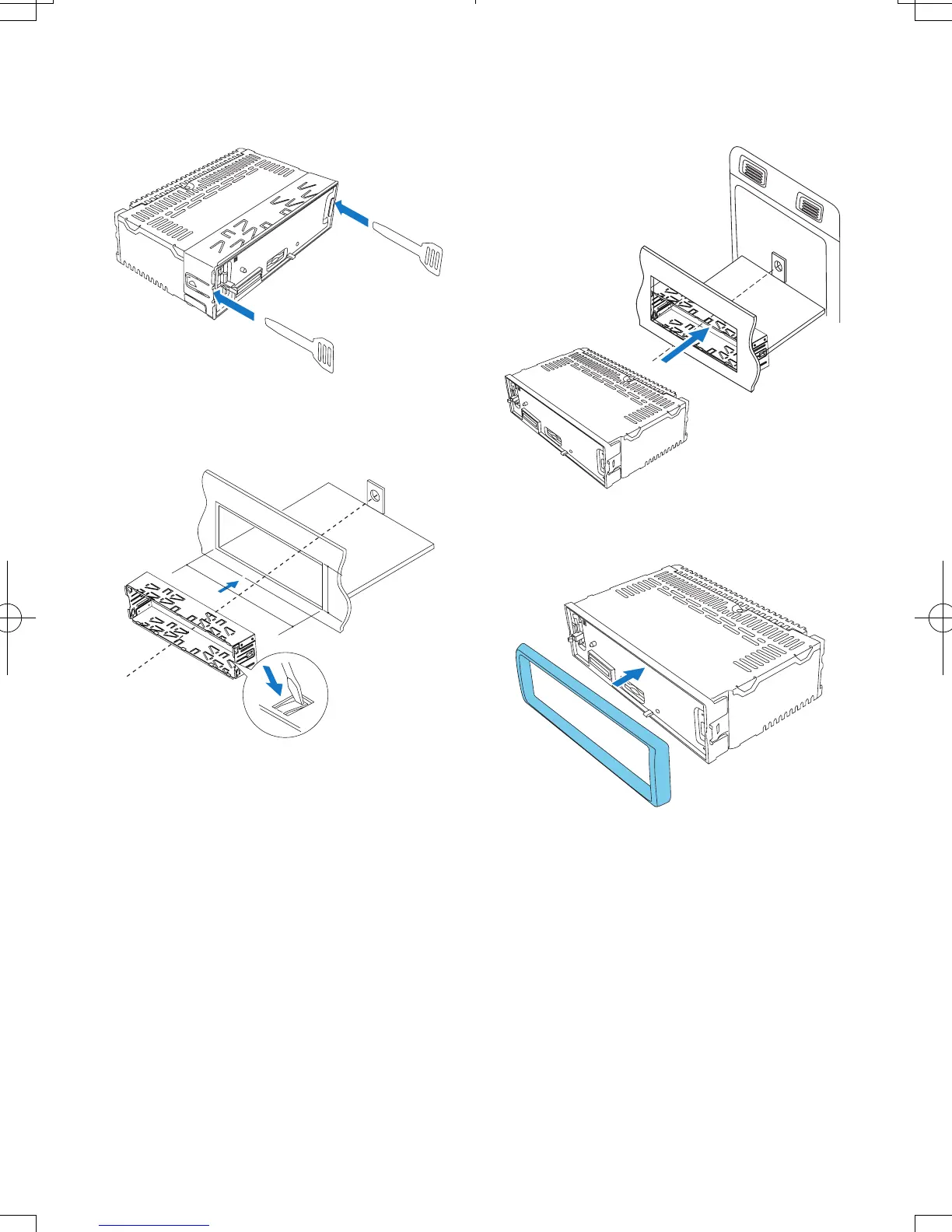

2 Remove the mounting sleeve with the
supplied disassembly tools.
3 Install the sleeve into the dashboard and
bend the tabs outward to x the sleeve.
183 mm
53.5 mm
4 Slide the unit into the sleeve until you hear
a "click".
5 Attach the trim plate.
6 Reconnect the negative terminal of the car
battery.
