Philips Cineos 32HF9385D/10 User Manual

Connections
Back connectors
1
EXT1
Scart connector for DVD,VCR, digital receiver,
game console, etc.
2
EXT2
Second scart connector.
3
EXT3
Component Video Y Pb Pr and Audio L/R
connectors for DVD, digital receiver or game
console, etc.
4 Common Interface
Slot for Conditional Access Modules (CAM)
5
Audio Out L/R
Sound output cinch connectors for a Home
Theatre System, etc.
6
Digital Audio In (if present)
Sound input cinch connector for use with any
of the HDMI connectors with a HDMI to DVI
adaptor.
7
Digital Audio Out
Sound output cinch connector for a Home
Theatre System, etc.
8 HDMI 1 In
HDMI in connector for Blu-ray Disc player, HD
digital receiver or HD game console, etc.
9 HDMI 2 In
Second HDMI in connector.
10 HDMI 3 In
Third HDMI in connector.
11 Antenna input
Side connectors
12 S-Video (Side)
S-Video input connector to be used together
with Audio L/R connectors for camcorder, game
console, etc.
13 Video (Side)
Video input cinch connector to be used together
with Audio L/R connectors for camcorder, game
console, etc.
14 Audio L/R in (Side)
Audio L/R for camcorder, game console, etc.
15 Headphones
Stereo Mini Jack.
16 USB
USB connector.
30
7 Connections

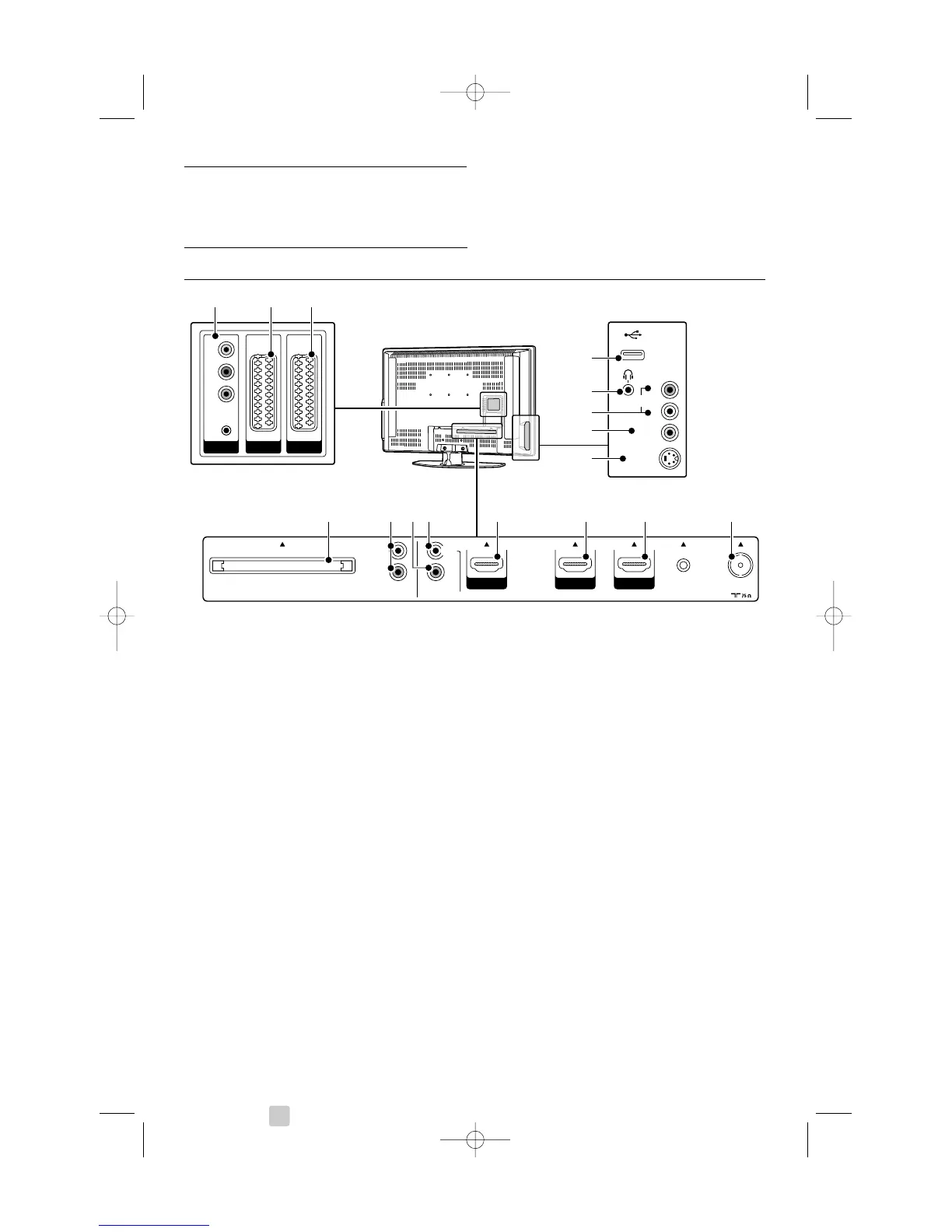

7.1 Connection overview
S-VIDEO
VIDEO
L
R
USB
AUDIO
EXT 3
Y
Pb
Pr
AUDIO
L/
R
EXT 1EXT 2
AUDIO OUT DIGITAL
AUDIO
L
R
ANTENNA
COMMON INTERFAC
E
IN
OUT
SERVICE
UAR
T
DISPLAY SYNCHRONIZED
DISPLAY SYNCHRONIZED
.
HDMI 1 HDMI 2 HDMI 3
123
16
15
14
12
4 8 9 10 115 76
13
2655.1 en (def) 14-05-2007 12:03 Pagina 30
