Disassembly Instruction (continue)

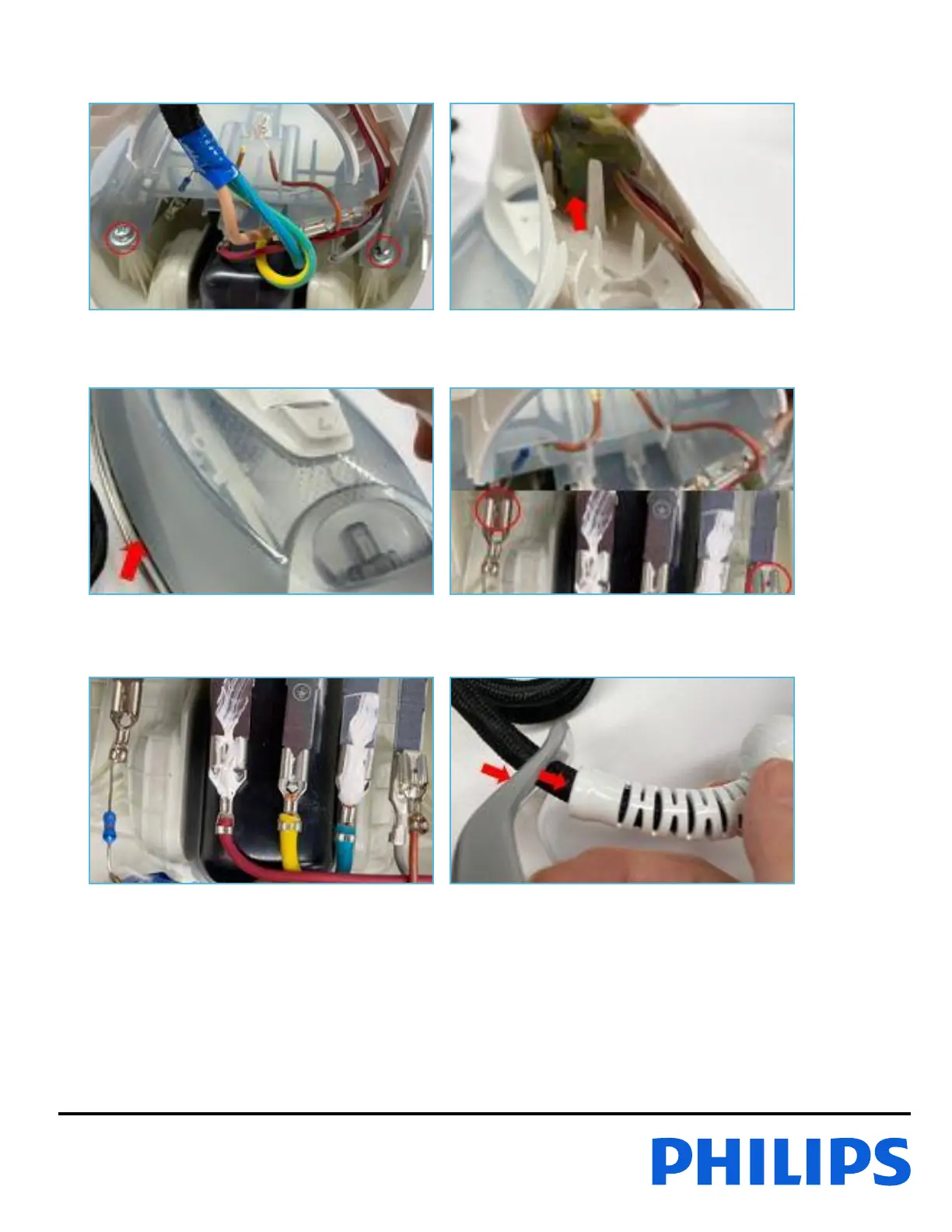

13. Remove 2x Screw C
14. Remove ASO 1
15. Remove WATER TANK ASSY 7
16. Remove LAMP ASSY 9
Press the tab of Quick Connector and pull out
from Frame Connector
17. Remove the Heat Sink Paste from the
connectors with clean cloth. Press the tab of
Quick Connector on MAINSCORD and pull it out
from Frame Connector.
18. Remove BALL SWIVEL 10, BACKPLATE 2
& MAINSCORD 6
