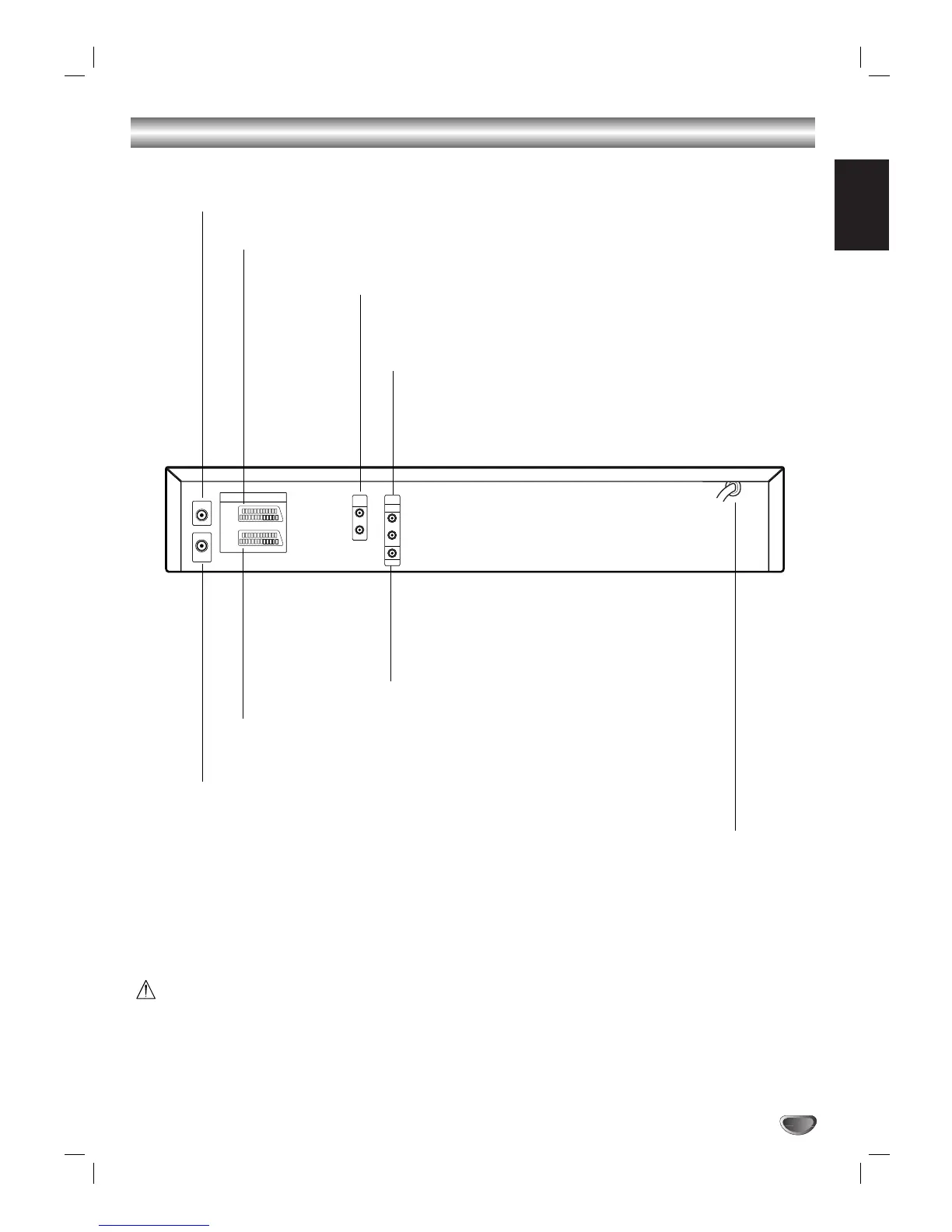

Rear Panel
Do not touch the inner pins of the jacks on the
rear panel. Electrostatic discharge may cause
permanent damage to the unit.
AUDIO
OUT
DVD
EXCLUSIVE
OUT
VCR IN+OUT/DVD OUT
DVD/VCR
OUT
RF OUT
AERIAL
R
COAXIAL
L
DVD/VCR
AUDIO OUT
R
L
EURO AV1
AUDIO/
VIDEO
EURO AV2
DECODER
COAXIAL (Digital audio out jack) (DVD OUT)
Connect to digital (coaxial) audio equipment.
AUDIO OUT (Left/Right) (DVD OUT)
Connect to an amplifier, receiver or stereo system.
AERIAL
Connect the aerial using this jack.
DVD/VCR AUDIO OUT
Connect to an amplifier, receiver or stereo system.
EURO AV1 AUDIO/VIDEO (VCR IN+OUT/DVD OUT)
Connect to your TV set or another video recorder.
RF OUT (DVD/VCR OUT)
Connect to your TV using this jack.
Mains lead
Connect to a power
source.
EURO AV2 DECODER
Connect to pay-TV decoder or another video recorder.
