Step 1: Basic Recorder Connections (continued)
TV
TERRESTRIAL
B

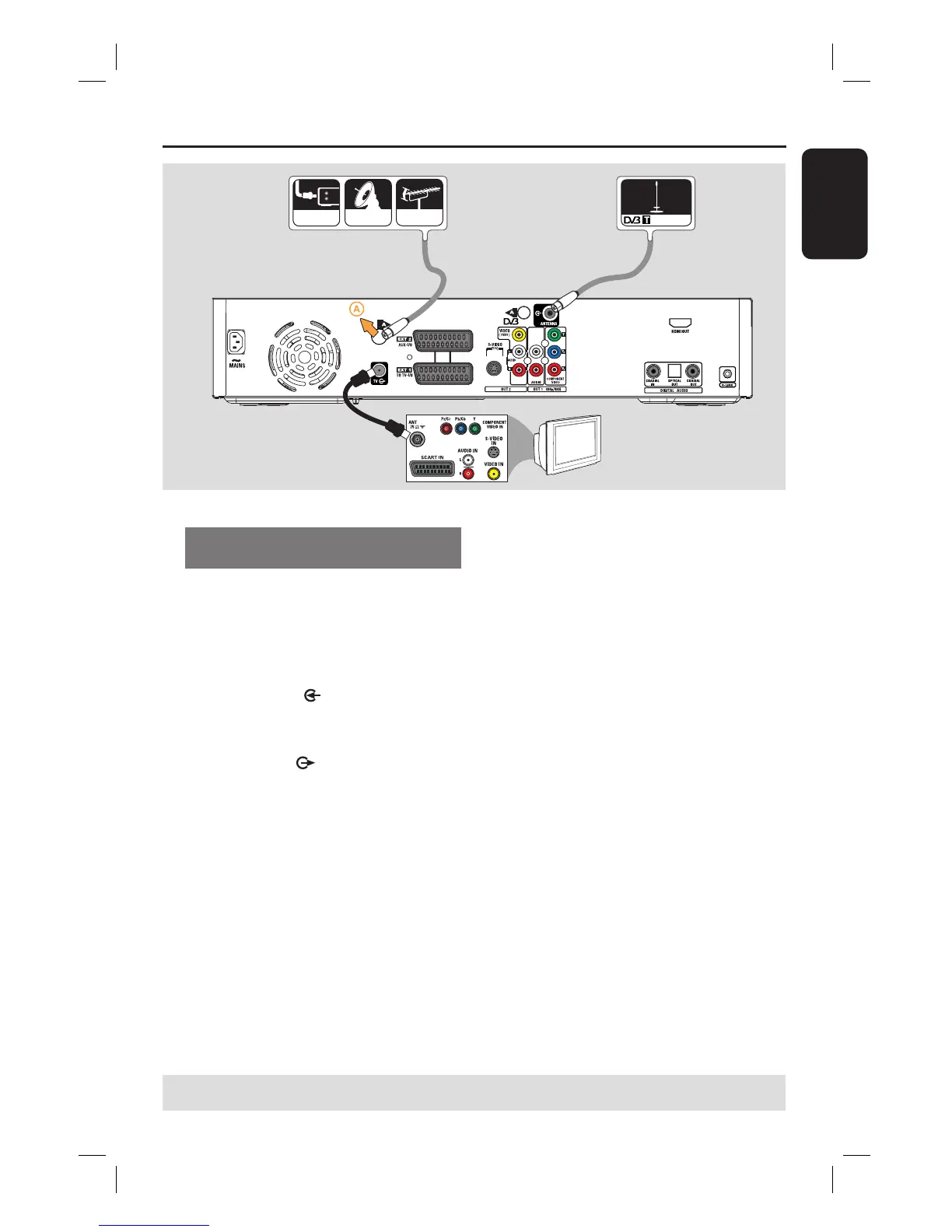

Option 2: Connecting to the
analogue and terrestrial antennas
A Connect the existing Antenna/Satellite
Receiver/Cable TV signal (labelled as RF
OUT or TO TV) to the A-socket on the
recorder.
B Connect the digital terrestrial antenna to
the ANTENNA socket on the
recorder.
C Use the supplied RF coaxial cable to
connect the TV socket on the
recorder to the antenna input socket (or
labelled as VHF/UHF RF IN) on your TV.
Helpful Hints:
– The integrated DVB tuner allows you to
receive digital terrestrial TV channels that will
preserve the high picture quality, see page
89 for more information.
– Only free-to-air digital TV channels can be
received (no reception of ‘condition access’ /
Smartcard channels).
TIPS: Before making or changing any connections, make sure that all the devices are disconnected
from the power outlet.
