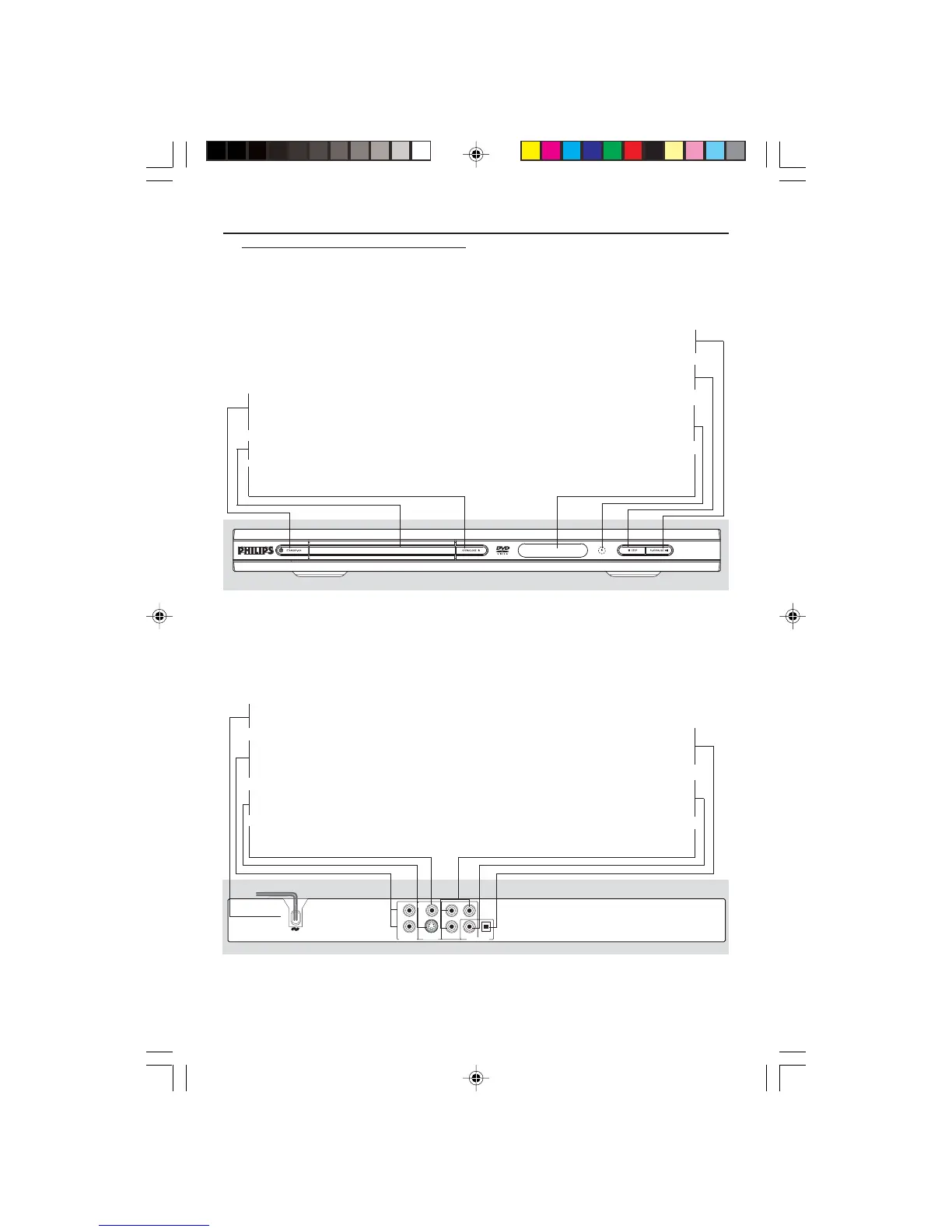

Functional Overview
Front and Rear Panels
OPTICAL (Digital audio out)
– Connect to the optical AUDIO input of a
digital audio equipment
COAXIAL (Digital audio out)
– Connect to the coaxial AUDIO input of a
digital audio equipment
YPbPr
– Connect to YPbPr input of a TV
STANDBY-ON B
–To switch the DVD Player to Standby
mode or ON
Disc tray
OPEN/CLOSE /
– Open/Close the disc tray
2; PLAY/PAUSE
– To start or interrupt playback
9 STOP
– To stop playback
IR Sensor
– Point the remote control towards this
sensor
Display
– Shows the current status of the DVD
Player
L
R
AUDIO OUT
VIDEO
OUT
S-VIDEO
OUT
PrPb
Y
DIGITAL OUT
COAXIAL OPTICAL
Mains (AC Power Cord)
– Connect to a standard AC outlet
Audio Out (Left/Right)
– Connect to AUDIO inputs of an amplifier,
receiver or stereo
S-Video Out
– Connect to S-Video input of a TV
VIDEO OUT (CVBS)
– Connect to CVBS Video input of a TV
Caution: Do not touch the inner pins of the jacks on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
