3 Basic Operation
36
Connecting the Monitor to AC Mains
WARNING
• Always use the supplied power cord with the earthed mains plug to connect to an earthed AC
mains socket. Never adapt the mains plug from the fetal monitor to fit an unearthed AC mains
socket.
• Check that the line frequency is correctly configured in the
Global Settings menu.
• FM20/FM30 only: The protective earth conductor is required for EMC purposes. It has no
protective function against electric shock. Double and/or reinforced insulation protects this
device against electric shock.
• Do not use AC mains extension cords or multiple portable socket-outlets.
Always ensure that the monitor is positioned so that the AC mains plug is easily accessible, to allow
disconnection of the monitor from the AC mains.
Wired Transducers

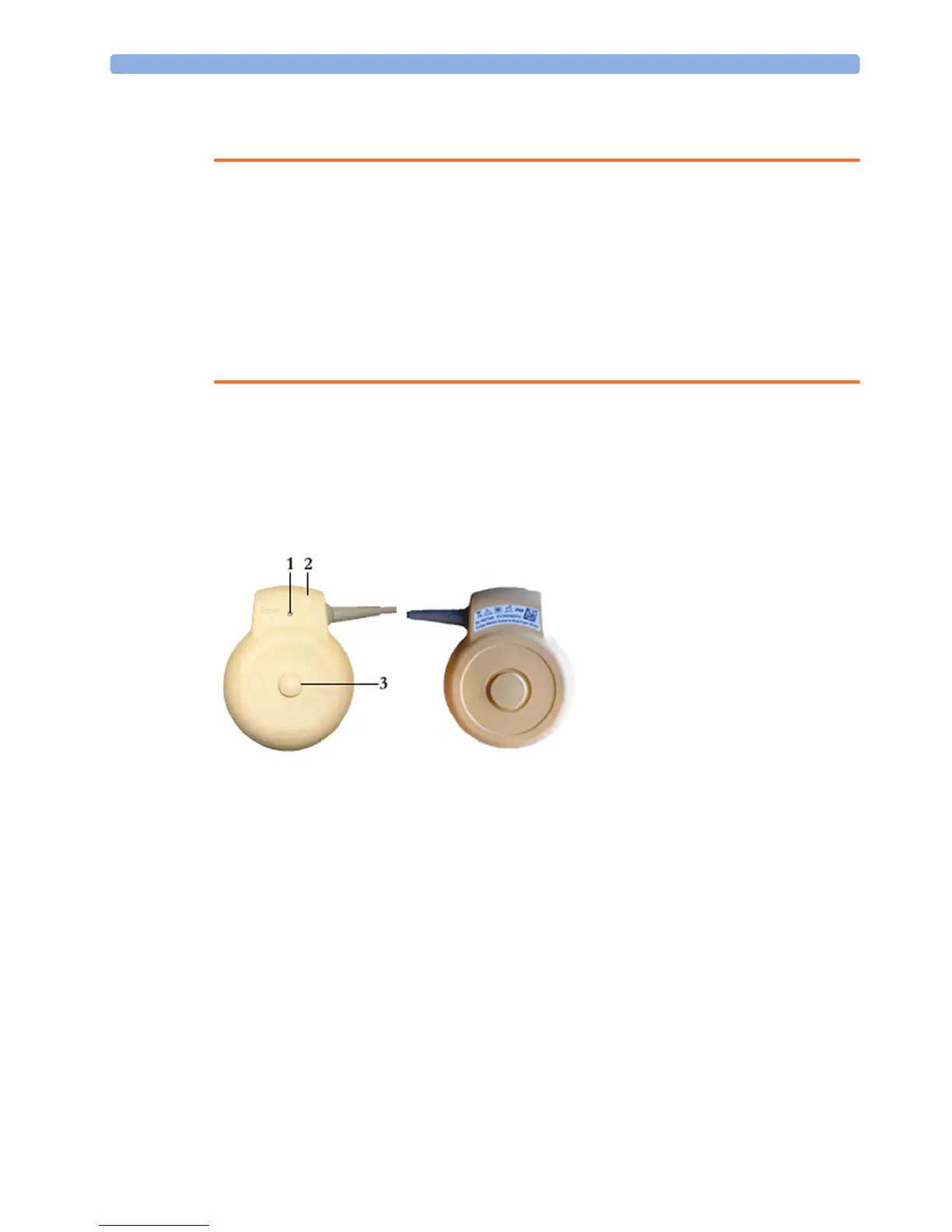

Toco (M2734A) and Toco MP Transducer (M2734B)
1 Transducer finder LED - lights up
on the transducer supporting to
identify the measurement source
2 "MP" for M2734B "Toco MP"
transducers (additionally capable
of providing the maternal pulse
measurement)
3 Belt button
