3 Basic Operation
37

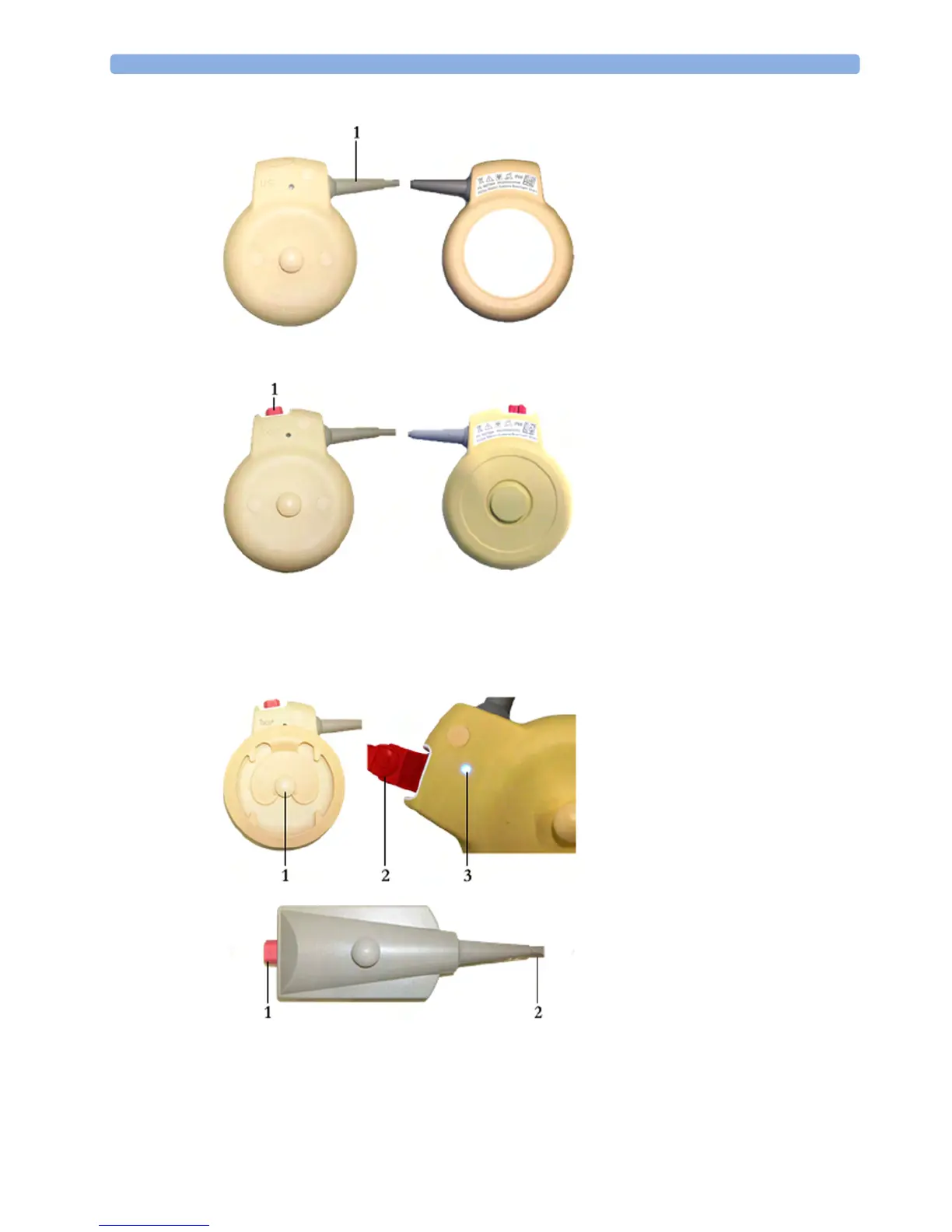

Ultrasound Transducer (M2736A)
1 Cable - connects to any of the
four fetal sensor sockets on the
monitor
The M2736AA US transducer is
identical to the M2736A US
transducer, including all specifications
Toco
+
Transducer with ECG/IUP capability
(M2735A)
1 Connector - for connecting
ECG/IUP adapter cables
(M2735A Toco
+
transducer only)
1 Butterfly belt clip (shown fitted;
for use with belts without button
holes)
2 Close-up of MECG adapter cable
connected to Toco
+
transducer
3 Close-up of active finder LED
Patient Module for ECG/IUP (M2738A)
1 Connector - for connecting ECG/
IUP adapter cables (same as for
Toco
+
transducer)
2 Cable - connects to any of the four
fetal sensor sockets on the monitor
