3 Basic Operation
41
Screen Details

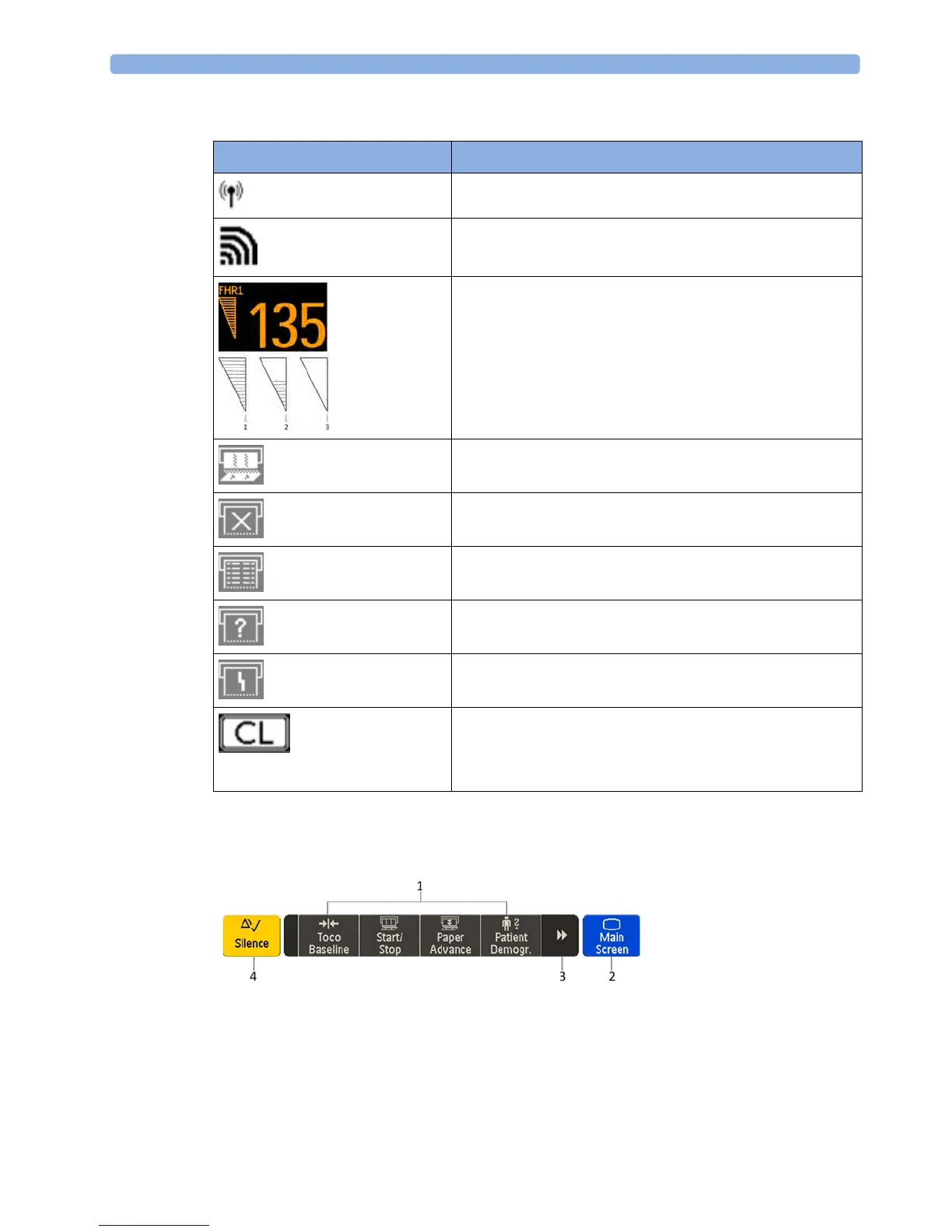

Key Area
Icon Description
The antenna symbol indicates a cableless measurement
(Avalon CL or Avalon CTS).
Indicates a short range radio measurement (CL Pods).
Signal quality indicator:
1 Good
2 Acceptable
3 Poor
Fetal trace recorder - status indicator
Fetal recorder is on
Fetal recorder is off (when Paper Save Mode is off)
Fetal recorder is off (when
Paper Save Mode is on)
There is a user-solvable recorder error (paper out, paper jam,
wrong paper scale set)
Fetal recorder is defective: call service
When an Avalon CL or Avalon CTS system is connected to the
monitor, a
CL symbol is shown. It changes with the states of the
connected cableless device see “Cableless Status Indication” on
page 95.
1 SmartKeys - these can vary according to your monitor's configuration
2 Main Screen - closes all open menus and windows and returns to main screen
3 Scroll to display more SmartKeys
4 Silence - acknowledges all active alarms by switching off audible alarm indicators
