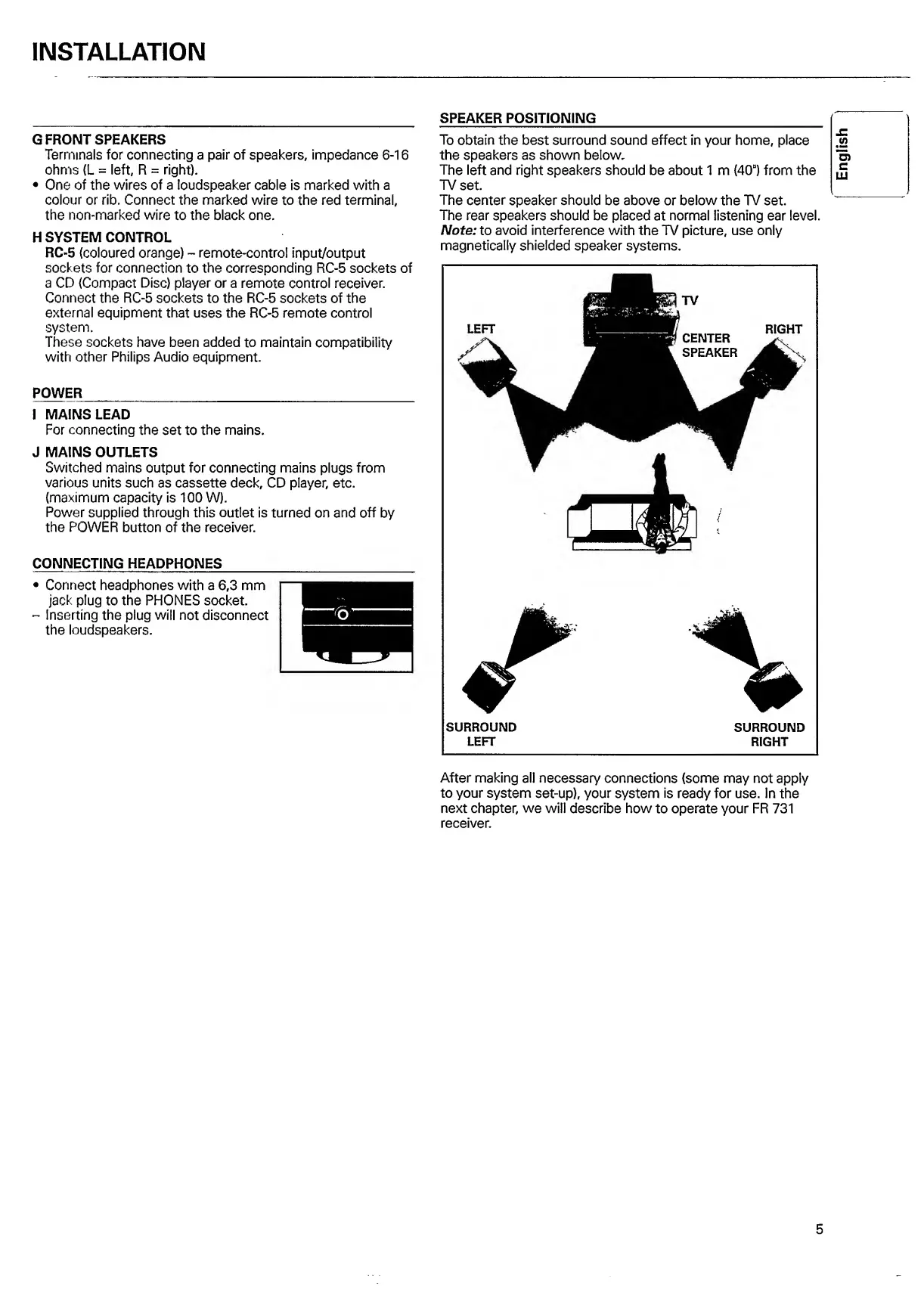

INSTALLATION
G FRONT SPEAKERS
Terminals for connecting a pair of speakers, impedance 6-16
ohms (L = left, R = right).
• One of the wires of a loudspeaker cable is marked with a
colour or rib. Connect the marked wire to the red terminal,
the non-marked wire to the black one.
H SYSTEM CONTROL
RC-5 {coloured orange) - remote-control input/output
sockets for connection to the corresponding RC-5 sockets of
a CD (Compact Disc) player or a remote control receiver.
Connect the RC-5 sockets to the RC-5 sockets of the
external equipment that uses the RC-5 remote control
system.
These sockets have been added to maintain compatibility
with other Philips Audio equipment.
POW ER_
I MAINS LEAD
For connecting the set to the mains.
J MAINS OUTLETS
Switched mains output for connecting mains plugs from
various units such as cassette deck, CD player, etc.
(maximum capacity is 100 W).
Power supplied through this outlet is turned on and off by
the POWER button of the receiver.
CONNECTING HEADPHONES
• Connect headphones with a 6,3 mm
jack plug to the PHONES socket.
- Inserting the plug will not disconnect
the loudspeakers.
SPEAKER POSITIONING _
To obtain the best surround sound effect in your home, place
the speakers as shown below.
The left and right speakers should be about 1 m (40“) from the
TV set.
The center speaker should be above or below the TV set.
The rear speakers should be placed at normal listening ear level.
Note: to avoid interference with the TV picture, use only
magnetically shielded speaker systems.
After making all necessary connections (some may not apply
to your system set-up), your system is ready for use. In the
next chapter, we will describe how to operate your FR 731
receiver.
