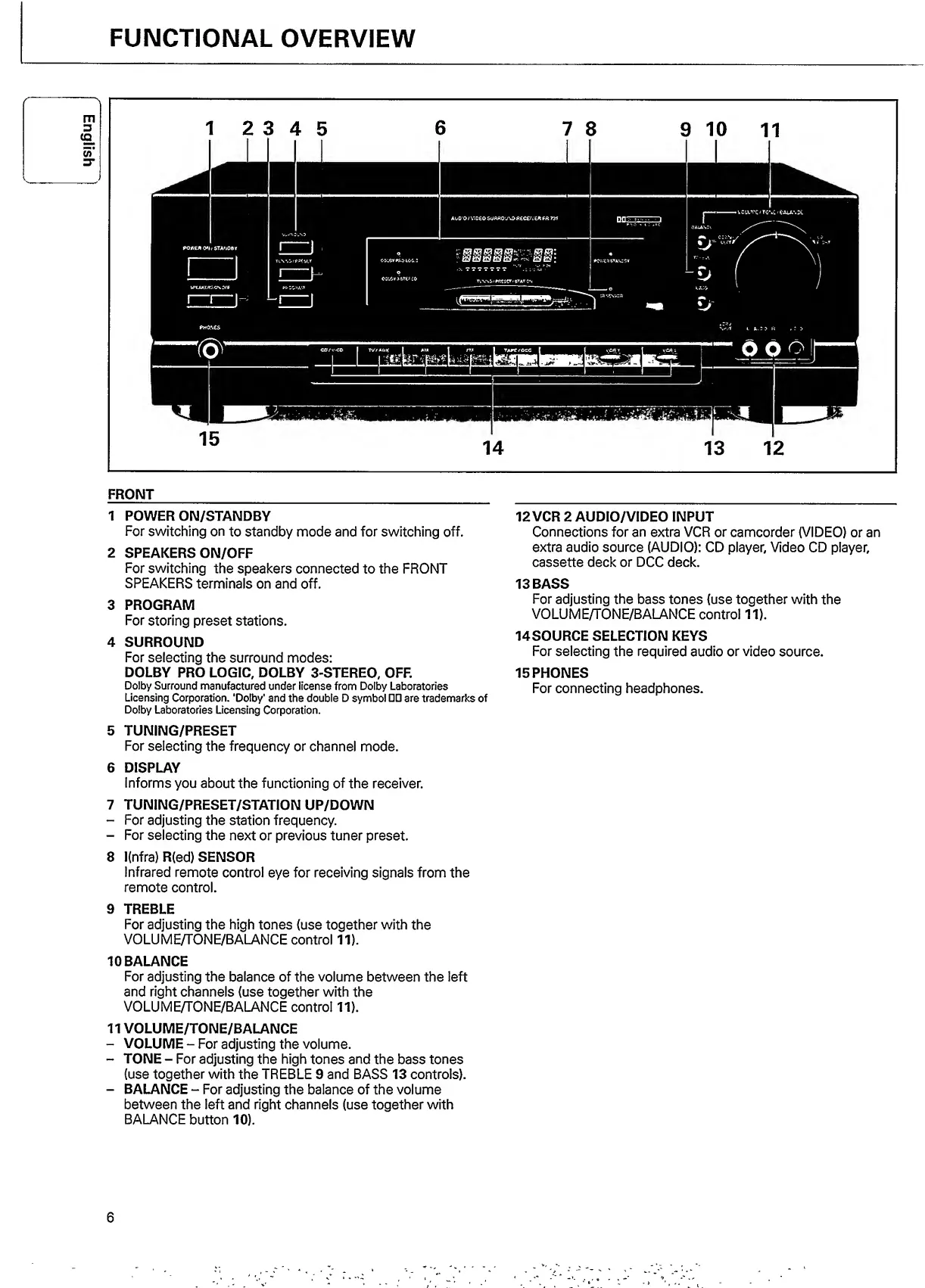

FUNCTIONAL OVERVIEW
r
12345 6 78 9 10 11
FRONT _
1 POWER ON/STANDBY
For switching on to standby mode and for switching off.
2 SPEAKERS ON/OFF
For switching the speakers connected to the FRONT
SPEAKERS terminals on and off.
3 PROGRAM
For storing preset stations.
4 SURROUND
For selecting the surround modes:
DOLBY PRO LOGIC, DOLBY 3-STEREO, OFF.
Dolby Surround manufactured under license from Dolby Laboratories
Licensing Corporation. ‘Dolby’ and the double D symbol □□ are trademarks of
Dolby Laboratories Licensing Corporation.
5 TUNING/PRESET
For selecting the frequency or channel mode.
6 DISPLAY
Informs you about the functioning of the receiver.
7 TUNING/PRESET/STATION UP/DOWN
- For adjusting the station frequency.
- For selecting the next or previous tuner preset.
8 l(nfra) R(ed) SENSOR
Infrared remote control eye for receiving signals from the
remote control.
9 TREBLE
For adjusting the high tones (use together with the
VOLUME/TONE/BALANCE control 11).
10 BALANCE
For adjusting the balance of the volume between the left
and right channels (use together with the
VOLUME/TONE/BALANCE control 11).
11 VOLUME/TONE/BALANCE
- VOLUME - For adjusting the volume.
- TONE - For adjusting the high tones and the bass tones
(use together with the TREBLE 9 and BASS 13 controls).
- BALANCE - For adjusting the balance of the volume
between the left and right channels (use together with
BALANCE button 10).
12 VCR 2 AUDIO/VIDEO INPUT
Connections for an extra VCR or camcorder (VIDEO) or an
extra audio source (AUDIO): CD player, Video CD player,
cassette deck or DCC deck.
13 BASS
For adjusting the bass tones (use together with the
VOLUME/TONE/BALANCE control 11).
14SOURCE SELECTION KEYS
For selecting the required audio or video source.
15PHONES
For connecting headphones.
