Philips FR980 - Page 55

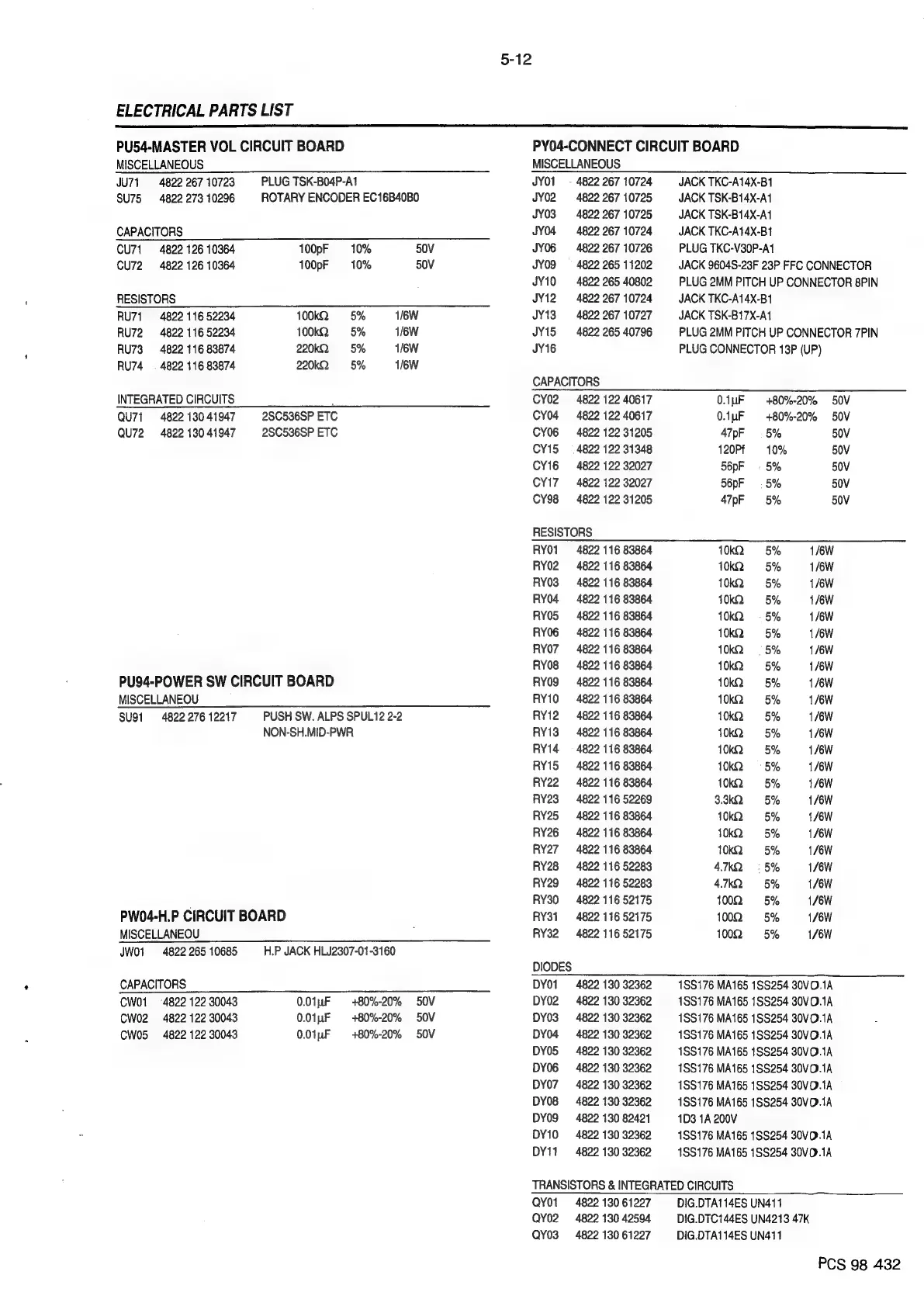

ELECTRICAL PARTS LIST
SS SSS ESSE ESE Ss PS A SE ESE
PU54-MASTER VOL CIRCUIT BOARD
MISCELLANEOUS
JU71 4822 267 10723
SU75 4822 273 10296
PLUG TSK-BO4P-A1
ROTARY ENCODER EC16B40B0
CAPACITORS
CU71 4822 126 10364 100pF 10% 50V
CU72 4822 126 10364 100pF 10% 50V
RESISTORS
RU71 4822 116 52234 100k22 5% 1/6W
RU72 4822 116 52234 100kKQ 5% 1/6W
RU73 4822 116 83874 220kKQ2 5% 1/6W
RU74 = 4822 116 83874 220K2 5% 1/6W
INTEGRATED CIRCUITS .
QU71 4822 130 41947 28C536SP ETC
QU72 4822 130 41947 28C536SP ETC
PU94-POWER SW CIRCUIT BOARD
MISCELLANEOU
SU91 4822 276 12217
PUSH SW. ALPS SPUL12 2-2
NON-SH.MID-PWR
PW04-H.P CIRCUIT BOARD
MISCELLANEOU
JWO1 4822 265 10685 H.P JACK HLJ2307-01-3160
CAPACITORS
CW01 4822 122 30043 O.01pF +80%-20% 50V
CW02 4822 122 30043 O.01pF +80%-20% 50V
CWO0S 4822 122 30043 O.01pF +80%-20% 50V
PY04-CONNECT CIRCUIT BOARD
MISCELLANEOUS
JY01 © 4822 267 10724 JACK TKC-A14X-B1
J¥02 4822 267 10725 JACK TSK-B14X-A1
JYO3 4822 267 10725 JACK TSK-B14X-A1
JY¥04 = 4822 267 10724 JACK TKC-A14X-B1
JYO6 = 4822 267 10726 PLUG TKC-V30P-A1
JYO9 = 4822 265 11202
JY¥10 4822 265 40802
JACK 9604S-23F 23P FFC CONNECTOR
PLUG 2MM PITCH UP CONNECTOR 8PIN
JY¥12 4822 267 10724 JACK TKC-A14X-B1
JY13 4822 267 10727 JACK TSK-B17X-A1
JY15 4822 265 40796 PLUG 2MM PITCH UP CONNECTOR 7PIN
JY16 PLUG CONNECTOR 13P (UP)
CAPACITORS
CY02 4822 122 40617 O.1pF +80%-20% 50V
CY04 4822 122 40617 O.1uF +80%-20% 50V
CY06 = 4822 122 31205 47pF = 55% 50V
CY15 = 4822 122 31348 120PF 10% 50V
CY16 4822 122 32027 56pF = 5% 50V
CY17 4822 122 32027 56pF = 55% 50V
CY98 = 4822 122 31205 47pF 5% 50V
RESISTORS
RY01 4822 116 83864 10kK2 5% 1/6W
RY02 4822 116 83864 10kKQ 5% 1/6W
RY03 4822 116 83864 10kKQ._ 5% 1/6W
RY04 4822 116 83864 10kK2 5% 1/6W
RY05 4822 116 83864 10KQ = 55% 1/6W
RY06 4822 116 83864 10kK2 5% 1/6W
RYO7 4822 116 83864 10K2 = 5% 1/6W
RY08 4822 116 83864 10KX 5% 1/6W
RY09 4822 116 83864 10kKQ. 5% 1/6W
RY10 4822 116 83864 10kQ2 5% 1/6W
RY12 4822 116 83864 10kKQ 5% 1/6W
RY13 4822 116 83864 10k 55% 1/6W
RY14 = 4822 116 83864 10kKQ 5% 1/6W
RY15 4822 116 83864 10kKQ = 5% 1/6W
RY22 4822 116 83864 10kKQ2 5% 1/6W
RY23 4822 116 52269 3.3kQ 5% 1/6W
RY25 4822 116 83864 10K 5% 1/6W
RY26 4822 116 83864 10kK2 55% 1/6W
RY27 4822 116 83864 10kKQ 55% 1/6W
RY28 4822 116 52283 47kKQ = 5% 1/6W
RY29 4822 116 52283 4.7kQ 5% 1/6W
RY30 4822 116 52175 1002 5% 1/6W
RY31 4822 116 52175 1002 5% 1/6W
RY32 4822 116 52175 1002 5% 1/6W
DIODES
DY01 4822 130 32362
DY02 4822 130 32362
DY03 4822 130 32362
DY04 4822 130 32362
DY05 4822 130 32362
DY06 4822 130 32362
DY07 4822 130 32362
DY08 4822 130 32362
DY09 4822 130 82421
DY10 4822 130 32362
DY11 4822 130 32362
188176 MA165 1SS254 30V0.1A
188176 MA165 1$S254 30V0.1A
188176 MA165 1$S254 30V0.1A
188176 MA165 1SS254 30V0.1A
188176 MA165 1SS254 30V0.1A
188176 MA165 1SS254 30VO.1A
188176 MA165 1SS254 30V0.1A
188176 MA165 1SS254 30V0.1A
1D3 1A 200V
188176 MA165 1SS254 30V0.1A
188176 MA165 1SS254 30V0.1A
TRANSISTORS & INTEGRATED CIRCUITS
QY01 4822 130 61227 DIG.DTA114ES UN411
QY02 4822 130 42594 DIG.DTC144ES UN4213 47k
QY03 4822 130 61227 DIG.DTA114ES UN411
PCS 98 432
