Philips FW-C577 - Wiring

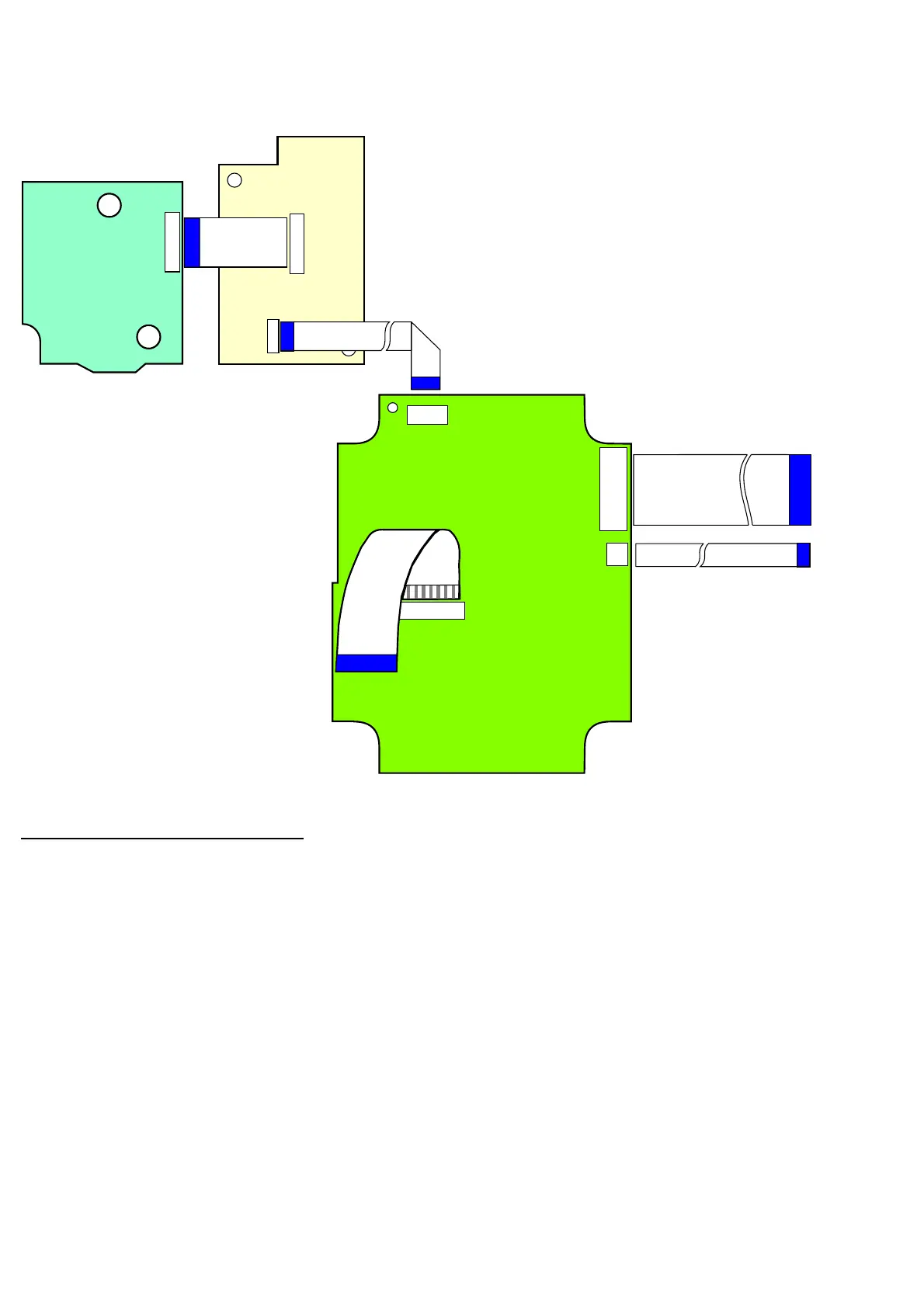

Wiring Diagram 5DTC Module
10-6
5DTC Wiring Diagram CD Version 2002 10 14
8001
8052
dig.out (optional)
to / from
AF Board
to / from
CD-drive
1825
1800
1824
1802
1801
1823
Control Board
Motor Board
CD Board
8021
The FFC-Cables are available as sparepart.
8001 3103 308 93090 FFC CABLE 16Pin 80mm BD Connection from CD Board to CD Drive
8052 3103 308 93120 FFC CABLE 8Pin 80mm BD Connection from CD Board to Control Board
8021 3103 308 93110 FFC-CABLE 16Pin 60mm AD Connection from Control Board to Motor Board
