Philips FW-M567/21 - Page 2

MAINS
BOARD
L/R AMP. & SUPPLY
BOARD
MAINS SOCKET BOARD
VIDEO OUT
CINCH BOARD
TUNER
BOARD
AF11
BOARD
FRONT
DISPLAY
BOARD
VU
METER
BOARD
(R)
VU
METER
BOARD
(L)
FRONT CONTROL
BOARD
GAME PORT
BOARD
USB PC LINK
BOARD
USB LED
BOARD
IR EYE BOARD
ECO POWER
BOARD
HEADPHONE
BOARD
5DTC
MP3
BOARD
5DTC
CD BOARD
BO
A
R
D
5D
TC
C
O
NT
RO
L
5DTC KEY BOARD
1-2

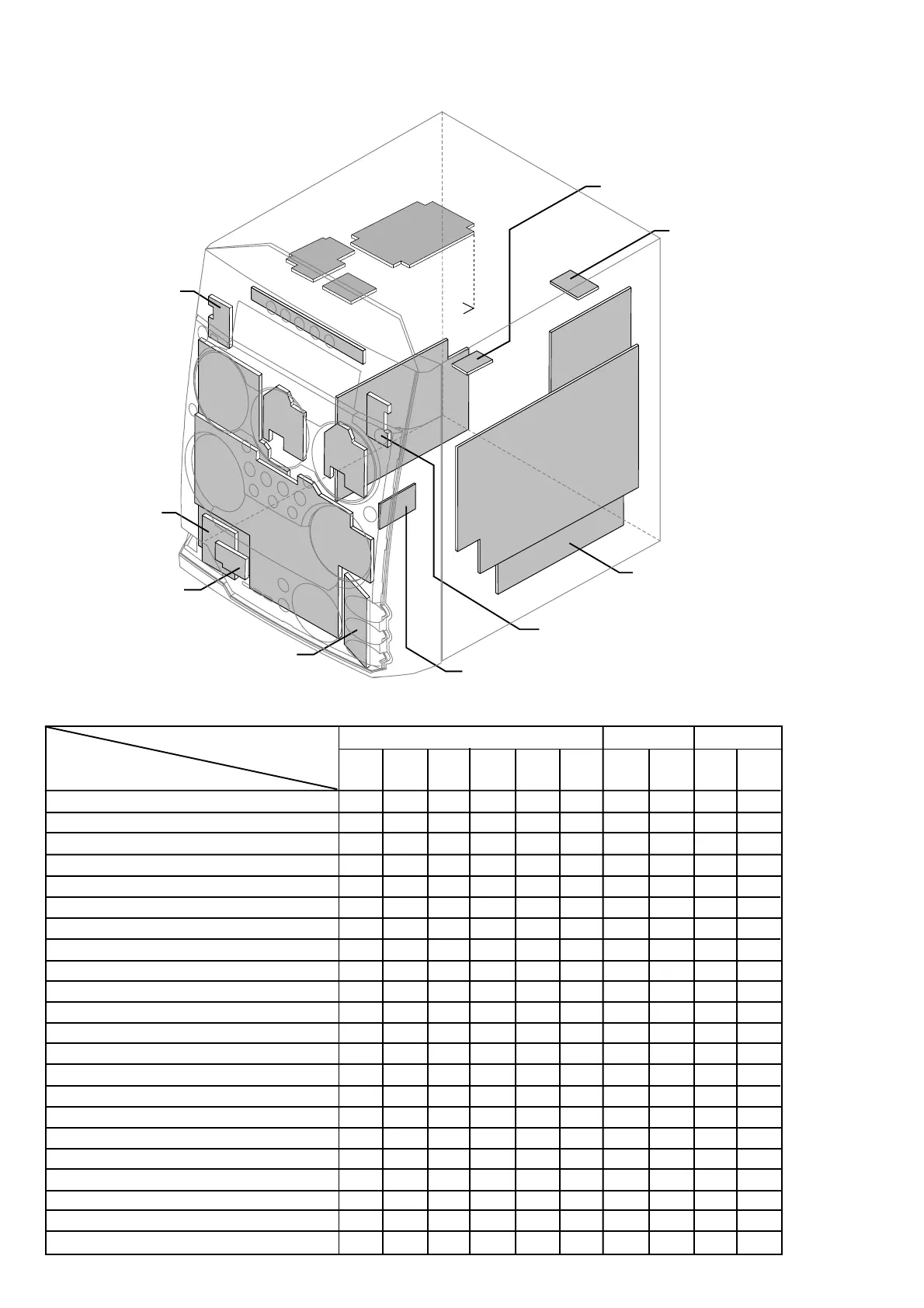

LOCATION OF PRINTED CIRCUIT BOARDS
/21 /22
Aux in / CDR in x x
Line Out
Video Out x x
Surround Out
Subwoofer Out
Power Booster Out
Digital Out
Digital in
Matrix Surround
RDS x
Dolby Pro Logic (DPL)
Incredible Surround
Karaoke Features
Voltage Selector x
ECO Power Standby (Clock Display Off) x x
ECO6 Tuner Board - Systems Non-Cenelec x
ECO6 Tuner Board - Systems Cenelec x
USB PC LINK x x
Game Port (Video / Audio L / Audio R) x x
VERSION VARIATIONS:
Type /Versions: FW-M567
Features &
Board in used:
