ELECTRICAL PARTS LIST - AF11 BOARD
MISCELLANEOUS
1206 4822 267 11039 Flex Connector 11P
1401 4822 265 11553 Flex Connector 19P
1402 2422 025 14518 Flex Connector 9P
1501 4822 265 20553 Cinch Socket - Aux in
1520 4822 265 11515 Flex Connector 8P
1523 4822 265 10981 Flex Connector 15P
1531 4822 267 10953 Flex Connector 7P
1603 4822 267 10733 Flex Connector 4P
1692 4822 265 11515 Flex Connector 8P
1803 4822 267 31996 Cinch Socket - Video out
CAPACITORS
2201 4822 124 40207 100uF 20% 25V
2202 4822 124 81151 22uF 50V
2203 4822 124 40433 47uF 20% 25V
2204 4822 124 40196 220uF 20% 16V
2205 4822 126 14238 2,2nF 50V
2206 3198 017 42230 22nF 50V
2207 4822 124 40433 47uF 20% 25V
2209 4822 124 40433 47uF 20% 25V
2214 4822 124 40433 47uF 20% 25V
2215 4822 122 33752 15pF 5% 50V
2216 2238 586 59812 100nF 50V
2401 2020 552 94427 100pF 5% 50V
2402 2020 552 94427 100pF 5% 50V
2403 2238 586 59812 100nF 50V
2404 2238 586 59812 100nF 50V
2501 4822 126 13881 470pF 5% 50V
2502 4822 126 13881 470pF 5% 50V
2503 4822 124 40756 1uF 20% 100V
2504 4822 124 40756 1uF 20% 100V
2505 2020 552 94427 100pF 5% 50V
2506 2020 552 94427 100pF 5% 50V
2507 2238 586 59812 100nF 50V
2511 4822 124 40756 1uF 20% 100V
2512 4822 124 40756 1uF 20% 100V
2513 3198 016 31020 1nF 25V
2514 3198 016 31020 1nF 25V
2515 2020 552 94427 100pF 5% 50V
2516 2020 552 94427 100pF 5% 50V
2521 2238 586 59812 100nF 50V
2522 2238 586 59812 100nF 50V
2523 2020 552 94427 100pF 5% 50V
2524 2020 552 94427 100pF 5% 50V
2531 4822 124 40769 4,7uF 20% 100V
2532 4822 124 40769 4,7uF 20% 100V
2533 2020 552 94427 100pF 5% 50V
2534 2020 552 94427 100pF 5% 50V
2535 4822 124 40769 4,7uF 20% 100V
2536 4822 124 40769 4,7uF 20% 100V
2541 4822 124 41407 0,47uF 20% 63V
2542 4822 124 41407 0,47uF 20% 63V
2543 4822 126 14549 33nF 16V
2544 4822 126 14549 33nF 16V
2546 4822 121 10686 4,7nF 10% 50V
2547 5322 126 11579 3,3nF 10% 63V
2548 5322 126 11579 3,3nF 10% 63V
2565 4822 121 10686 4,7nF 10% 50V
2567 3198 016 31020 1nF 25V
2568 3198 016 31020 1nF 25V
2589 4822 121 42408 220nF 5% 63V
2590 4822 121 42408 220nF 5% 63V
2591 4822 121 51252 470nF 5% 63V
2592 4822 121 51252 470nF 5% 63V
2593 4822 121 51252 470nF 5% 63V
2594 4822 121 51252 470nF 5% 63V
2601 3198 016 31020 1nF 25V
2602 3198 016 31020 1nF 25V
2603 4822 121 51252 470nF 5% 63V
2604 4822 121 51252 470nF 5% 63V
2605 2020 552 94427 100pF 5% 50V
2606 2020 552 94427 100pF 5% 50V
2607 4822 126 13881 470pF 5% 50V
2608 4822 126 13881 470pF 5% 50V
2609 2020 552 94427 100pF 5% 50V
2610 2020 552 94427 100pF 5% 50V
2611 4822 124 40764 22uF 100 V
2612 4822 124 40764 22uF 100 V
2621 4822 124 40248 10uF 20% 63V
2622 2020 552 94427 100pF 5% 50V
2624 4822 126 14494 22nF 10% 25V
2625 4822 124 41584 100uF 20% 10V
2626 4822 124 40248 10uF 20% 63V
2641 3198 016 31020 1nF 25V
2642 3198 016 31020 1nF 25V
2653 2020 552 94427 100pF 5% 50V
2654 2020 552 94427 100pF 5% 50V
2669 2238 586 59812 100nF 50V
2681 4822 124 40433 47uF 20% 25V
2682 4822 122 33752 15pF 5% 50V
2683 2238 586 59812 100nF 50V
2691 2020 552 94427 100pF 5% 50V
2707 2020 552 94427 100pF 5% 50V
2708 2020 552 94427 100pF 5% 50V
2771 4822 124 41407 0,47uF 20% 63V
2820 4822 124 40196 220uF 20% 16V
2885 5322 122 32531 100pF 5% 50V
2901 2020 561 90365 100nF +80/-20% 50V
2905 4822 126 14494 22nF 10% 25V
2908 2238 586 59812 100nF 50V
2922 2020 552 94427 100pF 5% 50V
2927 4822 126 14043 1uF +80/-20% 16V
123
123
A
B
A
B
1800 B3 1803 B1 1809 A1 2885 A1
1
1800
EH-B
1
2
1809
2
1
100p
2885
YKC21-3564
1803
3
3139 118 56710...8239_210_94644 for 3507 pt4 dd wk0310
Note : Some values may varies, see respective
parts list for correct value.
This assembly drawing shows a summary of all possible
versions. For components used in a specific version see
schematic diagram and respective parts list.
3139 113 3507 pt4 dd wk0310
This assembly drawing shows a summary of all possible
versions. For components used in a specific version see
schematic diagram and respective parts list.
3139 113 3507 pt4 dd wk0310

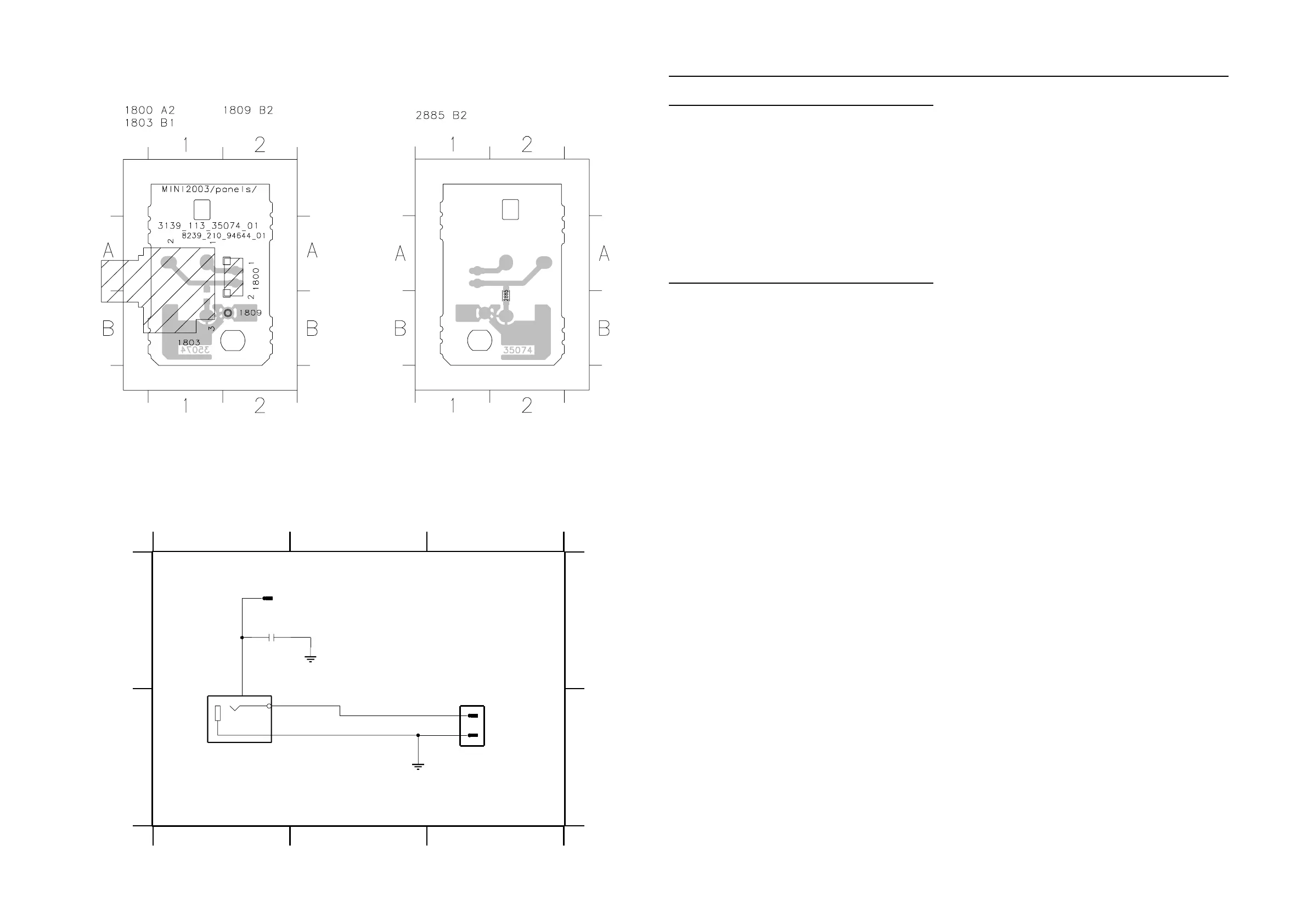

VIDEO OUT CINCH BOARD -
