Philips GC7530 - Disassembly Advice - Iron; Wiring at Rear HOUSING

GC7530
2-8
BACKPLATE 18
HOSE CORD ASSY 19
Remove Screw A
Disassemble BACKPLATE 18
Remove Screw B1, B2
Remove Clamping plate
Remove Power cord quick-connect S, E, L, N
Disassemble Steam hose
Disassemble HOSE CORD ASSY 19
Steam hose
S
Black
Hose clip(a)
Power cord
N
Blue
Clamping
plate
BlueGreen
NLE
B2
B1
Brown

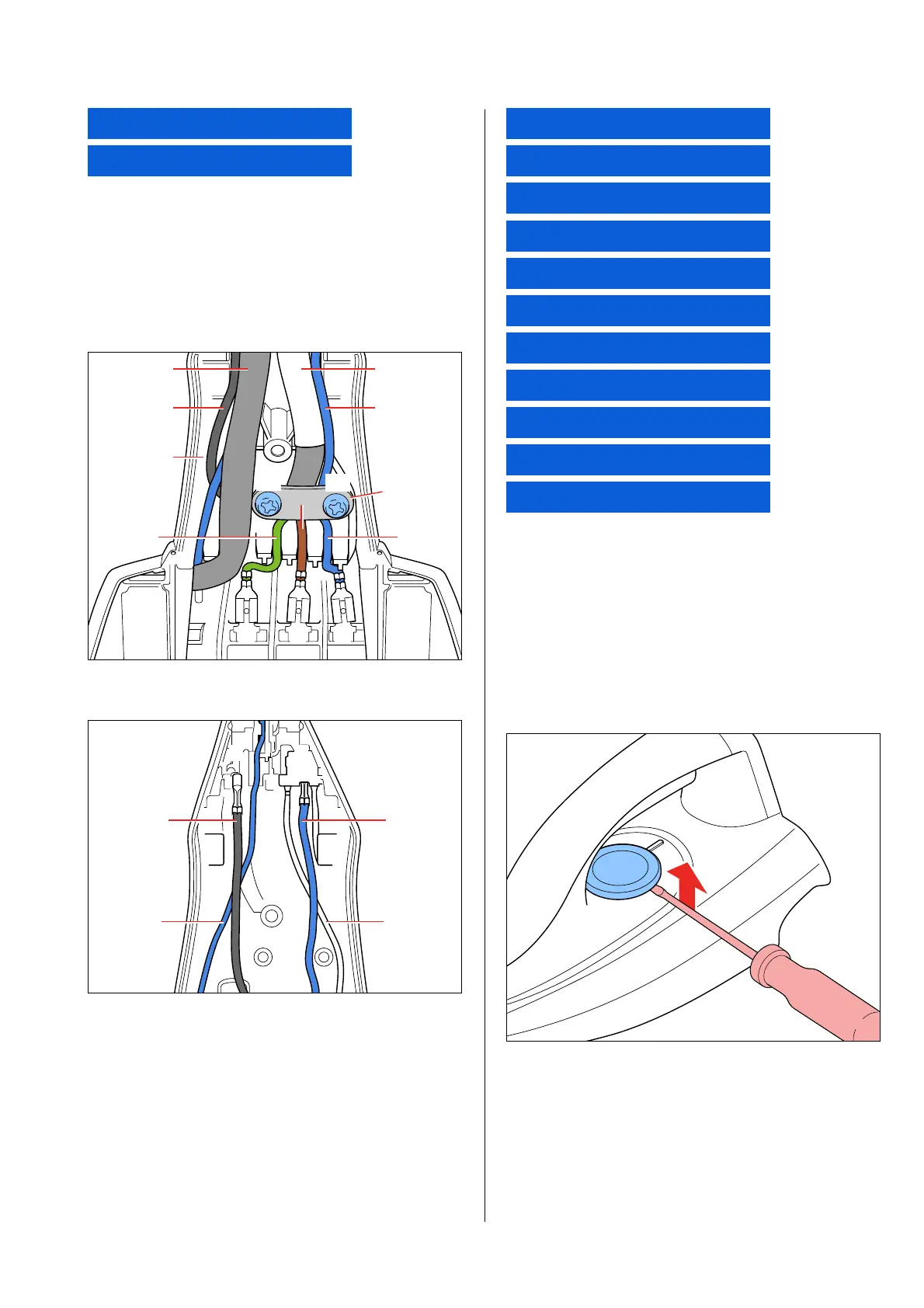

Fig 1. Wiring at rear HOUSING (Part 1)
Blue
(Micro switch)
Black
(Microswitch)
White
(Lamp assy)
Blue
(Lamp assy)
NS
Fig 2. Wiring at rear HOUSING (Part 2)
INLAY 17
STEAM LOCK 13
LAMP ASSY 8
MICROSWITCH ASSY 11
TRIGGER 12
THERMOSTAT DIAL ASSY 15
HOUSING PRINTED 10
SOLEPLATE COVER 6
THERMOSTAT BUSH 9
BRAIDED RUBBER HOSE 3
SOLEPLATE ASSY 1
Remove Screw A
Disassemble BACKPLATE 18
Release Inlay rear catch
Disassemble INLAY 17
Disassemble STEAM LOCK 13
Disassemble MICROSWITCH ASSY 11
Remove Screw C
Disassemble TRIGGER 12
Disassemble THERMOSTAT DIAL 15
Fig 3.
Remove Screws D1, D2, D3
Disassemble HOUSING PRINTED 10
Remove HOSE CLIP 4
Disassemble BRAIDED RUBBER HOSE 3
Remove Screws E1, E2, E3
Disassemble SOLEPLATE COVER 6
DISASSEMBLY ADVICE - IRON
