Philips GC7530 - Parts List - Iron & Electrical Diagram

GC7530
3-8
STAND IRON
L
N
Boiler Electronics
On/off switch
Steam select switch
Power LED 1x
Steam LED's 3x
Thermal
Fuse
Thermal
Fuse
Pump
Thermistor 1
L
N
L
S
N
M
Boiler
Heating
Element
Electro-
valve
Ther-
mostat
Trigger
Switch
Heating
Element

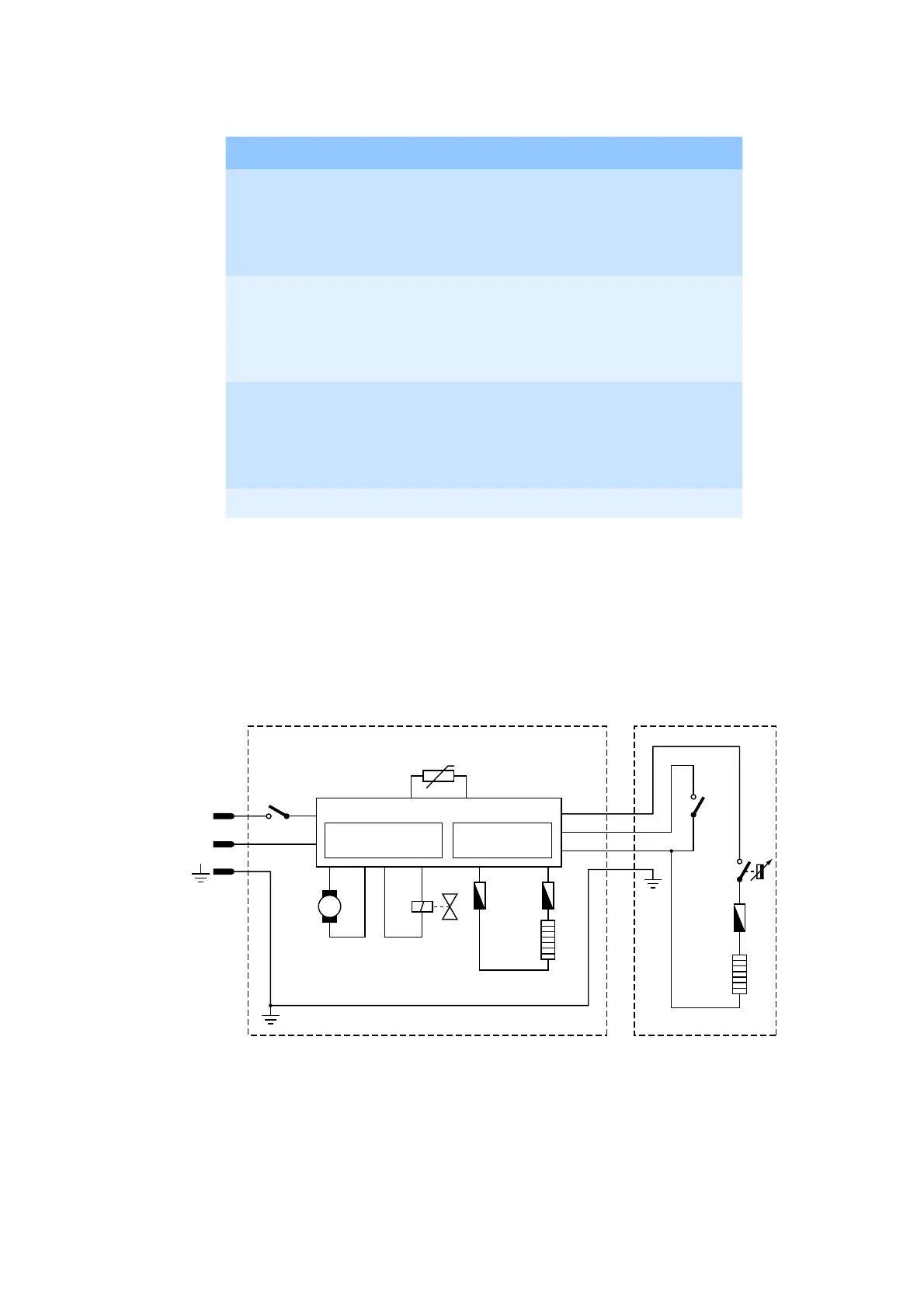

Fig 4. Electrical diagram
PARTS LIST - IRON & ELECTRICAL DIAGRAM
Pos Service code Description Remark
1
3
4
5
6
4239 021 68981
4239 015 59301
4239 010 10281
4239 015 70153
4239 026 48361
Soleplate assy 230 V
Braided rubber hose
Hose clip-braided rubber hose
Ryton ring
Soleplate cover
Steamglide-Non SOS
Purple
8
9
10
11
12
4239 021 36861
4239 026 13222
4239 021 68841
4239 021 31793
4239 026 48371
Lamp mounted assy
Thermostat bush
Housing printed
Microswitch assy
Trigger Fuchsia
13
14
15
17
18
4239 026 48561
4239 010 09293
4239 021 68851
4239 026 48391
4239 026 48401
Steam lock
Trigger spring
Thermostat dial assy
Inlay
Backplate
Fuchsia
Purple
Purple
Purple
19 4239 021 68871 Hose cord mounted assy
