Philips GC8030 User Manual

GC8030
THERMOSTAT DIAL 1
RATTLE SPRING 15
BACKPLATE 2
Disassemble DIAL 1
Remove Screw A
Remove Connection
Remove Hose
INLAY (SOS) 3
SOS KNOB 4
TRIGGER 14
IRON LAMP ASSY 5
MICRO SWITCH 6

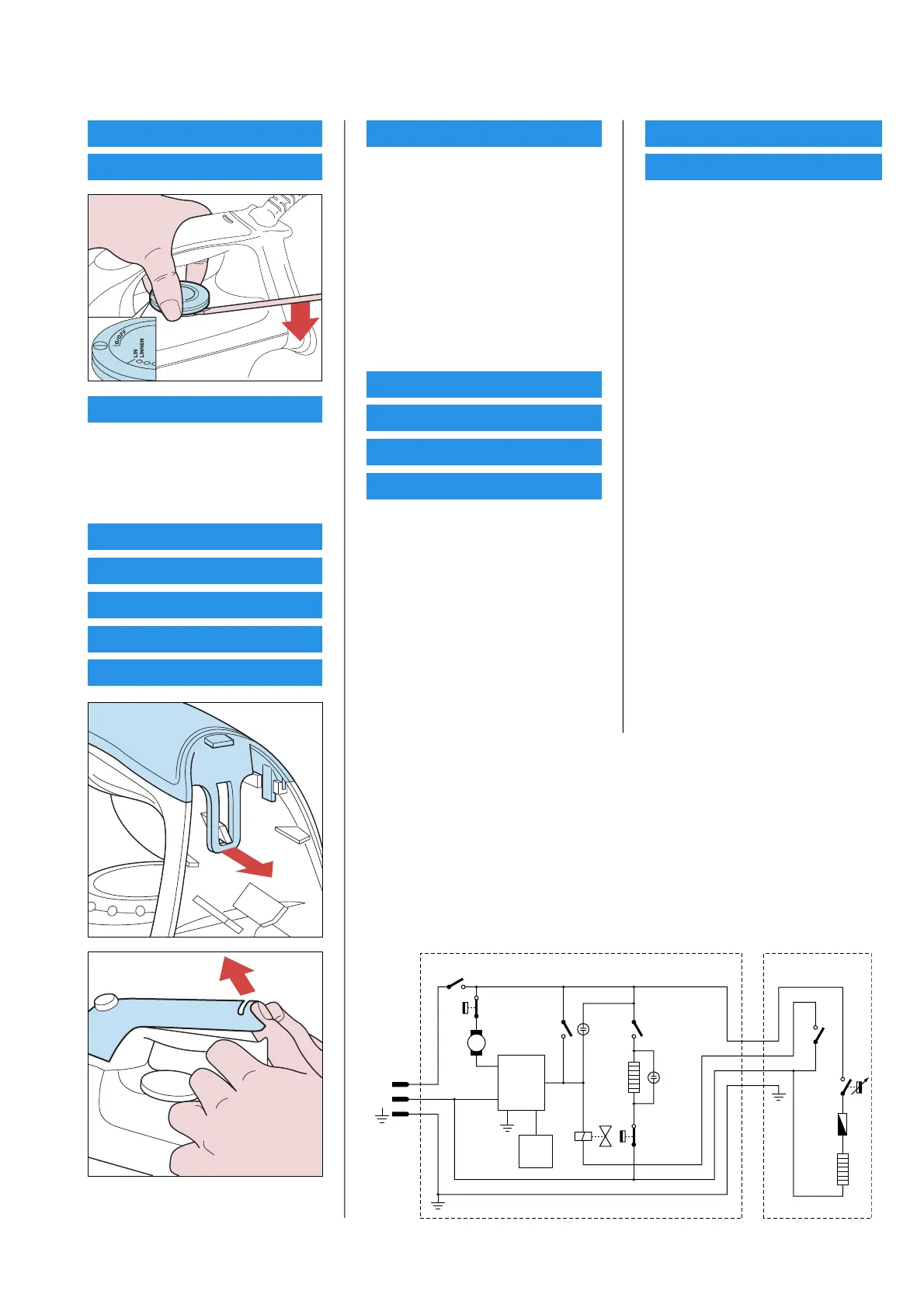

DISASSEMBLY ADVICE - IRON
REPAIR INSTRUCTIONS
- For disassembly, you will need a Torx screwdriver: 362 TR T20 x 100
OPTIONAL (accessories)
- No specific issues
HANDLE PRINTED 7
Disassemble DIAL 1
Remove Screw A
Remove Connection
Remove Hose
Disassemble BACKPLATE 2
Disassemble INLAY (SOS) 3
SOS KNOB 4
IRON LAMP ASSY 5
MICRO SWITCH 6
Remove Screws B (3 x)
HOSE-CORD ASSY 8
SWIVEL 9
STEAM DEVIATOR 10
THERMOSTAT BUSH 11
Disassemble DIAL 1
Remove Screw A
Remove Connection
Remove Hose
Disassemble BACKPLATE 2
Disassemble INLAY (SOS) 3
SOS KNOB 4
IRON LAMP ASSY 5
MICRO SWITCH 6
Remove Screws B (3 x)
Disassemble HANDLE PRINTED 7
IRON COVER SPRAYED 12
SOLEPLATE ASSY 13
Disassemble DIAL 1
Remove Screw A
Remove Connection
Remove Hose
Disassemble BACKPLATE 2
Disassemble INLAY (SOS) 3
SOS KNOB 4
IRON LAMP ASSY 5
MICRO SWITCH 6
Remove Screws B (3 x)
Disassemble HANDLE PRINTED 7
Disassemble HOSE-CORD ASSY 8
SWIVEL 9
STEAM DEVIATOR 10
THERMOSTAT
BUSH 11
Remove Screws C (3 x)
STAND IRON
Electro-
valve
Pressure
Lamp
F
N
Boiler
Elec-
tronics
Boiler
Switch
Thermal
Fuse
Pump
P
N
L
S
N
L
E
M
Level
Sensor
S
Pump
Safety
Thermostat
Water
Level
Lamp
Boiler
Heating
Element
Reed
Switch
Pressostat
Boiler
Safety
Thermostat
Ther-
mostat
Heating
Element
2-6
