Philips GC8030 User Manual

GC8030

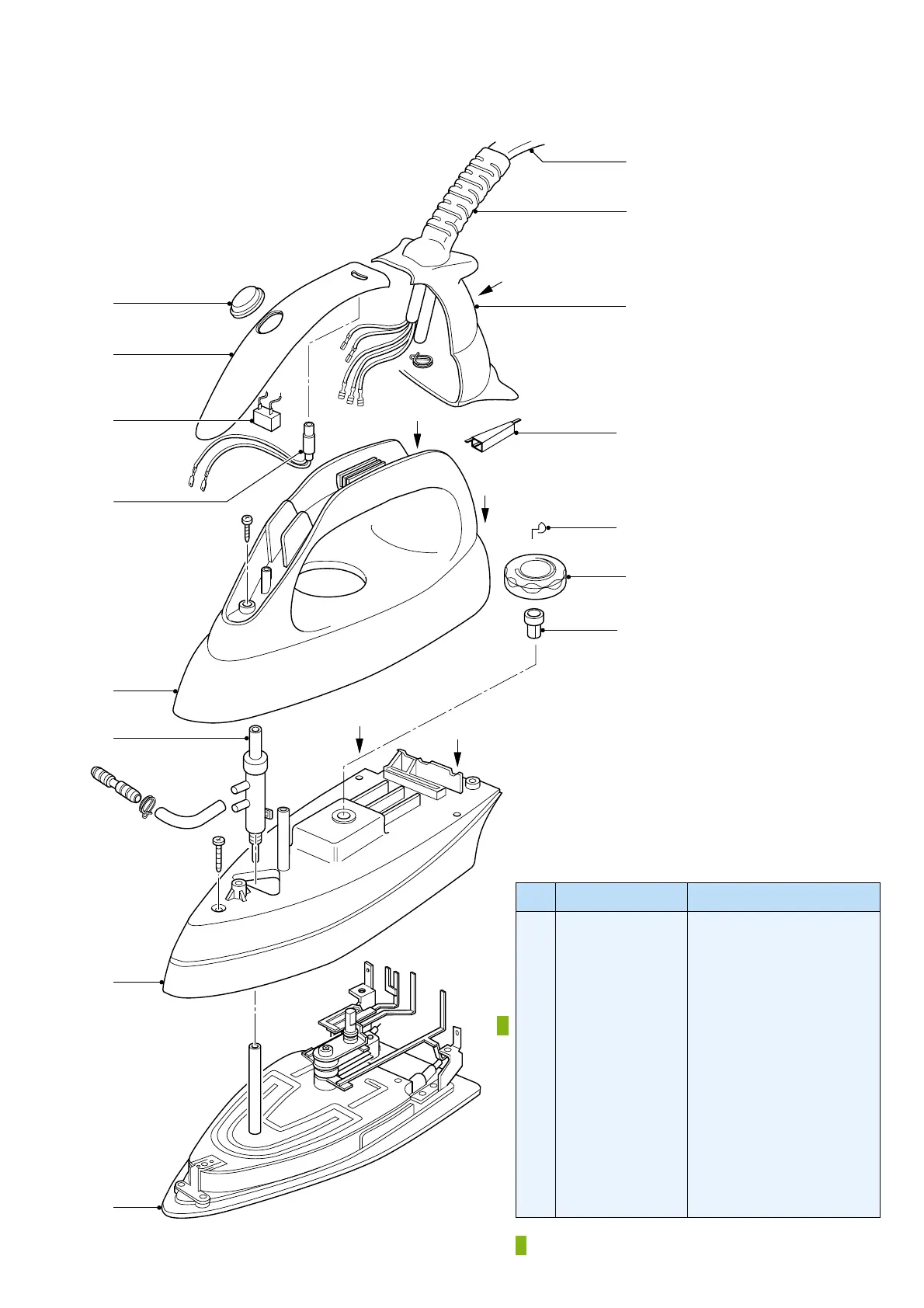

PARTS LIST & EXPLODED VIEW - IRON
3
4
7
10
12
13
6
5
1
14
15
11
2
B1
9
8
B2
A
B3
C1
C2
C3
3-6
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
4239 021 21950
4239 026 15690
4239 026 15680
4239 026 16940
4239 021 19630
4239 017 09170
4239 021 21940
4239 000 09140
4239 026 15580
4239 021 19620
4239 015 98410
4239 021 21930
4239 021 19510
4239 026 17060
4239 014 54060
Thermostat dial (Fre/Dut)
Backplate
Inlay (SOS)
SOS knob
Iron lamp assy
Microswitch
Handle printed
Hose-cord assy + microswitch
Swivel
Steam deviator assy
Thermostat bush
Iron cover sprayed
Soleplate assy 230V
Trigger
Rattle spring
= changed
