PARTS LIST - IRON & ELECTRICAL DIAGRAM
STAND IRON
L
N
Boiler Electronics
On/Off switch
Steam up switch
Steam down switch
Thermal
Fuse
Thermal
Fuse
L
N
L
S
N
Boiler
Heating
Element
Reed
Switch
Thermistor
1
Ther-
mostat
Heating
Element
Pump
M
Electro-
valve
Thermistor
2
Power LED x 1
Steam LEDs x 4
Tank Empty LED x 1
Rinse Reminder LED x1

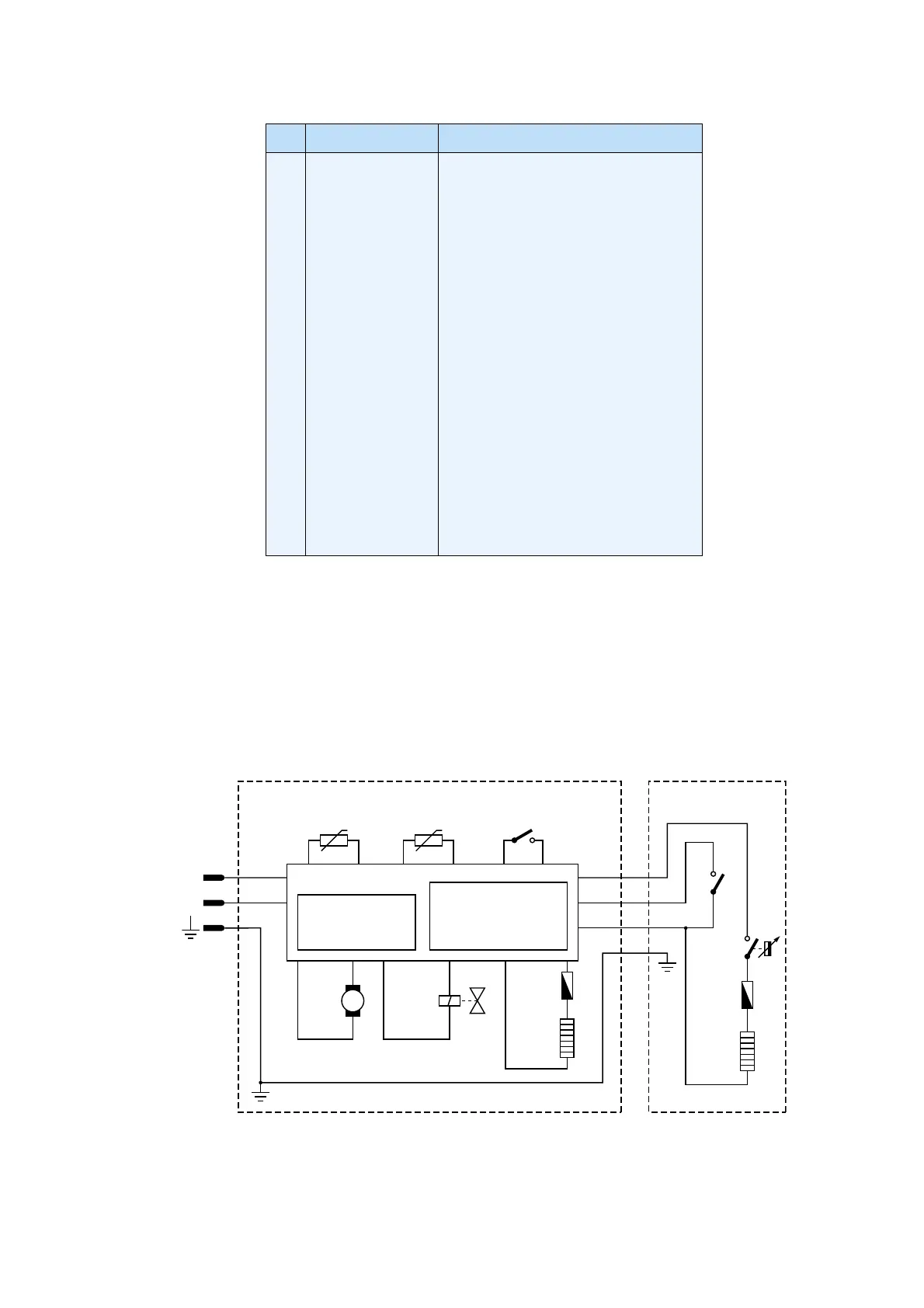

Fig 4 . Electrical diagram
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
4239 021 41330
4239 015 56120
4239 015 56510
4239 010 10110
4239 015 70150
4239 026 30452
4239 021 31780
4239 021 36861
4239 026 13220
4239 021 61281
4239 021 31790
4239 026 42111
4239 026 42121
4239 010 09290
4239 021 61151
4239 026 24181
4239 026 30461
4239 026 21890
4239 021 61491
Soleplate assy 230 V (Steamglide-SOS)
Rubber hose (SOS)
Rubber hose (dosing)
Hose clip
Ryton ring
Soleplate cover
Steam deviator assy
Lamp mounted assy
Thermostat bush
Housing printed (White)
Microswitch assy
Trigger (Dark Purple)
Steam lock (Purple)
Trigger spring
Thermostat dial assy (Purple)
SOS knob (Purple)
Inlay SOS (Purple)
Backplate (White)
Hose cord mounted assy
