Philips GC8375 - Parts List and Boiler Wiring Diagram; Stand and Boiler Parts Identification; Boiler Assembly Wiring Diagram

GC8375
6-8
PARTS LIST - STAND & BOILER WIRING DIAGRAM
Wire WE4: PCB-Fuse
Wire WE3: PCB-HE
Wire WE6: PCB-EV B
Wire WE5: PCB-EV A
Wire WE8: Earth-EV
Wire WE7:
HE Fuse
Electrovalve
Thermistor
Thermistor
Fuse
(Thermofuse)
Loctite
Darbond
620

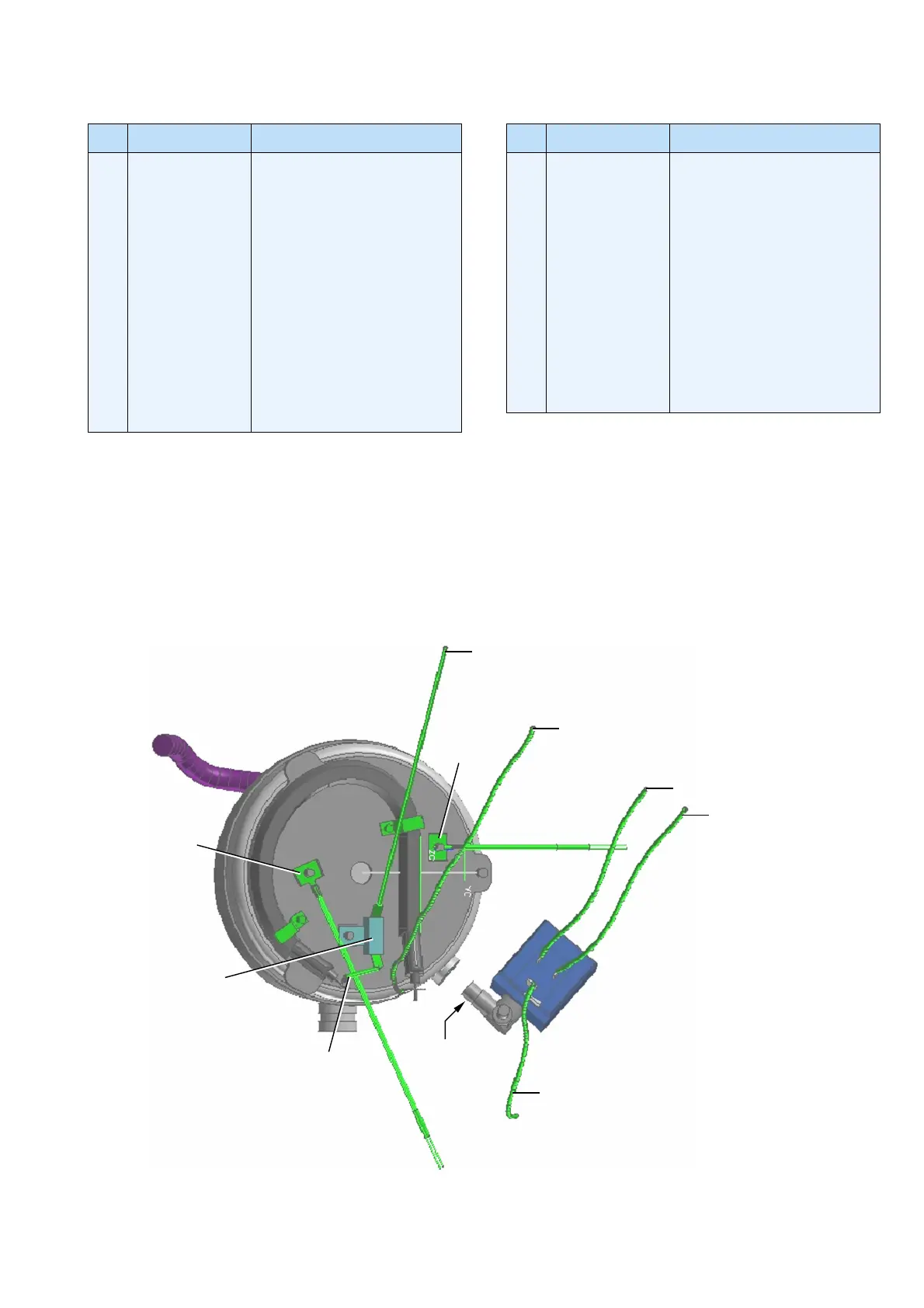

Fig 7 . Boiler Assy EE - Wiring Diagram
Abbreviations
HE : Heating Element
EV : Electrovalve
PCB : Power Board
Pos Service code Description
20
21
22
23
24
25
26
27
28
29
30
31
32
4239 021 61051
4239 017 10901
4239 010 11111
4239 021 74151
4239 021 74511
4239 026 26113
4239 026 26123
4239 021 32480
4239 010 10260
4239 021 74531
4239 026 21930
4239 021 74521
4239 015 59121
Boiler assy EE
Electrovalve
Electrovalve mesh
Stand bottom EE (8375)
Stand top assy (8375)
Spacer bottom
Spacer top
Pump assy
Inox clamp
Safety cap assy
Nipple plate
Front panel printed
Power button cap (8375)
Pos Service code Description
33
34
35
36
37
38
39
40
41
42
43
44
4239 021 31820
4239 015 56160
4239 021 31970
4239 026 52191
4239 015 59111
4239 015 56050
4239 026 52301
4239 000 11351
4239 021 56881
4239 021 74541
4239 015 58201
4239 026 42081
Reed switch assy
Braided rubber hose
Power board
BMC tray (8375)
Tray rubber cap front
Rinse rubber coupling
Rinse bush
Cordset EU
Control board
Water tank assy (8375)
O ring
De air valve
