Philips GC8520 - Stand Exploded View - Outer Components; Stand Assembly Exploded View; Stand Screw Specifications

GC8520
6-7

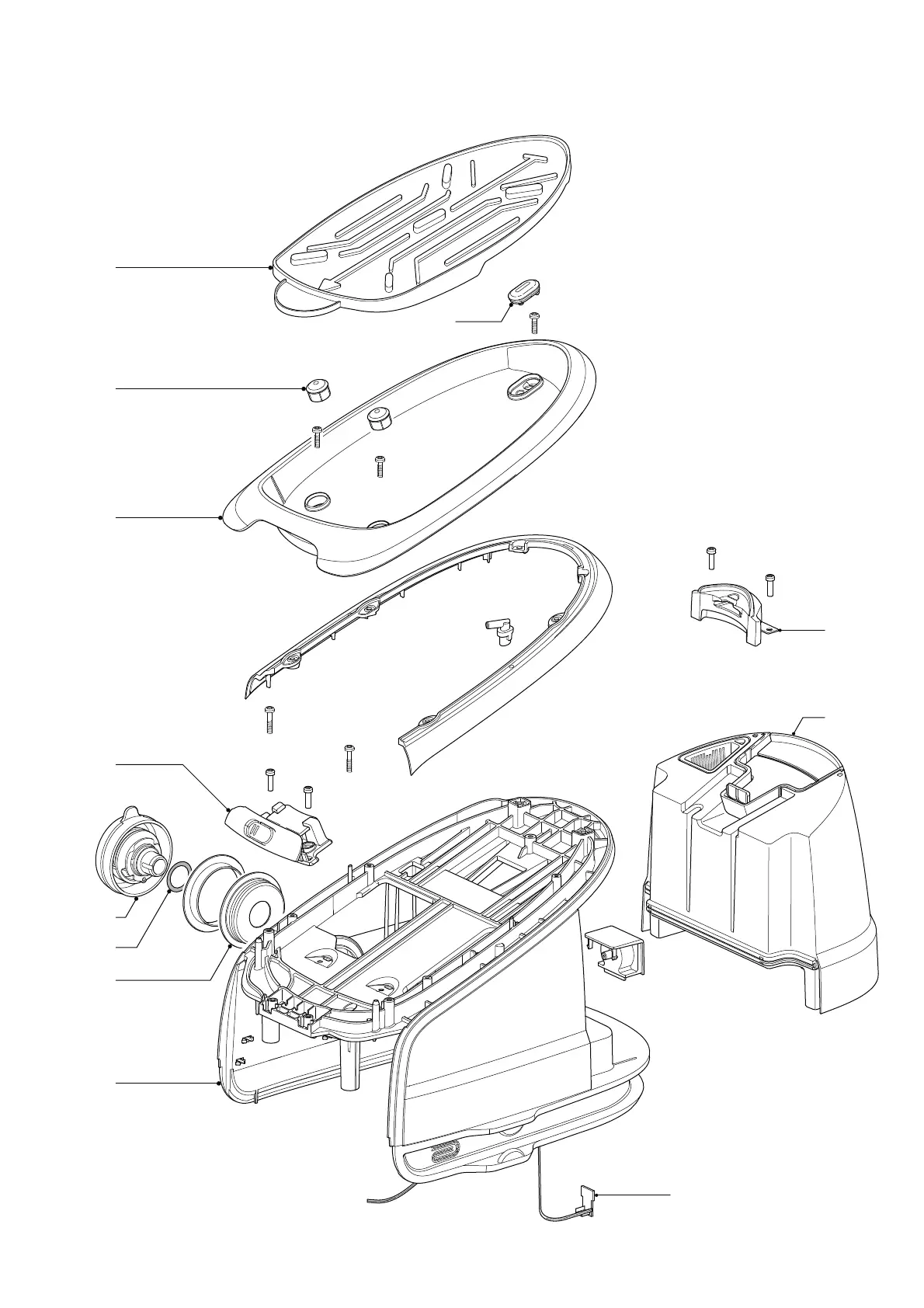

EXPLODED VIEW - STAND
52
58
57
48
44
56
51
50
43
55
59
53
J1
J3
J2
N1
K1
K2
N2
U2
U1
Screw Dimension
J,K,L,U Ø 3.5 mm x 13 mm
M,N,P,Q,R M3.5 mm x 18 mm
S Ø 2.6 mm x 14 mm
T M3.5 mm x 22 mm
