GC9220
8-12

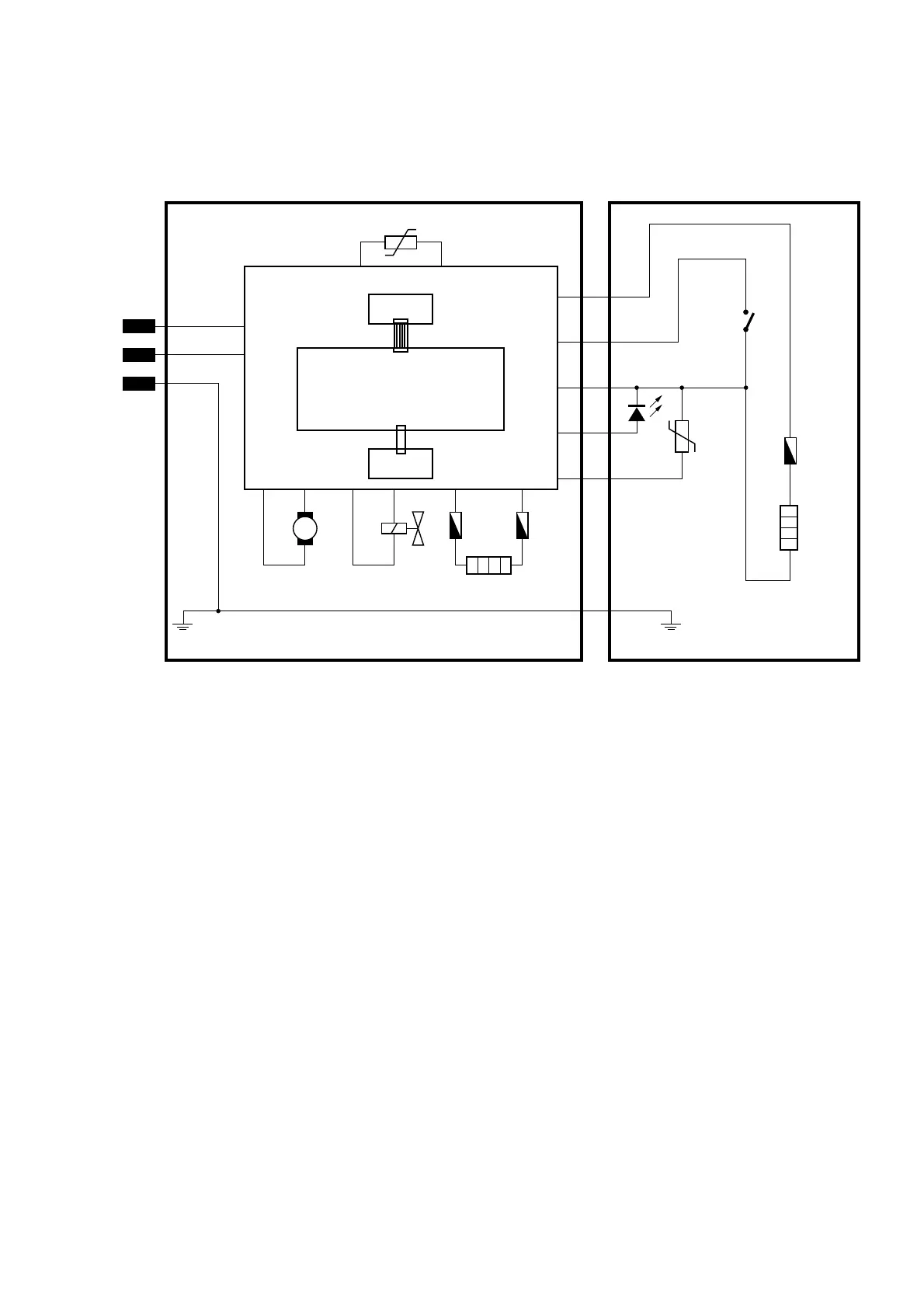

ELECTRICAL BLOCK DIAGRAM
Iron
LED
STAND IRON
Power Board
L
L
Stand Electronics
Hall Sensor
Board
UI Board
Thermistor
Pump Steam
E-valve
Boiler Heating
Element
Thermal
Fuse
M
N
N
N
L
E
E
E
Thermistor
Trigger
Switch
Iron
Heating
Element
Thermal
Fuse
