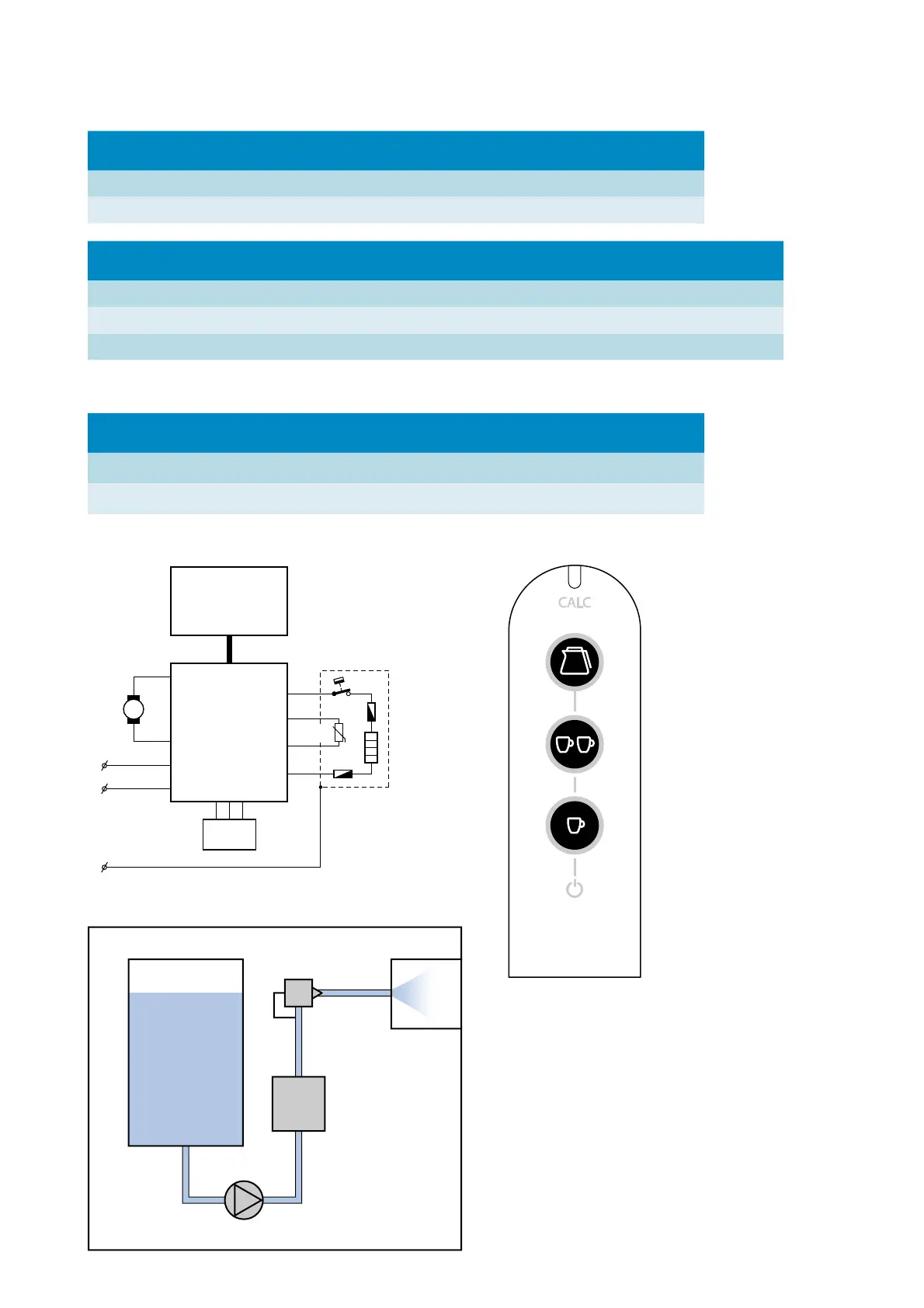

Philips HD7892/60 - Electrical Diagram; User Interface Layout; Functional Diagram

HD7892/60 /61
2-15
Technical information
General co ee speci cations:
In-cup volume (mL) 1-cup (ml) 2-cup (ml)
General version 122 244
French version 100 200
Temperature indication (°C) 1
st
cup temperature 2
nd
and further cup temperature
General version (122 ml) > 74 °C > 76 °C
French version (100 ml) > 69 °C > 73 °C
Measured in full Jug (7 cups) ≥ 80 °C
Measurement speci cation
Water spec (without pod, in mL) Western Europe (ml) French (ml)
1-cup (with 1-cup pod holder) 133 ± 10 109 ± 10
2-cup (with 1-cup pod holder) 266 ± 20 218 ± 20
Electical diagram
P
NTC
Fuse
Fuse
TCO
Water level
sensor
N
E
L
Boiler
Pump
UI
PCBA
Main
PCBA
-t
Functional diagram
Boiler
Pump
1-way valve
Brew
head
g
h
e
d
f
c
b
a
Water
Container
User interface layout
