Philips HD7892/60 - Housing Removal; PCBA Replacement

HD7892/60 /61
4-15
Disassembly- and Reassembly advice

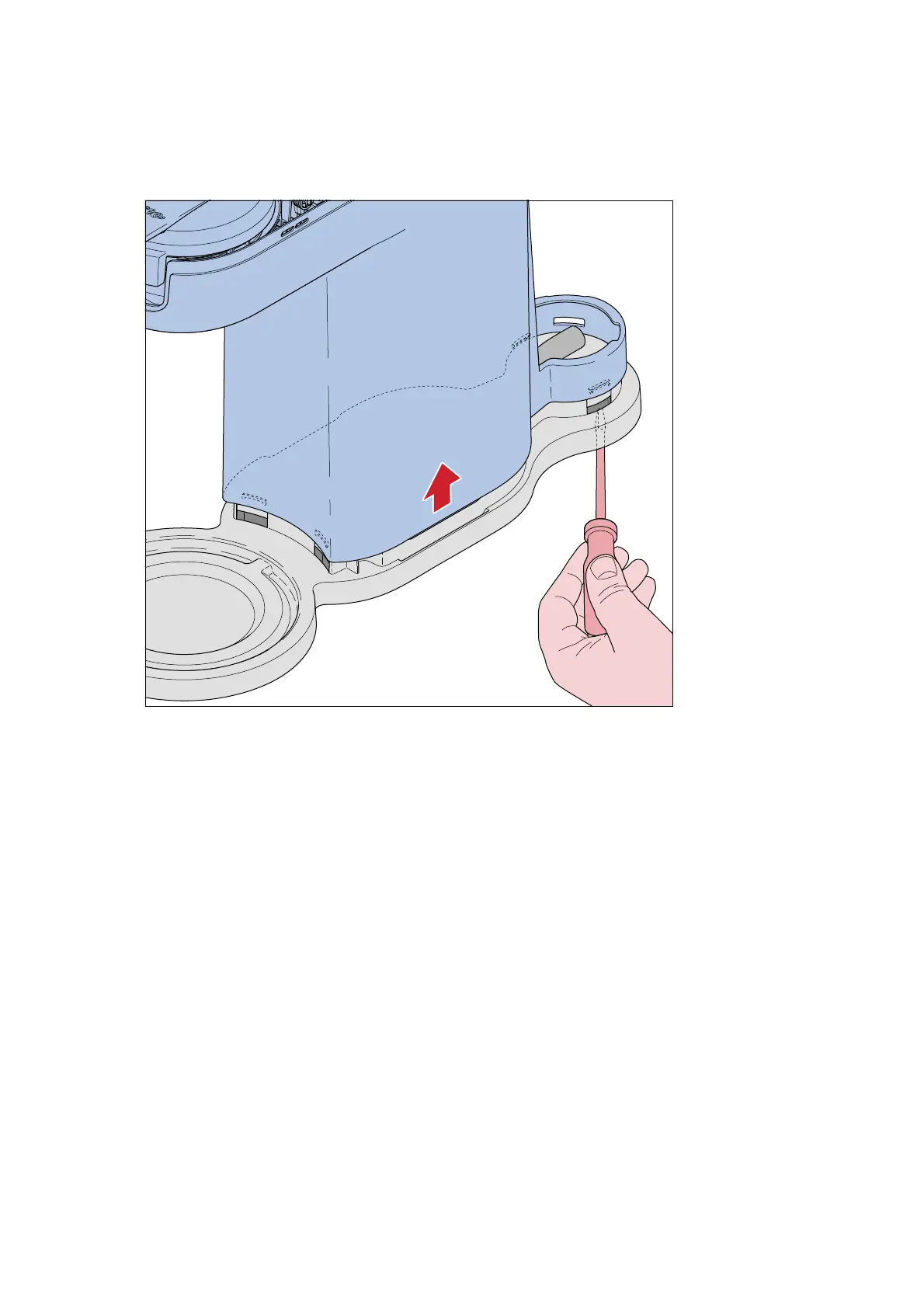

2.3. Remove the housing.
To remove the housing, start at the back side and undo the clicks (1) on either side of the back plate, next undo the
snaps on the front of the housing (2), undo them with a  athead screwdriver. Make sure that none of the snaps snap
back.
Remove the housing upwards from the rest of the appliance, but mind  at cable running through the guide on the
inside of the housing and the water level sensor still connected to the inside of the housing.
You can now access the Boiler and Pump, to remove them, undo the electrical connections and hoses, and reinstall in the
reverse order. Any Ty-wrap that has been removed needs to be replaced by a new one, and tightened with the speci ed
forces.
3. To replace the PCBA.
3.1. Unscrew the inner frame.
Unscrew the two screws (D, T15) holding the inner frame in place, take special care to note the proper wire routing,
and make sure reinstalling the PCBA will be done in an identical way.
1
1
2
2
