Philips HD9220/20 - Repair Instructions

HD9220/20 /21 /22 /23 /24
4-10
REPAIR INSTRUCTIONS
General remark;

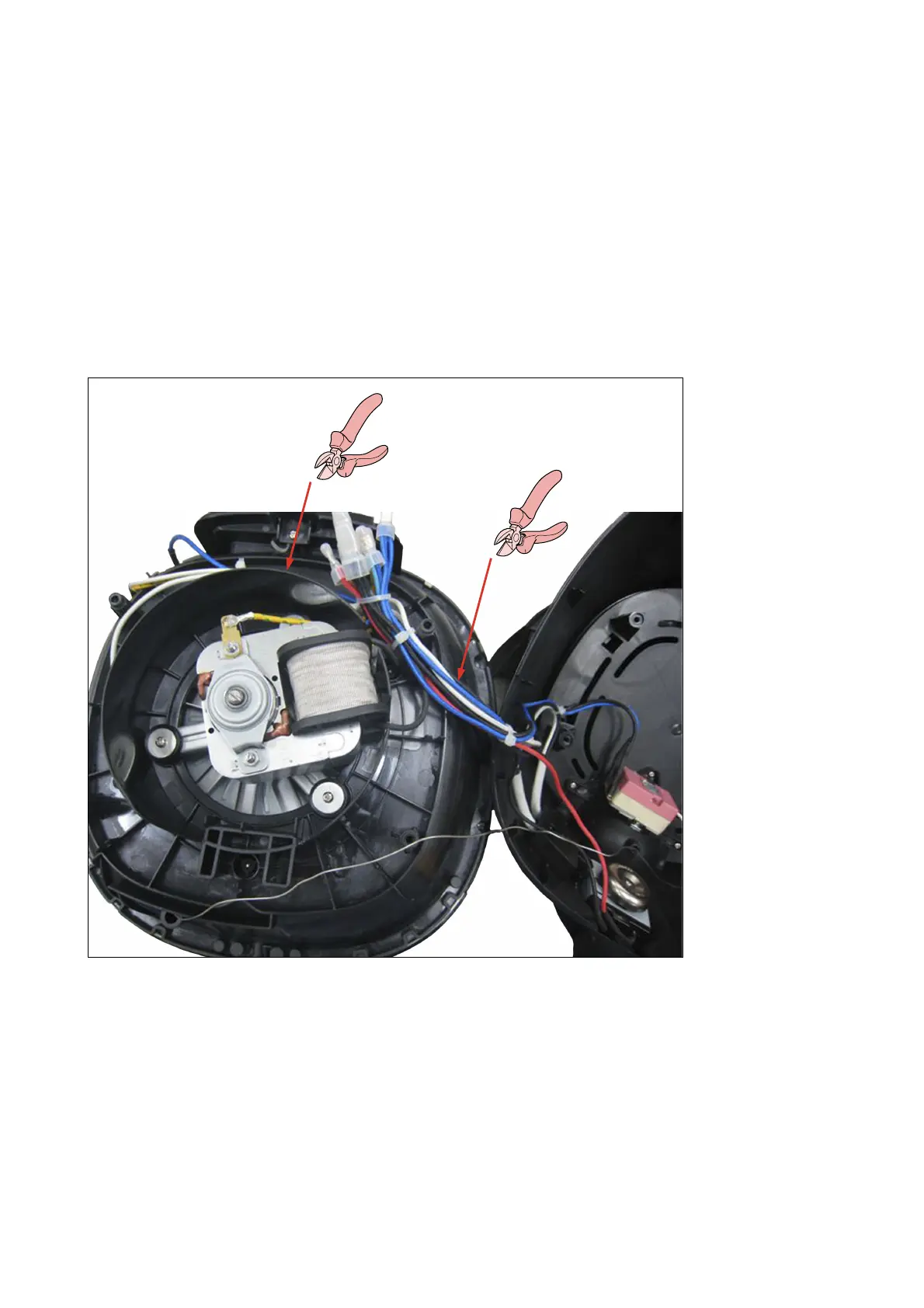

When you need to disconnect a wire from the crimp housing, please cut the wire half way (See  in the picture below) and
always connect the wires with a new 2 wire crimp housing 4222 459 51851. To crimp the housing use the Lobster AK25 No2 or
Muromoto Tekko MR30A Nr 2 with Air pressure = 6 kg/cm².
Crimp instruction CE2
1) Strip wires: 16mm (0.63 in) Max.
13mm (0.51) Min.
2) Twist the wires together along the entire length of the strip and insert them into crimp housing .
3) Center the crimp tool on the sleeve.
4) Crimp the housing with 6 kg/cm².
Route the wire route, using 5 tie-wraps according the picture below;
