Philips HDD1620 - Exploded View and Service Parts List

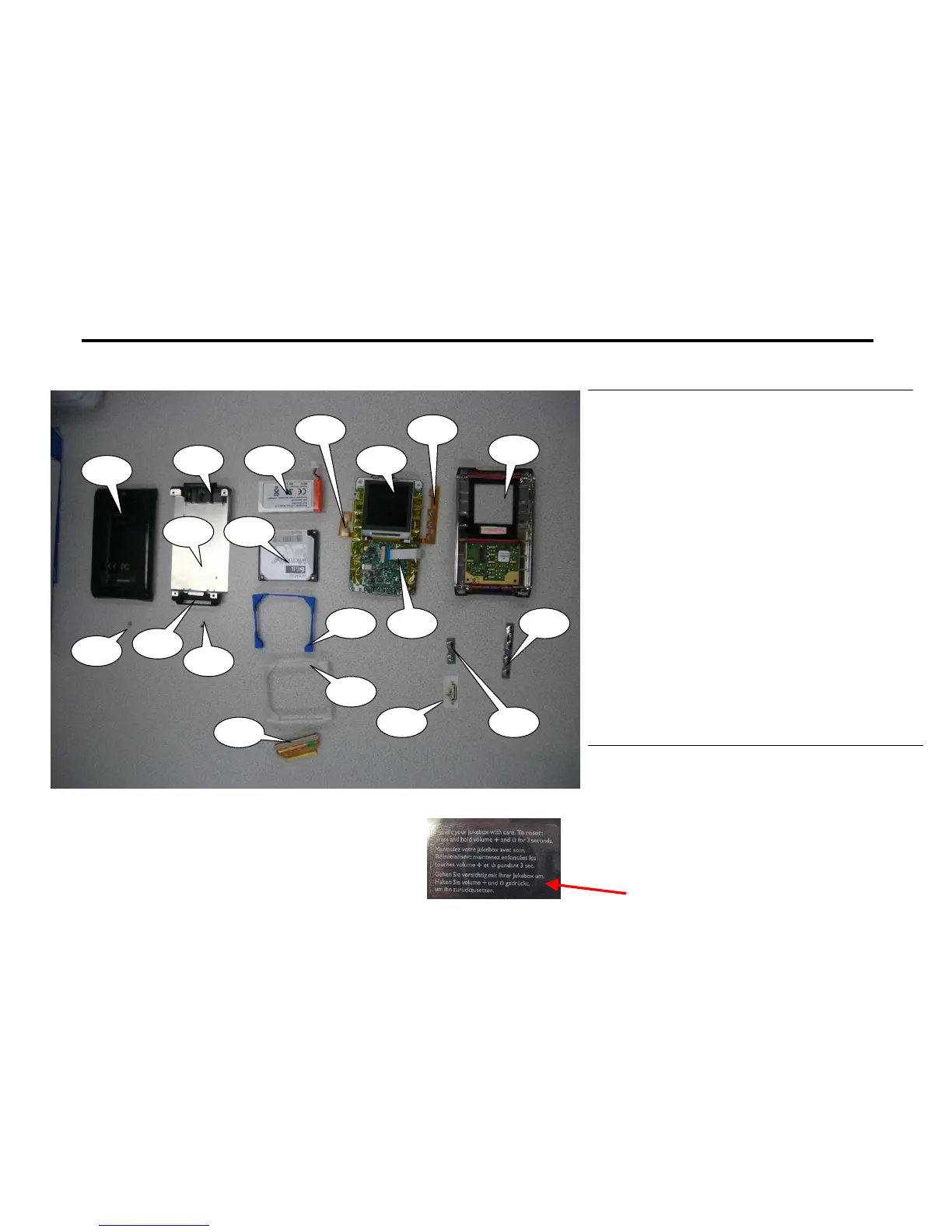

5.0 EXPLODED VIEW AND SERVICE PARTS LIST
101
114
100
105
103
102 106
107
108
109
110
111
117116
118
115
104
112113
MECHANICAL PARTS
100 994000003554 COSMETIC SREW PHOENIX
101 994000003555 BACK CABINET PHOENIX
102 994000003559 AUDIO JACK HOLDER ASSY
103 994000003556 SHIELDING PHOENIX
104 994000003572 CRADLE HOLDER PHOENIX
105 994000003558 SCREW 1.7X5 PHOENIX
106 994000003557 BATTERY PACK PHOENIX
107 282206200084
282206200079
HDD 4GB (HDD1420/00)
HDD 6GB (HDD1620/00/05,
HDD1630/17 & HDD1635/17)
108 994000003563 HDD DAMPER PHOENIX
109 994000003564 HDD HOLDER PHOENIX
110 994000003568 HD FPC PHOENIX
111 994000003565 FFC PHOENIX
112 994000003566 KEY FPC 1 PHOENIX
113 994000003567 KEY FPC 2 PHOENIX
114 994000003569
994000003571
PCBA W/Z RADIO LCD PHOENIX
(HDD1630/17 & HDD1635/17)
PCBA W/O RADIO LCE PHOENIX
(HDD1420/00 & HDD1620/00/05)
115 994000003573 RIGHT SIDE KEYPAD PHOENIX
116 994000003574 HOLD KEY PHOENIX
117 994000003575 LEFT SIDE KEYPAD PHOENIX
118 994000003576 HOUSING TOUCHPAD PHOENIX
MISCELLENEOUS
994000003527 EARPHONE SHE9500
994000003577
994000003578
994000003579
AC ADAPTOR AD7150/00 (FOR /00)
AC ADAPTOR AD7153/17 (FOR /17)
AC ADAPTOR AD715B/05 (FOR /05)
994000003791 CRADLE ASSY PHOENIX (FOR
HDD1635/17 ONLY)
994000003877 CD-PHX-EU (FOR /00 & /05)
994000003878 CD-PHX-US (FOR /17)
994000003876 POUCH FOR PHOENIX
994000005704 CONTROL CASE PAC001 (FOR
HDD1835/17 ONLY)
996500039152 PHOENIX RESET LABEL
