PHILIPS MEDICAL SYSTEMS

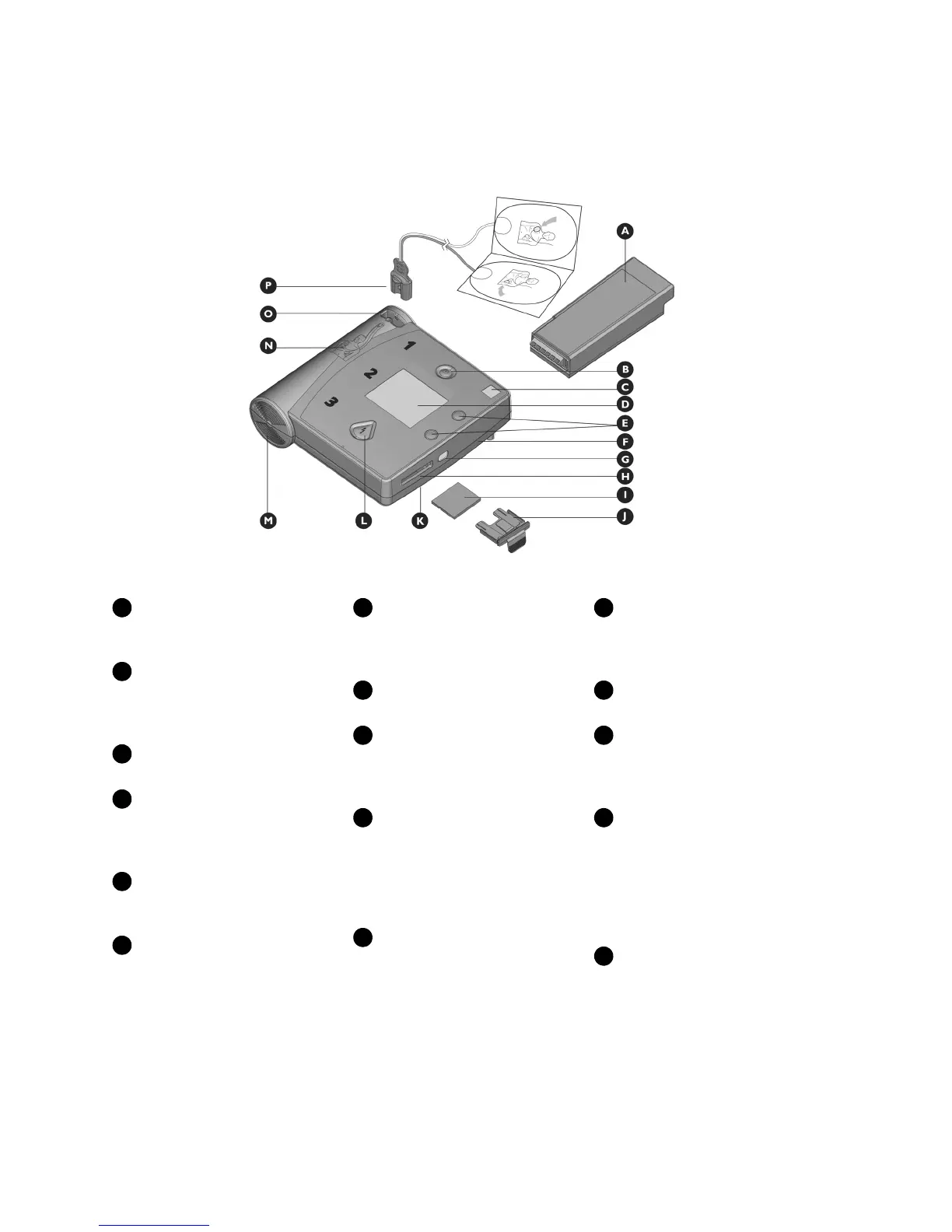

The HeartStart FR2+ Defibrillator
Battery. Standard long-life or
rechargeable battery used to
power the FR2+.
On/Off button. Tu r n s o n t h e
FR2+ and starts voice and text
prompts. Second press turns off
the FR2+.
Status Indicator. Shows you
the readiness status of the FR2+.
Display screen. Displays text
prompts and incident data. The
FR2+ M3860A screen also displays
the patient’s ECG.
Option buttons. Adjust the
contrast of the screen display and
control special functions.
Beeper port. Broadcasts
alert beeps when required. It is
located under the right edge of
the FR2+.
Infrared (IR) communica-
tions port.
A special lens, or
“eye,” used to transfer data
directly to or from another device.
Data card port. Receptacle
for data card tray.
Data card (optional). Used
to store and review information
about an incident, including ECG
and optional voice recording.
Data card tray. Special sleeve
that holds the data card and fits
into the data card port to help seal
the FR2+ against fluids. The tray
should be kept installed in the FR2+
even if no data card is used.
Microphone. Used optionally
to record surrounding audio
during an incident. It is located
under the right edge of the FR2+.
Shock button. Controls
shock delivery. The button flashes
when the HeartStart FR2+ is
ready to deliver a shock.
Speaker. Amplifies voice
prompts during use of the FR2+.
Pads placement diagram.
Illustrates correct placement of
adult pads. Diagrams are also shown
on the defibrillator pads.
Defibrillator pads
connector socket.
Receptacle
for connector of the defibrillator
pads cable. An adjacent LED light
flashes to show socket location
and is covered when connector is
inserted.
Defibrillator pads. Self-
adhesive pads with attached cable
and connector. (Adult pads
shown.)
