Philips HR 8504 - Page 2

1 4322 003 16530 Acc. cover
2 4322 000 67680 Spring
3 4322 009 06730 Dust cover
4 4322 001 94690 Packing ring
5 4322 003 12470 Front cover
6 8836 999 01010 Sydney closable pap. dustbag
8836 999 90010 Sydney 3M-dustbag
4322 004 93250 Sydney cotton dustbag
7 4322 009 06760 Dustbag carrier
8 4322 003 12280 Clamp of dustbag carrier
9 4322 003 12020 Dust compartment sealing
10 4322 005 07370 Turn knob
11 4322 003 12430 Back panel
12 4322 009 07040 Inlett grille + trio fi lter
13 4322 000 37300 Safety trio fi lter
14 4322 003 12500 Switch knobs
15 4322 001 72780 Buffering motor
16 4322 003 12080 Motor disc
17 4322 003 12510 Cord outlet
18 4322 009 06700 Lower housing + wheels
19 8836 932 01210 Exhaust air fi lter
20 4322 009 06910 Air outlet grille
21 4322 009 05350 Reel half spring unit
23 4322 001 72360 Brake tyre
24 4322 009 04800 Reel half contact unit
25 4322 009 05060 Contact ring plate
26 4322 007 11960 Cord set Australia L = 6.3 m
27 4322 007 12150 Cord set Japan/low voltage
28 4322 007 12190 Cord set UK L = 6.3 m
29 4322 007 11920 Cord set 4.8 mm pins L = 8.5 m
29 4322 007 11930 Cord set 4.8 mm pins L = 6.3 m
30 4322 006 01280 Cord set Swiss L = 8.5 m
30 4322 007 12020 Cord set Swiss L = 6.3 m
31 4322 007 11950 Cord set Italy L = 6.3 m
32 4322 003 12240 Dustbag sealing
33 4322 005 07270 Caster
34 4322 003 12560 Cover (opt.)
35 4322 009 06710 Rear wheel
36 4322 006 07220 Speed control 220-240V
37 4322 003 12030 Cord winder lever
41 4322 006 50580 Push button switch
42 4322 003 12010 Motor cover
43 4322 001 72790 Rear motor buffer
44 4322 003 09720 Suspension bracket
45 4322 006 20720 Motor power PCB 230V/50 Hz
46 4322 000 03700 PCB clamp
47 4322 009 06430 Motor 220-240V/50-60Hz
48 4322 000 09750 Spring switch-knob
71 4322 009 05400 Clip metal tube
72 4322 002 22610 Metal tube
73 4322 009 05410 Clip telesc. tube (opt.)
74 4322 004 21050 Telescopic tube (opt.)
75 4322 004 21850 Bend + hose ass’y
76 4322 005 03770 Bend ass’y
77 4322 003 12070 Crevice nozzle
78 4322 004 21160 Small nozzle
79 4322 004 22110 Big nozzle
DFU 4222 000 45280
This product meets the requirements regard-
ing interference suppression on radio and TV.
After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.

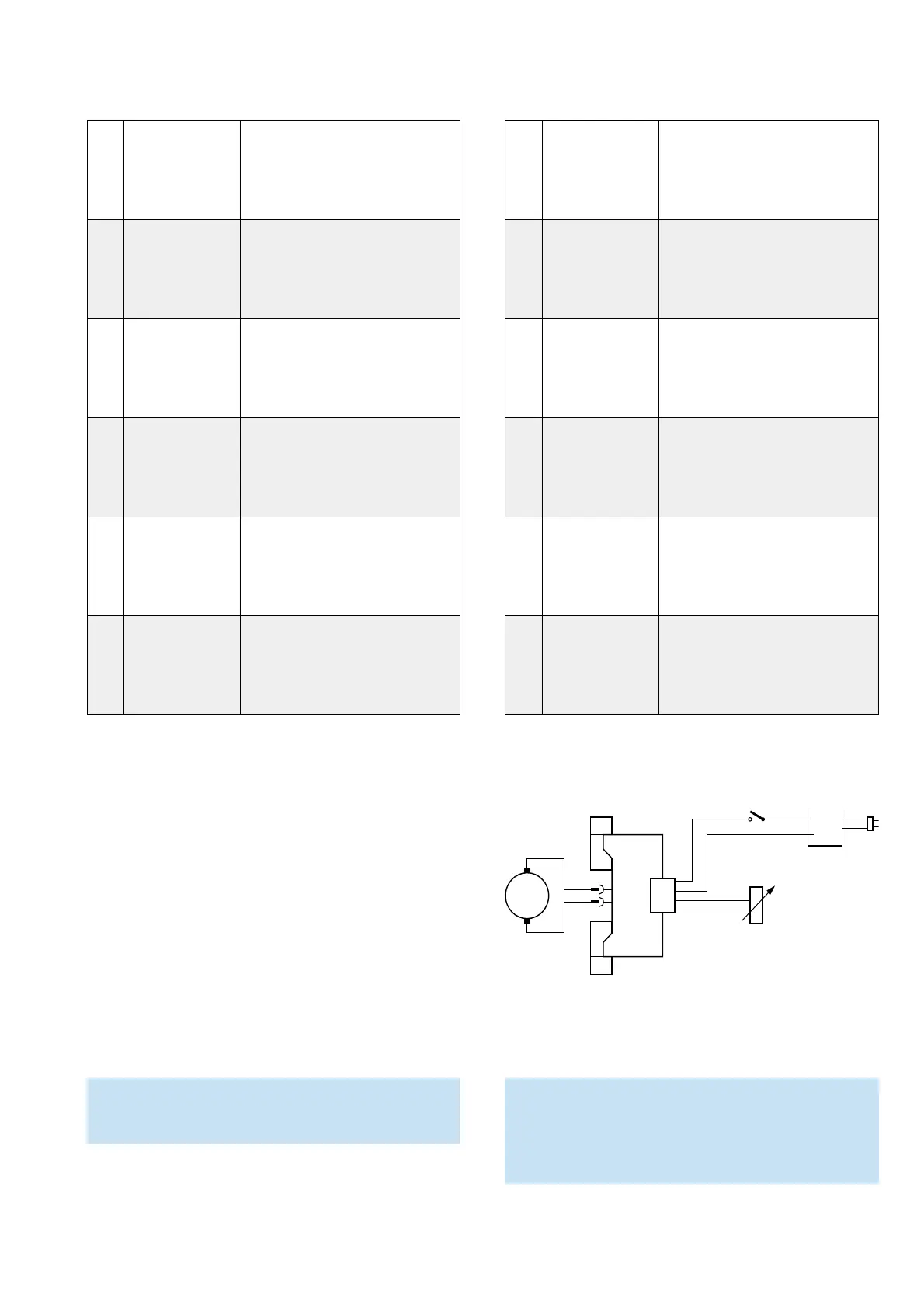

M
MOTOR
POWER
MODULE
ROTARY
POTMETER
CORD WINDER
MAIN
SWITCH
