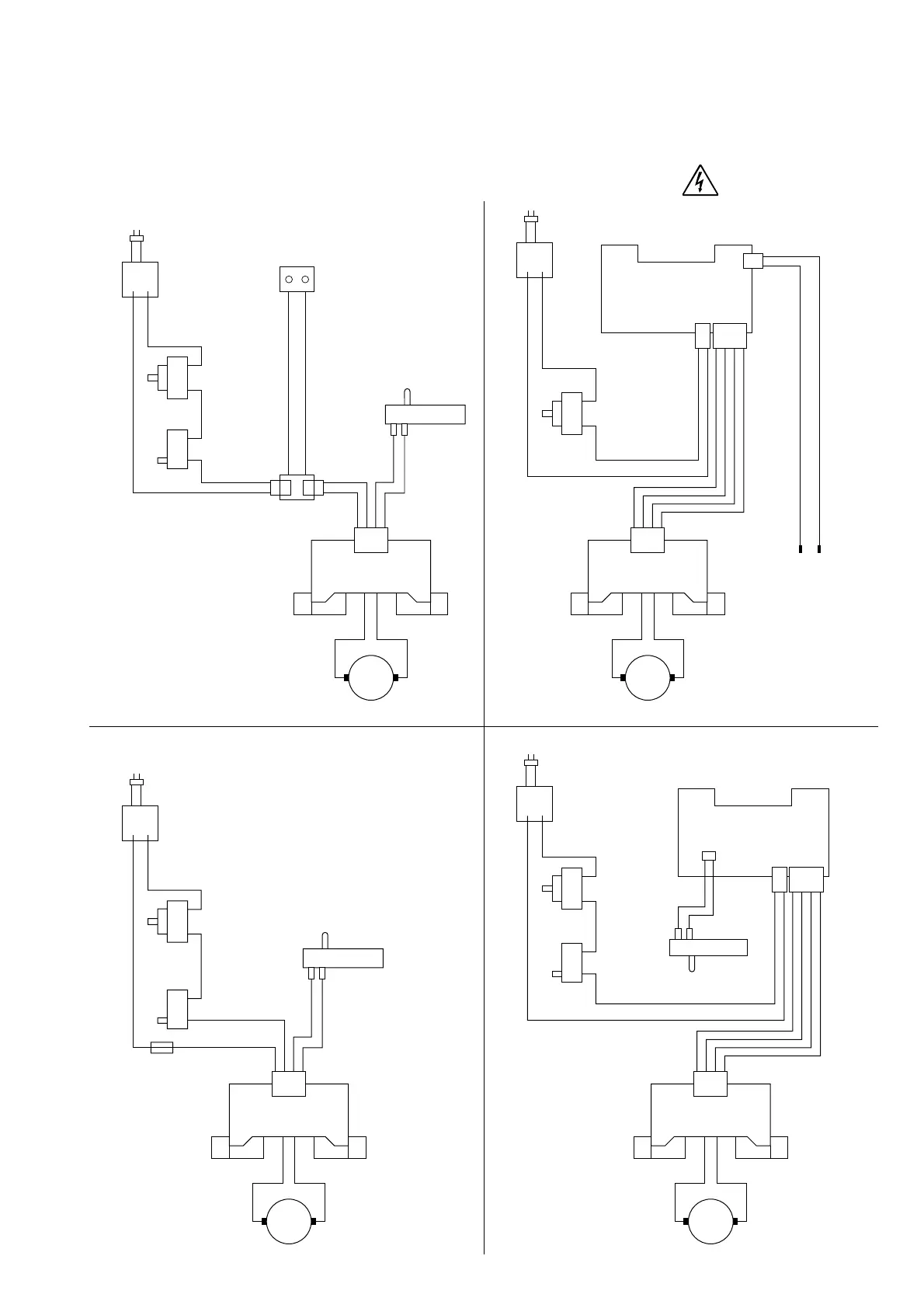

M
MOTOR
POWER
MODULE
CORD WINDER
HR 8907
PARK
AID
SWITCH
MAIN SWITCH
M
MOTOR
POWER
MODULE
CORD WINDER
HR 8901
CONNECTOR
MAX MIN
PARK AID SWITCH
MAIN SWITCH
MAX MIN
FEATURE
MODULE
M
MOTOR
POWER
MODULE
CORD WINDER
HR 8903 HR 8905
MAX MIN
PARK
AID
SWITCH
MAIN SWITCH
BLACKBLACK
BLUE BLUE
BLACKBLACK
M
MOTOR
POWER
MODULE
CORD WINDER
HR 8909
MAIN SWITCH
FEATURE
MODULE
2 WHITE 1 RED
Low voltage version.
−
Item 20 In the dust chamber a hole with a diam. of 6 mm must be
drilled, to cool the cord winder via the cord winder cooling hose,
(position the hole as is in the dust chamber to be replaced).
−
Item 21 In the reel half spring unit a rib must be removed to
connect the cooling hose, just as in the replaced unit.
−
4822 530 21034 Cord winder cooling hose (The correct lenght of
the tube without connectors is 84 mm).
−
Item 55 4822 361 10913 Motor 100 - 110 V
with warning sign.
(Motor metal parts are
under live if switched on).
